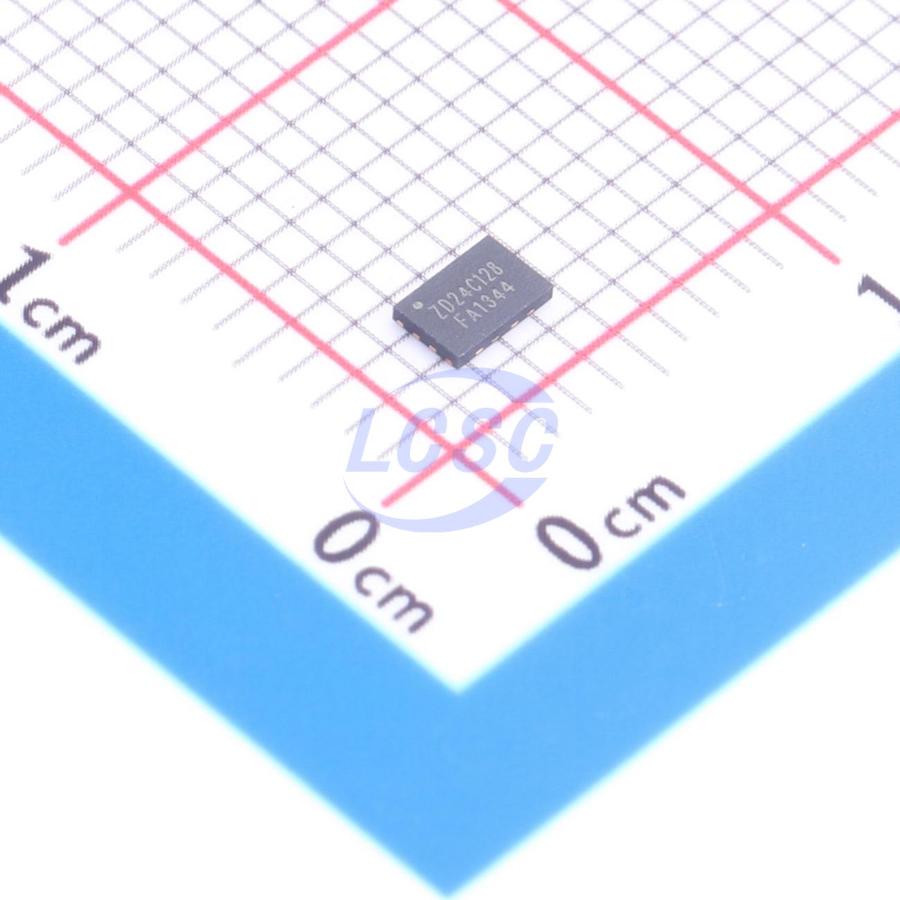

ZD24C128A-MAGMT
₹132.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Built-in power-on reset (POR);Hardware write protection function;Noise suppression function
- Memory Size
- 128Kbit
- Voltage - Supply
- 1.7V~5.5V;0.25mA
- Clock Frequency
- 1MHz
- Access Time
- 0.45us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 0.25uA
- Write Cycle Endurance
- 1 million cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.124 g
Overview
The ZD24C128A provides 131,072 bits of serial EEPROM, organized as 16,384 words of 8 bits each. The device is optimized for a wide range of industrial and commercial applications where low-power and low-voltage operation are essential. The ZD24C128A is available in space-saving 8-pin PDIP, 8-pin SOP, 8-pin TSSOP, and TSOT23-5 packages, and is accessed via a two-wire serial interface. In addition, the ZD24C128A is offered in a 1.7V (1.7V to 5.5V) version.
Key features
- Compatible with all I2C bidirectional data transfer protocols
- Supports 1MHz, 400kHz, 100kHz
- Memory array: 128 Kbits (16 Kbytes) EEPROM, 64-byte page size, with additional writable lockable pages
- Single supply voltage, high-speed: 1 MHz
- Write operations: byte write completes within 5 ms, page write completes within 5 ms, partial page write supported
- Write protect pin for hardware data protection
- Schmitt trigger inputs for noise suppression
- High reliability: 1 million write cycle endurance, 100-year data retention
- Available in 8-pin PDIP/SOP/TSSOP/UDFN/WLCSP packages
- Self-timed write cycle (5 ms max)
- Operating temperature range: -40°C to +85°C
