DIODESDatasheet (PDF)

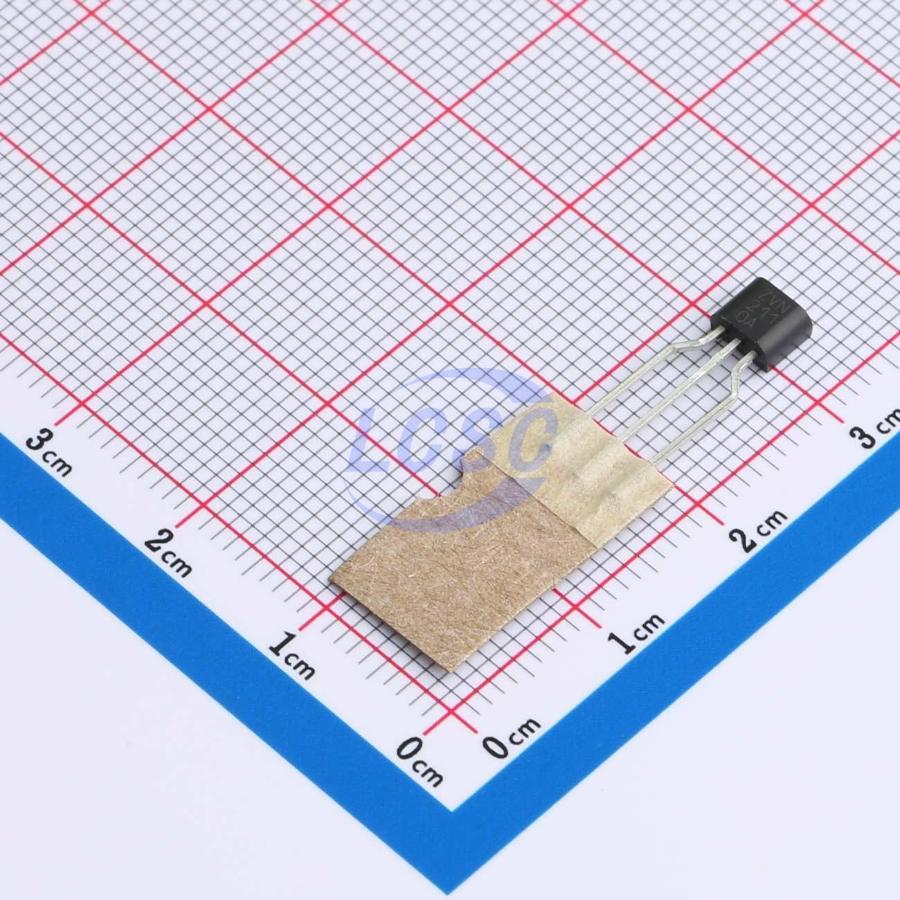

ZVN2110ASTZ
N-Channel 100V 320mA 700mW Through Hole TO-92
TO-92ROHS3 CompliantActive
MOSFET N-CH 100V 320mA TO-92
- Manufacturer
- DIODES
- Manufacturer part #
- ZVN2110ASTZ
- Store part #
- C7417910
- Package / case
- TO-92
- Category
- Single FETs, MOSFETs
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C7417910
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.36 | ₹75.36 |
| 10+ | ₹73.89 | ₹738.90 |
| 30+ | ₹72.84 | ₹2,185.20 |
| 100+ | ₹71.80 | ₹7,180.00 |
1 × ₹75.36
₹75.36
excl. GST
₹88.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per box
ZVN2110ASTZ
₹75.36 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 25pF
- Ciss-Input Capacitance
- 75pF
- Pd - Power Dissipation
- 700mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 320mA
- Reverse Transfer Capacitance (Crss)
- 8pF
- RDS(on)
- 4Ω@10V
- Number
- 1 N-channel
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 2,000 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.23 g
Overview
WCM4616 integrates an N-channel and a P-channel enhancement-mode MOSFET in a single package, suitable for DC-DC converter or level shifting applications. Utilizing advanced trench technology and design, it delivers excellent RDS(ON) with low gate charge. The standard WCM4616 is lead-free and halogen-free.
Applications
- Drivers: relays, solenoids, lamps, hammers
- Power converter circuits
- Load/power switches for portable devices
Key features
- 100 Volt VDS
- RDS(on)=4Ω
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZVN2110A#C2942358DIODES · TO-92 | DIODES | TO-92 | 949 | ₹58.29 · 949 in stock | View |
 | TN0610N3-G#C632579MICROCHIP · TO-92-3 | MICROCHIP | TO-92-3 | 8 | ₹417.42 · 8 in stock | View |
 | 2N70#C5455842XCH · TO-92 | XCH | TO-92 | 970 | ₹16.43 · 970 in stock | View |
 | UK2962L-T9N-B#C2978930UTC · TO-92-3 | UTC | TO-92-3 | 1,135 | ₹23.40 · 1,135 in stock | View |
 | STQ2LN60K3-AP#C3281861ST · TO-92-3 | ST | TO-92-3 | 53 | ₹43.25 · 53 in stock | View |
