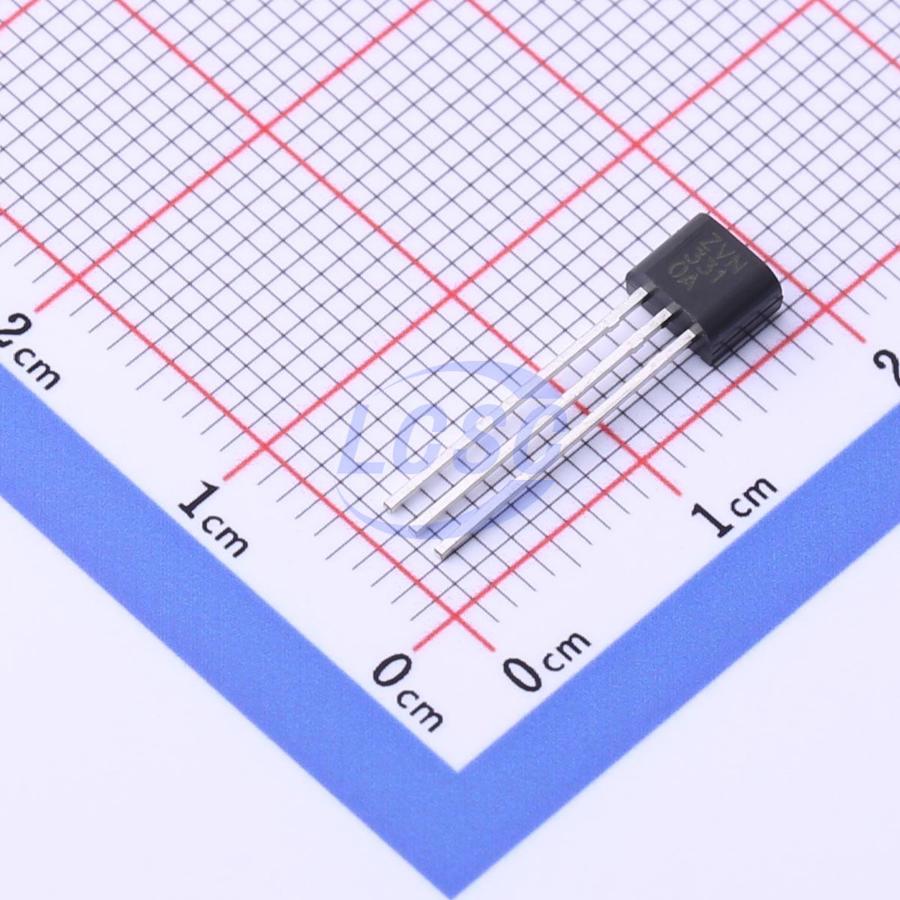

ZVN3310A
N-Channel 100V 200mA 625mW Through Hole TO-92
TO-92ROHS3 CompliantActive
MOSFET N-CH 100V 200mA TO-92
- Manufacturer
- DIODES
- Manufacturer part #
- ZVN3310A
- Store part #
- C2943059
- Package / case
- TO-92
- Category
- Single FETs, MOSFETs
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
328 in stock
#C2943059
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.71 | ₹91.71 |
| 10+ | ₹74.10 | ₹741.00 |
| 30+ | ₹65.20 | ₹1,956.00 |
| 100+ | ₹56.51 | ₹5,651.00 |
| 500+ | ₹51.29 | ₹25,645.00 |
| 1,000+ | ₹48.69 | ₹48,690.00 |
1 × ₹91.71
₹91.71
excl. GST
₹108.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per box
ZVN3310A
₹91.71 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 15pF
- Ciss-Input Capacitance
- 40pF
- Pd - Power Dissipation
- 625mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 200mA
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 10Ω@10V
- Number
- 1 N-channel
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 4,000 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
- Low on-resistance (R<sub>DS(on)</sub>) and figure of merit (FOM) - Ultra-low switching losses - Excellent stability and consistency - Fast switching and soft recovery
Applications
- Power switching applications - hard switching and high-frequency circuits - uninterruptible power supplies - DC-DC converters
Key features
- Drain-Source Voltage (VDS): 100 V
- On-Resistance (RDS(on)): 10 Ω
- E Series
- TO-92 Package Compatible
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZVN2110A#C2942358DIODES · TO-92 | DIODES | TO-92 | 949 | ₹58.29 · 949 in stock | View |
 | ZVN2110ASTZ#C7417910DIODES · TO-92 | DIODES | TO-92 | 13 | ₹75.36 · 13 in stock | View |
| TN0610N3-G#C632579MICROCHIP · TO-92-3 | MICROCHIP | TO-92-3 | 8 | ₹417.42 · 8 in stock | View | |
 | UK2962L-T9N-B#C2978930UTC · TO-92-3 | UTC | TO-92-3 | 1,135 | ₹23.40 · 1,135 in stock | View |
 | ZVN4310A#C2759904DIODES · TO-92-3 | DIODES | TO-92-3 | 173 | ₹129.09 · 173 in stock | View |
