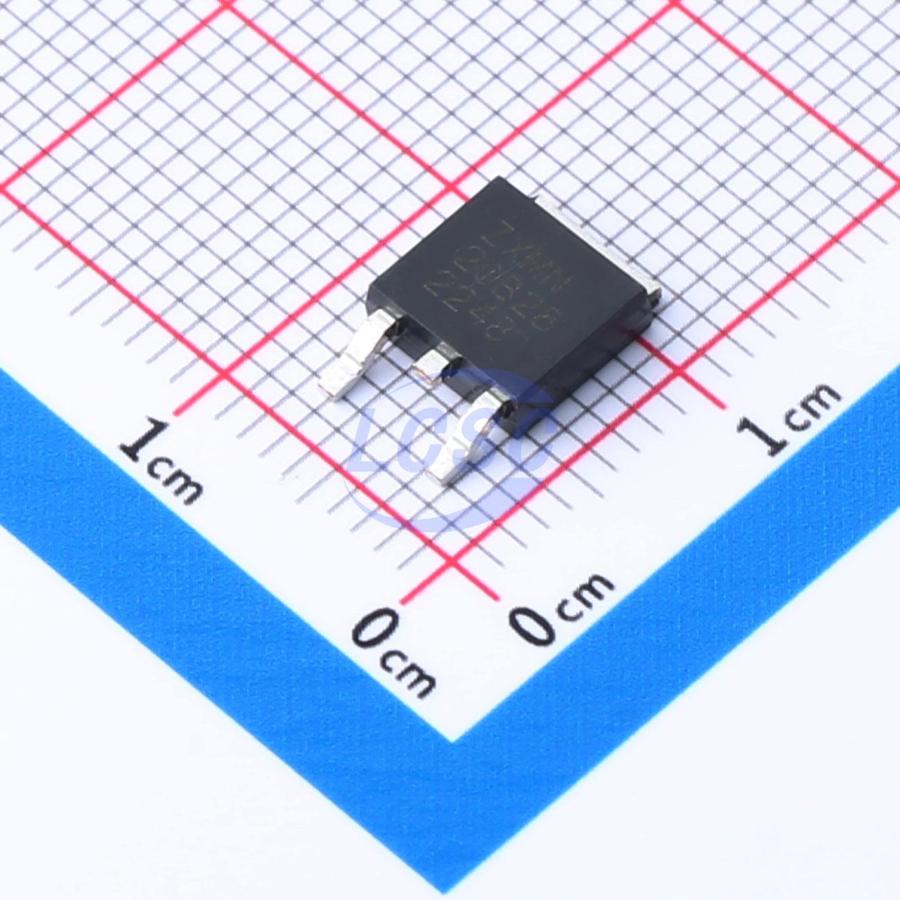

ZXMN20B28KTC
N-Channel 200V 1.5A 2.2W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET N-CH 200V 1.5A TO-252(DPAK)
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMN20B28KTC
- Store part #
- C526794
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C526794
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹141.03 | ₹141.03 |
| 10+ | ₹114.52 | ₹1,145.20 |
| 30+ | ₹101.05 | ₹3,031.50 |
| 100+ | ₹88.01 | ₹8,801.00 |
| 500+ | ₹79.98 | ₹39,990.00 |
| 1,000+ | ₹75.85 | ₹75,850.00 |
1 × ₹141.03
₹141.03
excl. GST
₹166.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ZXMN20B28KTC
₹141.03 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 50pF
- Ciss-Input Capacitance
- 358pF
- Pd - Power Dissipation
- 2.2W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 1.5A
- Reverse Transfer Capacitance (Crss)
- 6.1pF
- RDS(on)
- 750mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.1nC@5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.565 g
Overview
This MOSFET features low on-resistance, fast switching and a high avalanche withstand capability, making it ideal for high-efficiency power management applications.
Applications
- SLIC line drivers for VoIP applications
- Transformer driving switch
- Power management functions
- Motor control
- Uninterrupted power supply
Key features
- 100% Unclamped Inductive Switch (UIS) test in production
- High avalanche energy pulse withstand capability
- Low gate drive voltage (Logic level capable)
- Low input capacitance
- Low on-resistance
- Fast switching speed
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM2007NK3#C7603328TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 265 | ₹24.75 · 265 in stock | View |
 | STD5N20LT4#C435951ST · DPAK | ST | DPAK | 79,125 | ₹58.98 · 79,125 in stock | View |
 | FQD7N20LTM#C463488onsemi · DPAK | onsemi | DPAK | 19 | ₹83.02 · 19 in stock | View |
 | SWD2N60DC#C5151746Samwin · TO-252 | Samwin | TO-252 | 110 | ₹28.92 · 110 in stock | View |
 | SK04N65B#C497674Shikues · TO-252 | Shikues | TO-252 | 2,100 | ₹24.87 · 2,100 in stock | View |
