DIODESDatasheet (PDF)

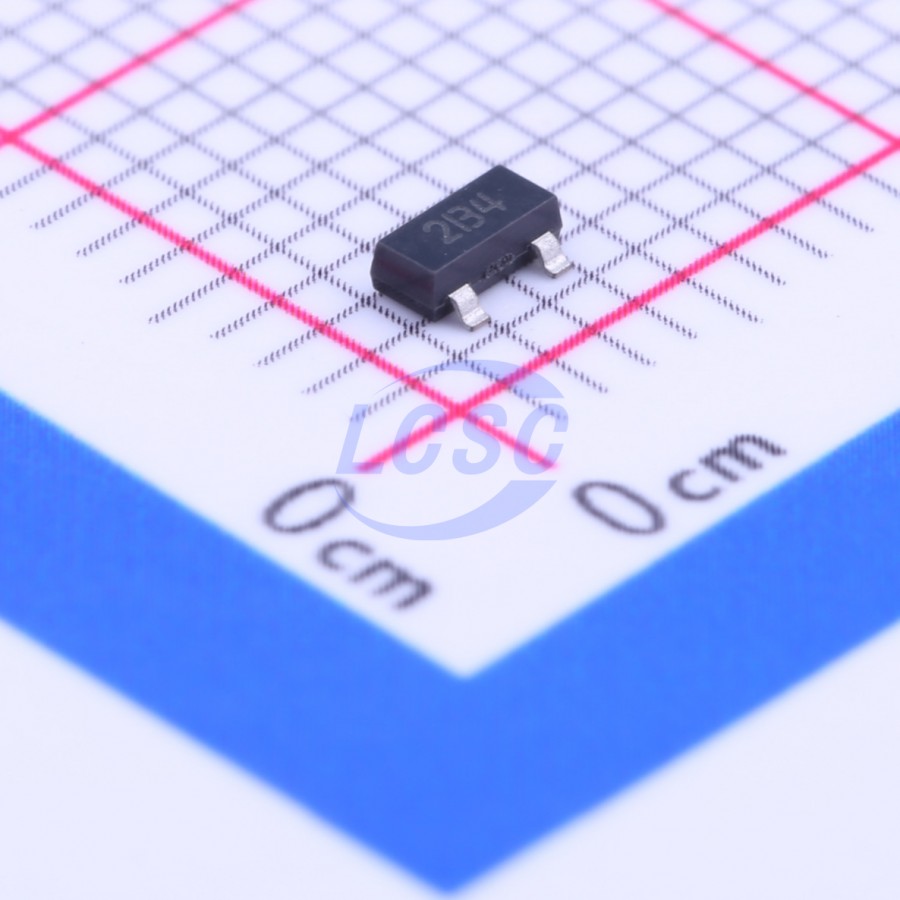

ZXMN2B14FHTA
N-Channel 20V 4.3A 1.5W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 20V 4.3A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMN2B14FHTA
- Store part #
- C144157
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
171 in stock
#C144157
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.92 | ₹81.92 |
| 10+ | ₹68.66 | ₹686.60 |
| 30+ | ₹61.93 | ₹1,857.90 |
| 100+ | ₹55.41 | ₹5,541.00 |
| 500+ | ₹51.49 | ₹25,745.00 |
| 1,000+ | ₹49.32 | ₹49,320.00 |
1 × ₹81.92
₹81.92
excl. GST
₹96.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXMN2B14FHTA
₹81.92 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 145pF
- Ciss-Input Capacitance
- 872pF
- Pd - Power Dissipation
- 1.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 4.3A
- Reverse Transfer Capacitance (Crss)
- 90pF
- RDS(on)
- 100mΩ@1.8V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 60nC@4.5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
This new generation of trench MOSFETs features low onresistance achievable with low gate drive.
Applications
- DC-DC converters
- Power management functions
- Disconnect switches
- Motor control
Key features
- Low on-resistance
- Fast switching speed
- Low gate drive capability
- SOT23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQ2310ES#C3647034Leiditech · SOT-23 | Leiditech | SOT-23 | 2,620 | ₹14.62 · 2,620 in stock | View |
 | PMV20XNEA#C3647036Leiditech · SOT-23 | Leiditech | SOT-23 | 165 | ₹15.35 · 165 in stock | View |
 | STR2N2VH5#C3647038Leiditech · SOT-23 | Leiditech | SOT-23 | 50 | ₹15.33 · 50 in stock | View |
 | DMG2302UQ#C3647039Leiditech · SOT-23 | Leiditech | SOT-23 | 50 | ₹8.37 · 50 in stock | View |
 | SL2314#C5122527Slkor · SOT-23-3L | Slkor | SOT-23-3L | 2,830 | ₹7.67 · 2,830 in stock | View |
