DIODESDatasheet (PDF)

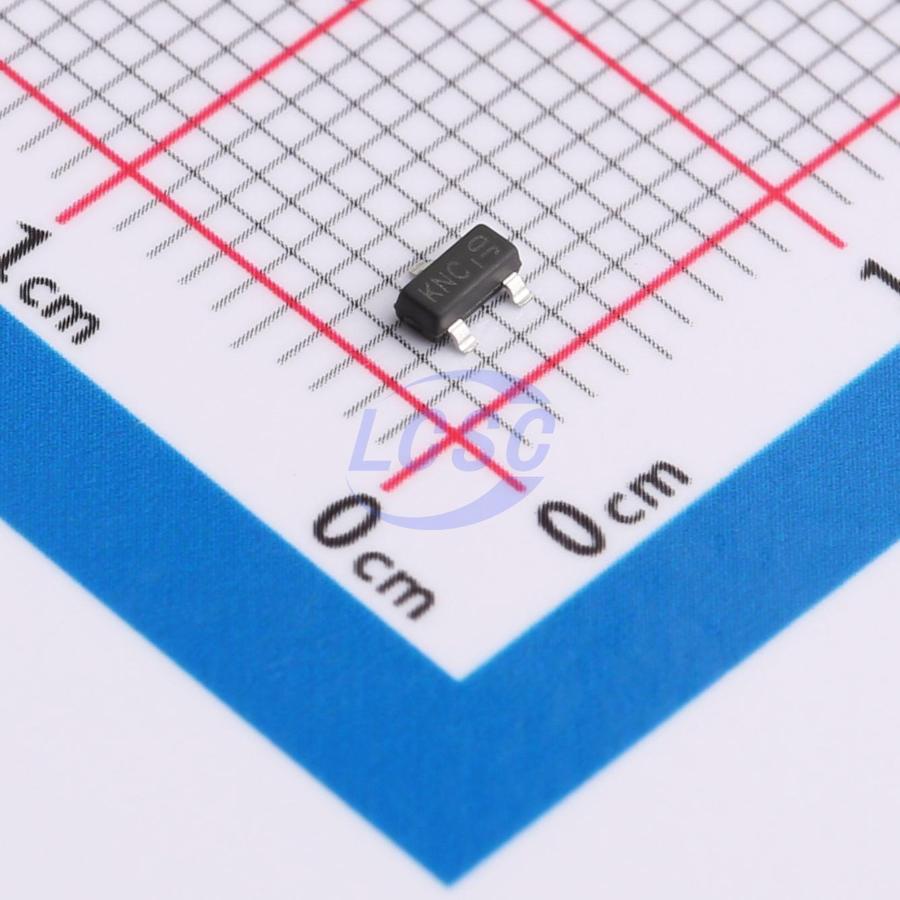

ZXMN2F30FHQTA
N-Channel 20V 4.9A 1.4W Surface Mount SOT-23-3
SOT-23-3ROHS3 CompliantSold out at source
MOSFET N-CH 20V 4.9A SOT-23-3
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMN2F30FHQTA
- Store part #
- C3280151
- Package / case
- SOT-23-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,235 in stock
#C3280151
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.69 | ₹138.45 |
| 50+ | ₹24.42 | ₹1,221.00 |
| 150+ | ₹23.02 | ₹3,453.00 |
| 500+ | ₹21.27 | ₹10,635.00 |
| 3,000+ | ₹20.49 | ₹61,470.00 |
| 6,000+ | ₹20.03 | ₹1,20,180.00 |
5 × ₹27.69
₹138.45
excl. GST
₹163.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXMN2F30FHQTA
₹138.45 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 102pF
- Current - Continuous Drain(Id)
- 4.9A
- Ciss-Input Capacitance
- 452pF
- Pd - Power Dissipation
- 1.4W
- Reverse Transfer Capacitance (Crss)
- 58pF
- RDS(on)
- 45mΩ@4.5V;65mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It complies with the AEC-Q101 standard with PPAP support, making it ideal for the following applications: - LED lighting - Portable device charging - DC-DC converters - Motor control
Applications
- LED lighting
- Portable device charging applications
- DC-DC converters
- Motor control
Key features
- Low on-resistance
- Low input capacitance
- Fast switching speed
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZXMN2F30FHTA#C155325DIODES · SOT-23 | DIODES | SOT-23 | 70 | ₹54.60 · 70 in stock | View |
 | JMTL3404A#C7436808Jiangsu JieJie Microelectronics · SOT-23 | Jiangsu JieJie Microelectronics | SOT-23 | 1,920 | ₹5.54 · 1,920 in stock | View |
 | CMN2808MD#C5203788Cmos · SOT-23-3L | Cmos | SOT-23-3L | 210 | ₹12.09 · 210 in stock | View |
 | SP3404T1#C41354921Siliup · SOT-23-3L | Siliup | SOT-23-3L | 3,120 | ₹7.28 · 3,120 in stock | View |
 | LN2306LT1G#C78724LRC · SOT-23 | LRC | SOT-23 | 30,830 | ₹11.97 · 30,830 in stock | View |
