DIODESDatasheet (PDF)

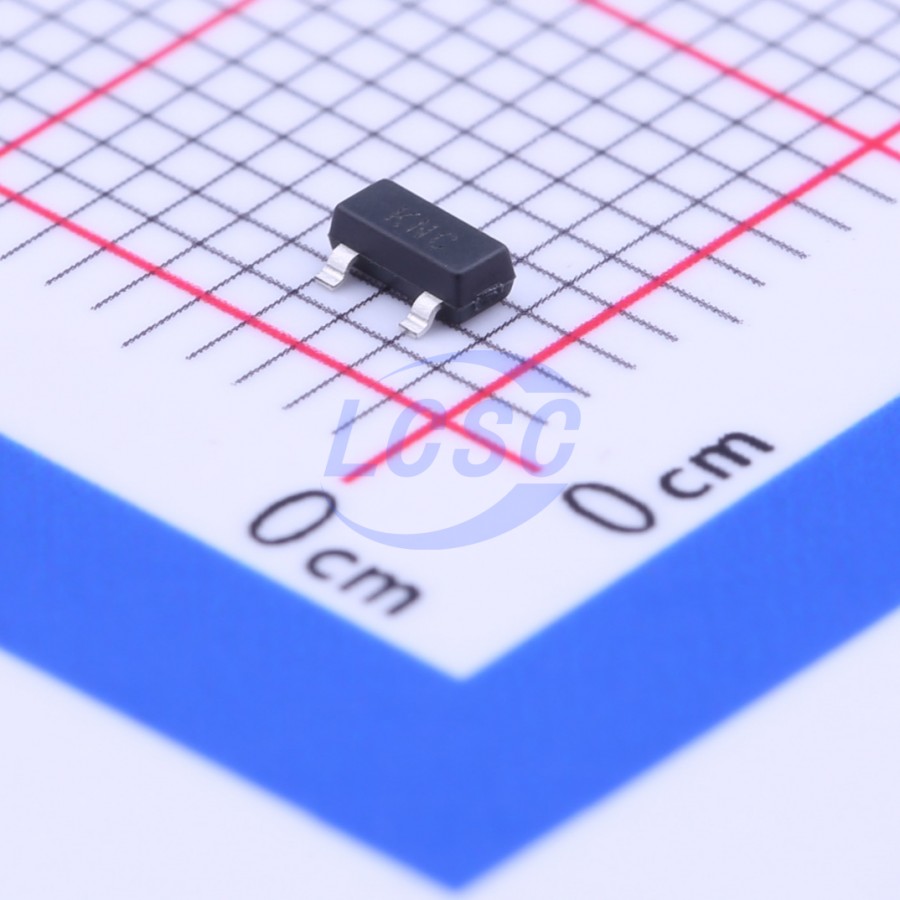

ZXMN2F30FHTA
N-Channel 20V 4.9A 1.4W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 20V 4.9A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMN2F30FHTA
- Store part #
- C155325
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C155325
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹54.60 | ₹273.00 |
| 50+ | ₹45.15 | ₹2,257.50 |
| 150+ | ₹41.11 | ₹6,166.50 |
| 500+ | ₹36.05 | ₹18,025.00 |
| 3,000+ | ₹33.80 | ₹1,01,400.00 |
| 6,000+ | ₹32.44 | ₹1,94,640.00 |
5 × ₹54.60
₹273.00
excl. GST
₹322.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXMN2F30FHTA
₹273.00 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 102pF
- Ciss-Input Capacitance
- 452pF
- Pd - Power Dissipation
- 1.4W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 4.9A
- Reverse Transfer Capacitance (Crss)
- 58pF
- RDS(on)
- 45mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.8nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
This new generation Trench MOSFET features low onresistance achievable with low (2.5V) gate drive.
Applications
- Buck/Boost DC-DC Converters
- Load switching and SMPS
- Charging applications in portable equipment
- Motor Control
- LED Lighting
Key features
- Low on-resistance
- 2.5V gate drive capability
- SOT23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZXMN2F30FHQTA#C3280151DIODES · SOT-23-3 | DIODES | SOT-23-3 | 2,235 | ₹27.69 · 2,235 in stock | View |
 | LN2306LT1G#C78724LRC · SOT-23 | LRC | SOT-23 | 30,830 | ₹11.97 · 30,830 in stock | View |
 | NCE3400AY#C341706NCE · SOT-23-3L | NCE | SOT-23-3L | 5,330 | ₹16.58 · 5,330 in stock | View |
 | AO3400#C2890121TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 2,030 | ₹7.46 · 2,030 in stock | View |
 | FH3400B#C2929009XIN FEI HONG · SOT-23 | XIN FEI HONG | SOT-23 | 540 | ₹6.30 · 540 in stock | View |
