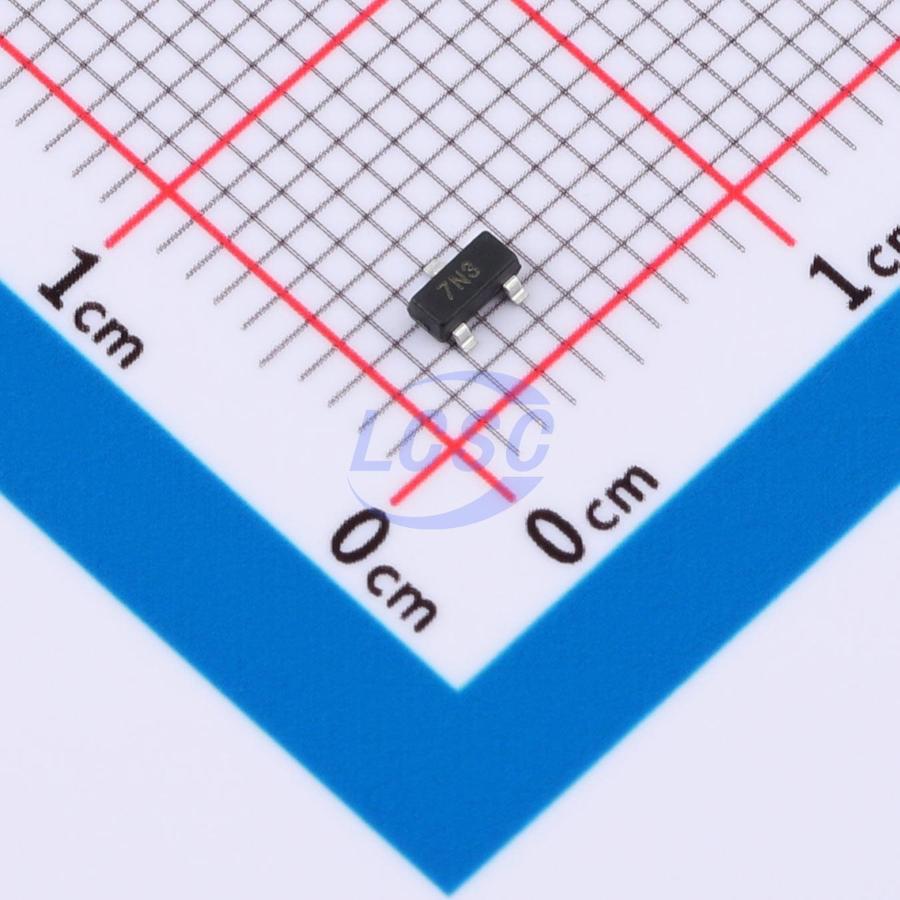

ZXMN3A01FQTA
625mW 30V 2A 180mΩ@10V 1 N-channel N-Channel SOT-23-3 Single FETs, MOSFETs RoHS
SOT-23-3ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMN3A01FQTA
- Store part #
- C19951145
- Package / case
- SOT-23-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C19951145
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹243.96 | ₹243.96 |
| 10+ | ₹240.73 | ₹2,407.30 |
| 30+ | ₹238.38 | ₹7,151.40 |
| 100+ | ₹236.22 | ₹23,622.00 |
1 × ₹243.96
₹243.96
excl. GST
₹287.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXMN3A01FQTA
₹243.96 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 38pF
- Ciss-Input Capacitance
- 190pF
- Pd - Power Dissipation
- 625mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 2A
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 180mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 3.9nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.092 g
Overview
This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- DC-DC Converters
- Power Management Functions
- Motor Control
Key features
- Low On-Resistance
- Fast Switching Speed
- Low Threshold
- Low Gate Drive
- Small Surface Mount Package
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZXMN3A01FTA#C212301DIODES · SOT-23 | DIODES | SOT-23 | 57 | ₹99.93 · 57 in stock | View |
 | PMV60ENEAR#C547263Nexperia · SOT-23 | Nexperia | SOT-23 | 6,175 | ₹48.05 · 6,175 in stock | View |
 | RQ5L020SNTL#C3281895ROHM · TSMT-3 | ROHM | TSMT-3 | 5 | ₹69.10 · 5 in stock | View |
 | SQ2308CES-T1_GE3#C142560VISHAY · SOT-23 | VISHAY | SOT-23 | 12,477 | ₹57.91 · 12,477 in stock | View |
 | CMN3406M#C5203800Cmos · SOT-23 | Cmos | SOT-23 | 120 | ₹4.10 · 120 in stock | View |
