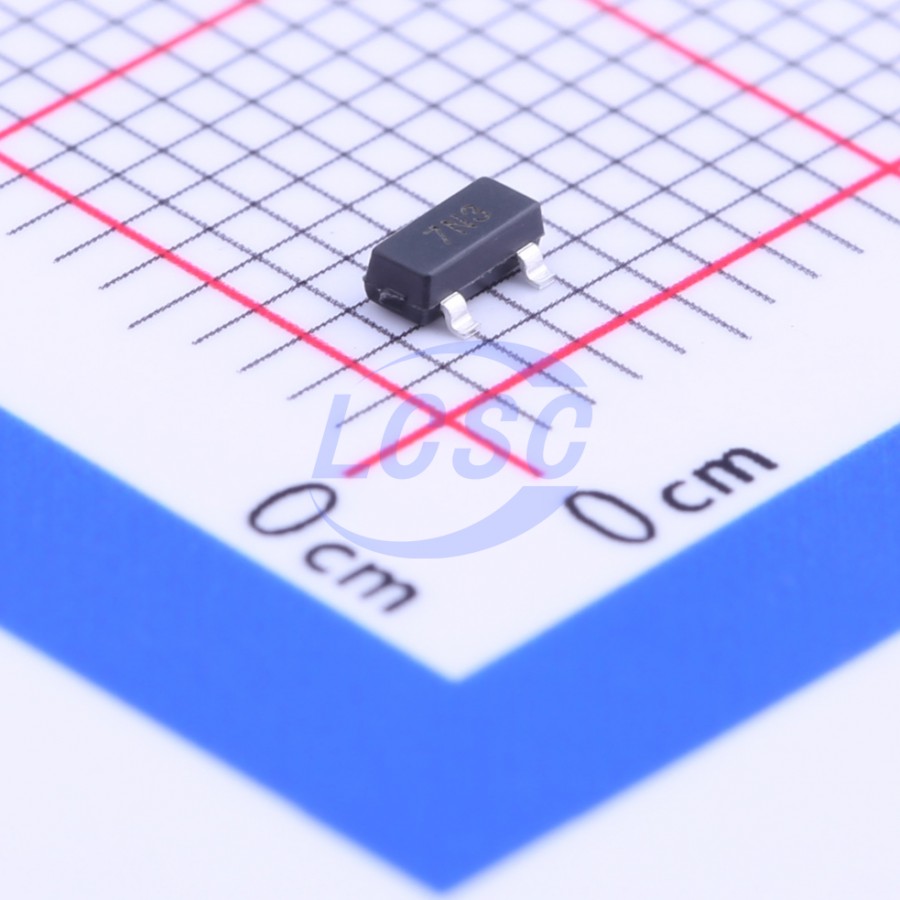

ZXMN3A01FTA
N-Channel 30V 2A 625mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 30V 2A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMN3A01FTA
- Store part #
- C212301
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
57 in stock
#C212301
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.93 | ₹99.93 |
| 10+ | ₹84.47 | ₹844.70 |
| 30+ | ₹76.85 | ₹2,305.50 |
| 100+ | ₹69.02 | ₹6,902.00 |
| 500+ | ₹64.44 | ₹32,220.00 |
| 1,000+ | ₹62.05 | ₹62,050.00 |
1 × ₹99.93
₹99.93
excl. GST
₹117.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXMN3A01FTA
₹99.93 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 38pF
- Ciss-Input Capacitance
- 190pF
- Pd - Power Dissipation
- 625mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 2A
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 120mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 3.9nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- DC-DC Converters
- Power Management Functions
- Motor Control
Key features
- Low On-Resistance
- Fast Switching Speed
- Low Threshold
- Low Gate Drive
- Small Surface Mount Package
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device Qualified to AEC-Q101 Standards for High Reliability
