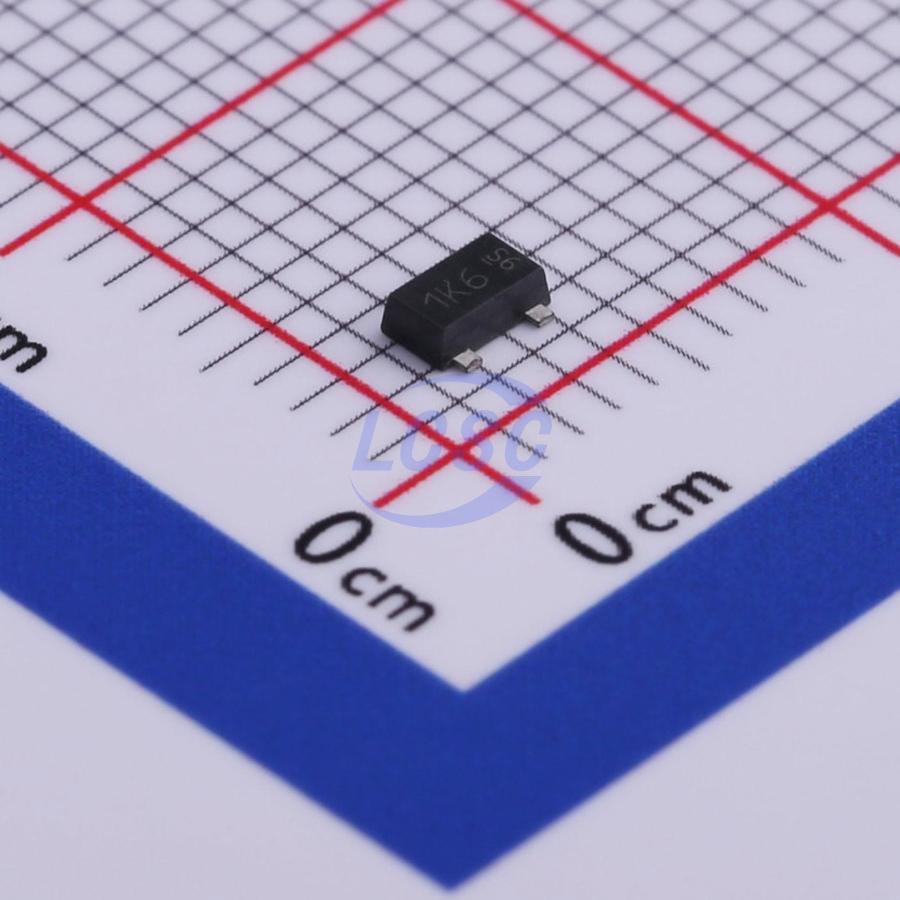

ZXMS6004FFQTA

DIODES™ ZXMS6004FFQ is a self-protected low-side IntellifET™ MOSFET with logic-level input. It integrates logic-level functionality with over-temperature, over-current, over-voltage (active clamp), and ESD protection. The ZXMS6004FFQ is ideal as a general-purpose switch driven by 3.3V or 5V microcontrollers in harsh environments where standard MOSFETs lack sufficient robustness.

Applications

• Ideal for loads with high inrush currents, such as lamps and motors
• All types of resistive, inductive, and capacitive loads in switching applications
• Microcontroller-compatible power switch for 12V and 24V DC applications
• Drop-in replacement for electromechanical relays and discrete circuits
• Linear mode capability — the current limiting protection circuit is designed to deactivate at low VDS to minimize on-state power dissipation. Therefore, the maximum DC operating current is determined by the thermal capability of the package/board combination, not by the protection circuit. This does not affect the product's self-protection capability at low VDS.

Key features

• Compact high power dissipation package
• Low input current
• Logic level inputs (3.3V and 5V)
• Short circuit protection with auto-restart
• Overvoltage protection (active clamp)
• Thermal shutdown with auto-restart
• Overcurrent protection
• Input protection (ESD)
• High continuous current rating
• Fully lead-free and fully RoHS compliant
• Halogen and antimony free, "Green" device
• Suitable for automotive applications requiring specific change control; AEC-Q101 qualified, PPAP documentation available, and manufactured in IATF 16949 certified facilities.
