DIODESDatasheet (PDF)

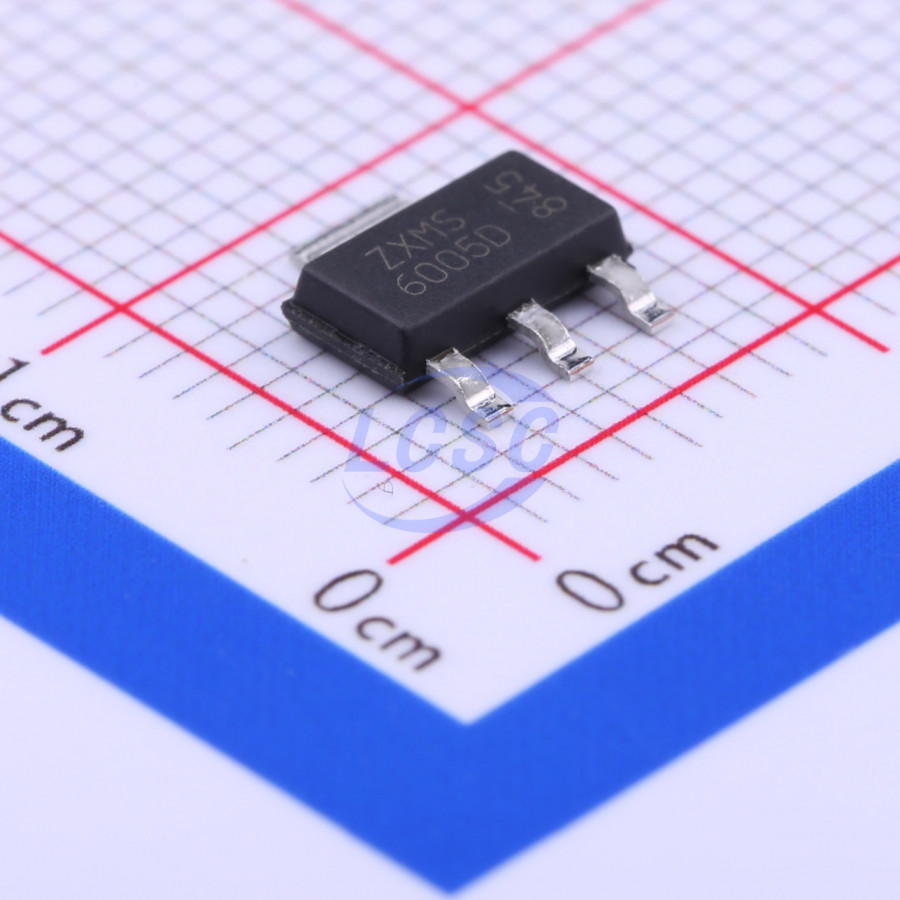

ZXMS6005DGTA
1 Active High 2A Low Side Switch SOT-223-3 Power Distribution Switches, Load Drivers RoHS
SOT-223-3ROHS3 CompliantActive
60V N-CHANNEL SELF-PROTECTED ENHANCEMENT MODE IntelliFET MOSFET
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMS6005DGTA
- Store part #
- C174045
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,647 in stock
#C174045
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹166.51 | ₹166.51 |
| 10+ | ₹140.25 | ₹1,402.50 |
| 30+ | ₹125.92 | ₹3,777.60 |
| 100+ | ₹109.64 | ₹10,964.00 |
| 500+ | ₹95.52 | ₹47,760.00 |
| 1,000+ | ₹92.27 | ₹92,270.00 |
1 × ₹166.51
₹166.51
excl. GST
₹196.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ZXMS6005DGTA
₹166.51 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 2A
- RDS(on)
- 150mΩ
- Operating Voltage
- 60V
- Type
- Low Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.191 g
Overview
The ZXMS6005DG is a self protected low side IntelliFETTM MOSFET with logic level input. It integrates over-temperature, over-current, over-voltage (active clamp) and ESD protected logic level functionality. The ZXMS6005DG is ideal as a general purpose switch driven from 3.3V or 5V microcontrollers in harsh environments where standard MOSFETs are not rugged enough.
Applications
- Lamp Driver
- Motor Driver
- Relay Driver
- Solenoid Driver
Key features
- Compact High Power Dissipation Package
- Low Input Current
- Logic Level Input (3.3V and 5V)
- Short Circuit Protection with Auto Restart
- Over Voltage Protection (Active Clamp)
- Thermal Shutdown with Auto Restart
- Over-current Protection
- Input Protection (ESD)
- High Continuous Current Rating
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- An Automotive-Compliant Part is Available Under Separate Datasheet (ZXMS6005DGQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZXMS6005SGTA#C174042DIODES · SOT-223 | DIODES | SOT-223 | 168 | ₹161.25 · 168 in stock | View |
 | ZXMS6005DGQ-13#C3235503DIODES · SOT-223 | DIODES | SOT-223 | 378 | ₹77.62 · 378 in stock | View |
 | ZXMS6006DGTA#C173990DIODES · SOT-223-3 | DIODES | SOT-223-3 | 82 | ₹109.86 · 82 in stock | View |
 | ZXMS6006DGQ-13#C2157993DIODES · SOT-223 | DIODES | SOT-223 | 23 | ₹209.55 · 23 in stock | View |
 | ZXMS6006SGTA#C2680385DIODES · SOT-223 | DIODES | SOT-223 | 29 | ₹136.61 · 29 in stock | View |
