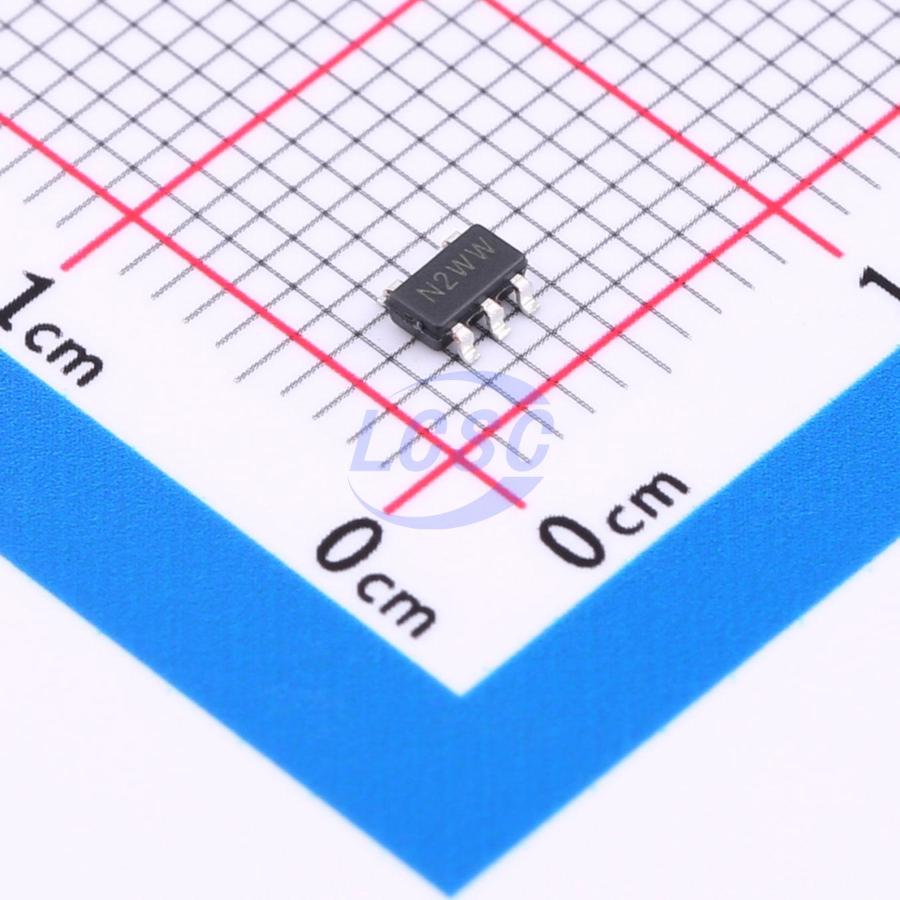

MICROCHIP
24LC02BT-E/OT
2Kbit 400kHz I2C SOT-23-5 Memory RoHS
SOT-23-5ROHS3 CompliantActive
2-Kbit I2C Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,732 in stock
#C2061350
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹145.05 | ₹145.05 |
| 10+ | ₹120.34 | ₹1,203.40 |
| 30+ | ₹106.67 | ₹3,200.10 |
| 100+ | ₹91.29 | ₹9,129.00 |
| 500+ | ₹84.34 | ₹42,170.00 |
| 1,000+ | ₹81.31 | ₹81,310.00 |
1 × ₹145.05
₹145.05
excl. GST
₹171.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
24LC02BT-E/OT
₹145.05 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 2.5V~5.5V;3mA
- Clock Frequency
- 400kHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.023 g
Overview
The 24Xx02 is a 2-Kbit Electrically Erasable PROM. The device is organized as one block of 256 x 8-bit memory with a 2-wire serial interface. Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1 μA and 1 mA, respectively. The 24Xx02 also has a page write capability for up to 8 bytes of data.
Key features
- Single Supply with Operation down to 1.7V for 24AA02 and 24FC02 Devices, 2.5V for 24LC02B Devices
- Low-Power CMOS Technology:
- Read current 1 mA, maximum
- Standby current 1 μA, maximum (Il-temp.)
- 2-Wire Serial Interface, I²C Compatible
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce 100 kHz, 400 kHz and 1 MHz Compatibility
- Page Write Time: 5 ms, Maximum
- Self-Timed Erase/Write Cycle
- 8-Byte Page Write Buffer
- Hardware Write-Protect
- ESD Protection > 4,000V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 Years
- Factory Programming Available
- RoHS Compliant
- Temperature Ranges:
- Industrial (l): -40℃ to +85℃
- Extended (E): -40℃ to +125℃
- Automotive AEC-Q100 Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24AA02E48T-I/OT#C38987MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 2,914 | ₹79.53 · 2,914 in stock | View |
 | 24LC02BHT-I/OT#C2062109MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 87 | ₹118.55 · 87 in stock | View |
| 24AA02HT-I/OT#C2062114MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 80 | ₹48.26 · 80 in stock | View | |
 | 24AA02T-I/OT#C478090MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 3,690 | ₹33.70 · 3,690 in stock | View |
 | 24AA02UIDT-I/OT#C511274MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 852 | ₹79.46 · 852 in stock | View |
