VBsemi ElecDatasheet (PDF)

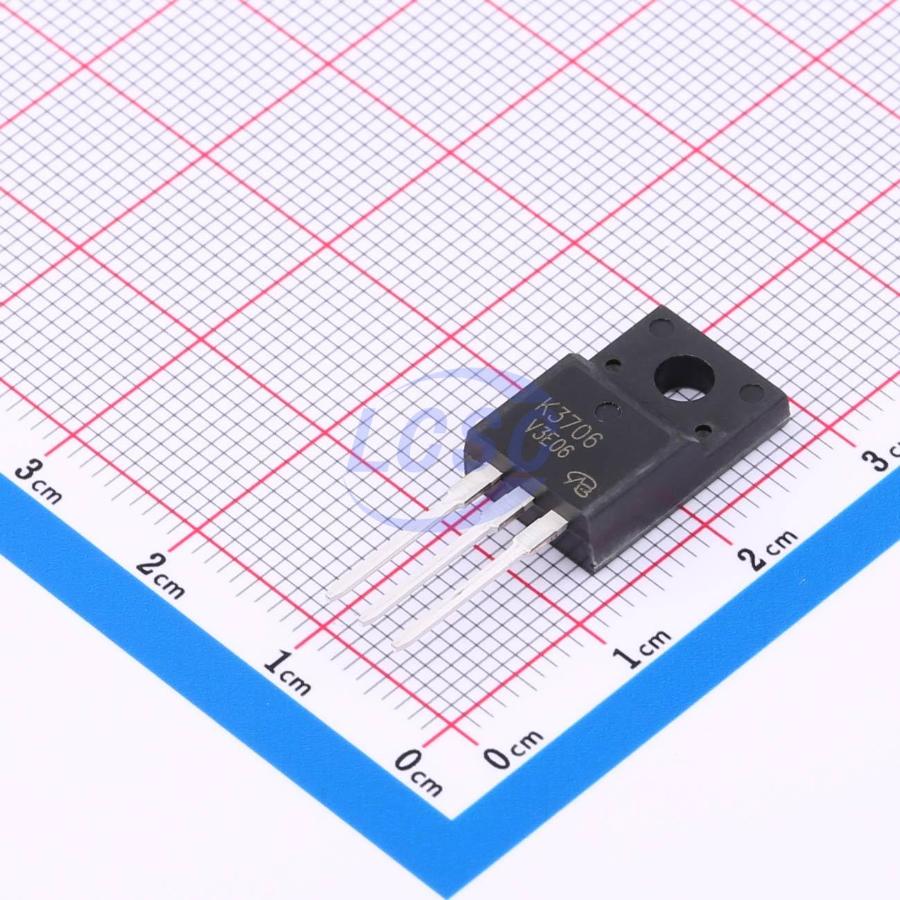

2SK3706-VB
N-Channel 100V 18A 48W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 100V 18A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK3706-VB
- Store part #
- C18794987
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C18794987
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.92 | ₹85.92 |
| 10+ | ₹69.75 | ₹697.50 |
| 50+ | ₹61.76 | ₹3,088.00 |
| 100+ | ₹53.78 | ₹5,378.00 |
| 500+ | ₹48.95 | ₹24,475.00 |
| 1,000+ | ₹46.64 | ₹46,640.00 |
1 × ₹85.92
₹85.92
excl. GST
₹101.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
2SK3706-VB
₹85.92 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 560pF
- Current - Continuous Drain(Id)
- 18A
- Ciss-Input Capacitance
- 1.7nF
- Pd - Power Dissipation
- 48W
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 86mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 72nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.635 g
Overview
Applications
- Server and telecom power supplies
- Switched-mode power supplies (SMPS)
- Power factor correction (PFC)
- Lighting
- High-intensity discharge (HID) lamps
- Fluorescent lamp ballast lighting
- Industrial
Key features
- RoHS COMPLIANT
- Isolated Package
- High Voltage Isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz)
- Sink to Lead Creepage Distance = 4.8 mm
- 175 °C Operating Temperature
- Dynamic dV/dt Rating
- Low Thermal Resistance
- Lead (Pb)-free Available
- N-Channel MOSFET
