VBsemi ElecDatasheet (PDF)

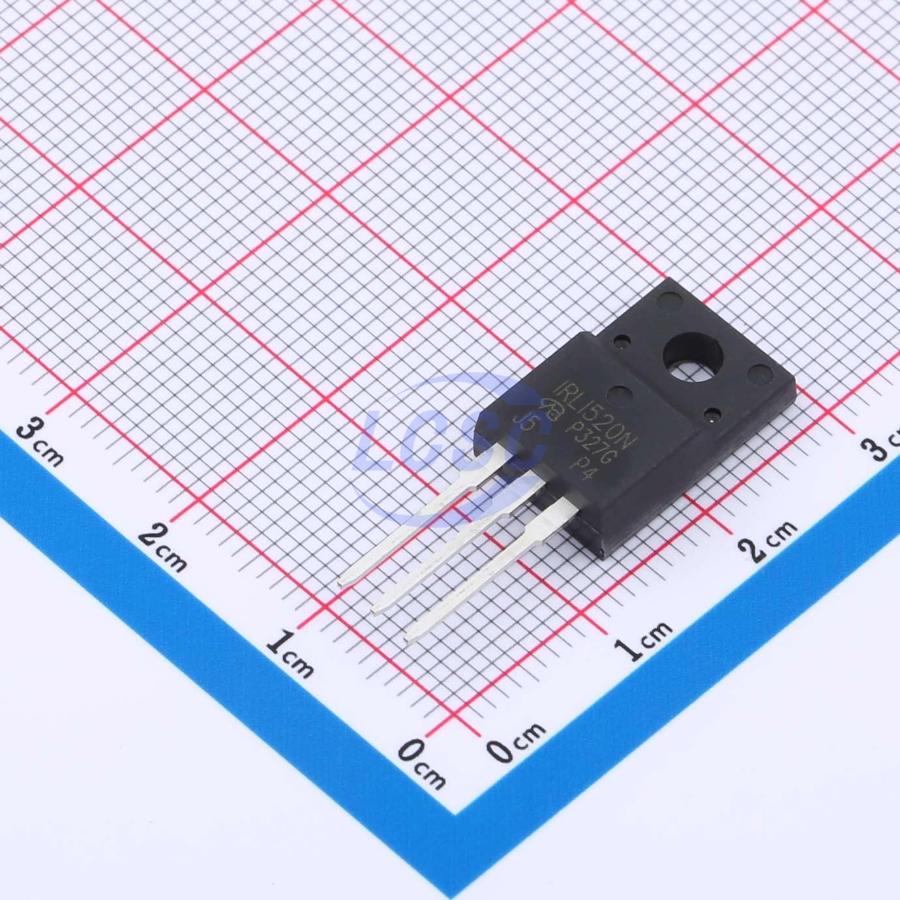

IRLI520NPBF-VB
100V 18A 48W 86mΩ@10V 1 N-channel N-Channel TO-220F Single FETs, MOSFETs
TO-220FRoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRLI520NPBF-VB
- Store part #
- C20417470
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C20417470
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.04 | ₹89.04 |
| 10+ | ₹72.28 | ₹722.80 |
| 50+ | ₹64.01 | ₹3,200.50 |
| 100+ | ₹55.74 | ₹5,574.00 |
| 500+ | ₹50.72 | ₹25,360.00 |
| 1,000+ | ₹48.33 | ₹48,330.00 |
1 × ₹89.04
₹89.04
excl. GST
₹105.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRLI520NPBF-VB
₹89.04 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 560pF
- Current - Continuous Drain(Id)
- 18A
- Ciss-Input Capacitance
- 1.7nF
- Pd - Power Dissipation
- 48W
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 86mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 72nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.7 g
Overview
Key features
- Isolated package
- High-voltage isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz)
- Pin-to-pad creepage distance = 4.8 mm
- Operating temperature 175 °C
- Dynamic dV/dt rating
- Low thermal resistance
- Pb-free version available
- RoHS compliant
