VBsemi ElecDatasheet (PDF)

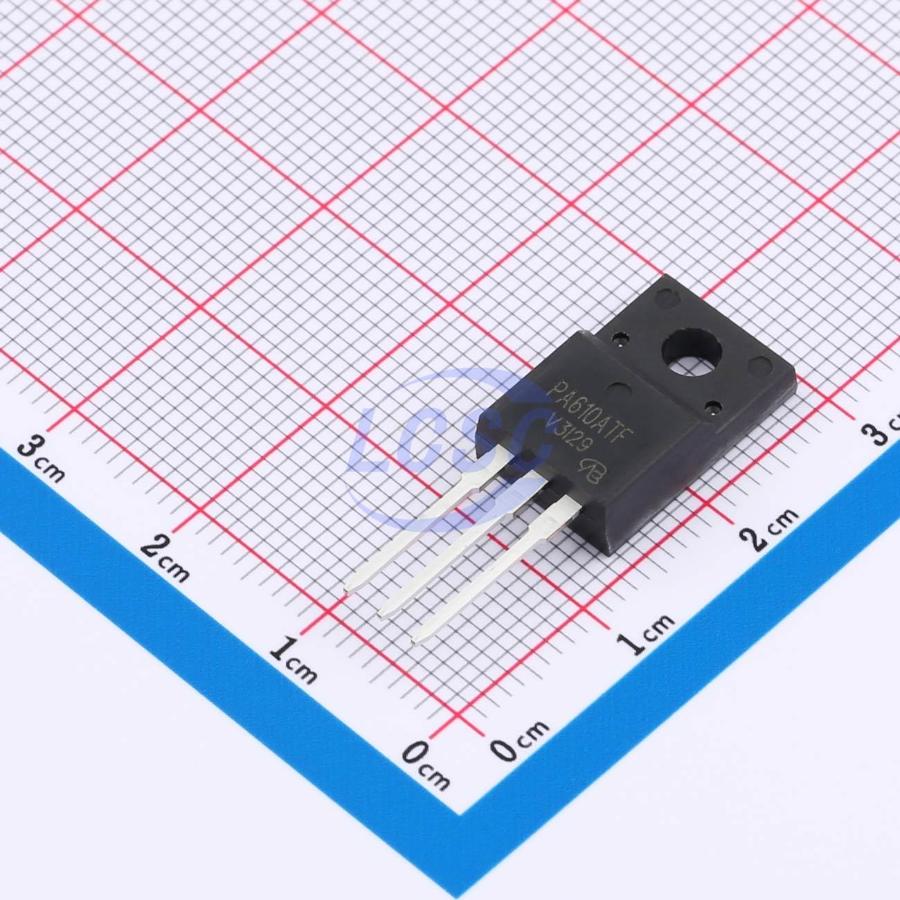

PA610ATF-VB
N-Channel 100V 18A 48W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 100V 18A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- PA610ATF-VB
- Store part #
- C19188220
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C19188220
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.92 | ₹86.92 |
| 10+ | ₹70.56 | ₹705.60 |
| 50+ | ₹62.49 | ₹3,124.50 |
| 100+ | ₹54.41 | ₹5,441.00 |
| 500+ | ₹49.52 | ₹24,760.00 |
| 1,000+ | ₹47.18 | ₹47,180.00 |
1 × ₹86.92
₹86.92
excl. GST
₹102.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
PA610ATF-VB
₹86.92 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 560pF
- Current - Continuous Drain(Id)
- 18A
- Ciss-Input Capacitance
- 1.7nF
- Pd - Power Dissipation
- 48W
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 86mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 72nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.424 g
Overview
Applications
- Direct logic level interface: TTL/CMOS
- Drivers: relays, solenoids, lamps, hammers, displays, memories, transistors, etc.
- Battery-powered systems
- Solid-state relays
Key features
- RoHS COMPLIANT
- Isolated Package
- High Voltage Isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz)
- Sink to Lead Creepage Distance = 4.8 mm
- 175 °C Operating Temperature
- Dynamic dV/dt Rating
- Low Thermal Resistance
- Lead (Pb)-free Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SK3706-VB#C18794987VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 20 | ₹85.92 · 20 in stock | View |
 | STP14NF12FP-VB#C19711357VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 30 | ₹100.57 · 30 in stock | View |
 | IRLI520NPBF-VB#C20417470VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 50 | ₹89.04 · 50 in stock | View |
 | 2SK1292-VB#C20417637VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 2 | ₹82.56 · 2 in stock | View |
 | 2SK3152-VB#C20755077VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 1 | ₹82.56 · 1 in stock | View |
