Nexperia

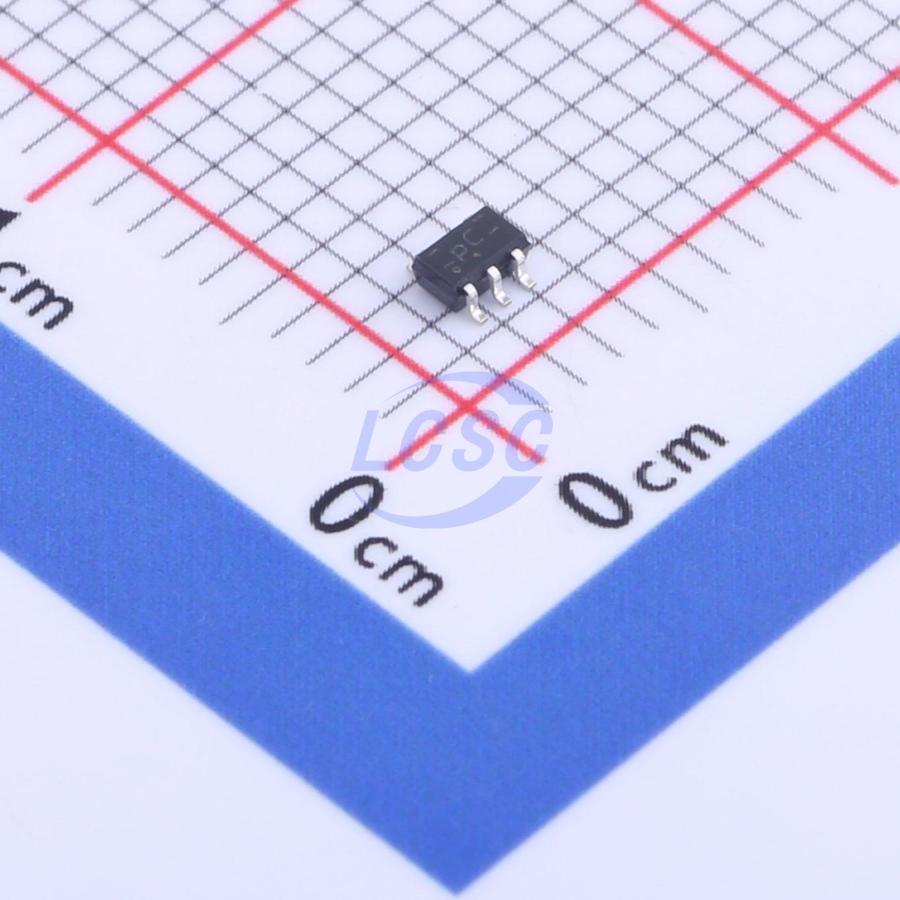

74AUP1G04GW,125

StandardCMOS 800mV~3.6V 5.4ns@3.3V,30pF 500nA 1 TSSOP-5-1.3mm Gates and Inverters RoHS

TSSOP-5-1.3mmROHS3 CompliantActive

Low-power inverter

Manufacturer: Nexperia
Manufacturer part #: 74AUP1G04GW,125
Store part #: C554911
Package / case: TSSOP-5-1.3mm
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,810 in stock

#C554911

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹18.68	₹93.40
50+	₹14.75	₹737.50
150+	₹12.78	₹1,917.00
500+	₹11.31	₹5,655.00
3,000+	₹10.13	₹30,390.00
6,000+	₹9.54	₹57,240.00

Quantity (min 5, multiples of 5)

5 × ₹18.68

₹93.40

excl. GST

₹110.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AUP1G04GW,125

₹93.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

output type: Push-pull
Logic Family: 74AUP
Input Type: StandardCMOS
Voltage - Supply: 800mV~3.6V
Output Logic Level - Low: 100mV;310mV;440mV
Propagation Delay: 5.4ns@3.3V,30pF
Features: Power shutdown protection;Noise suppression function
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1.6V~2V
Input Logic Level - Low: 700mV~900mV
Output Logic Level - High: 1.11V;1.32V;2.05V;1.9V;2.72V;2.6V
Quiescent Current(Iq): 500nA
Number of Channels: 1
Current - Output High(IOH): 4mA
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.039 g

Overview

The 74AUP1G04 is a single inverter. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times across the entire VCC range from 0.8 V to 3.6 V. This device ensures a very low static and dynamic power consumption across the entire VCC range from 0.8 V to 3.6 V. This device is fully specified for partial Power-down applications using IOFF. The l(OFF) circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.

Key features

Wide supply voltage range from 0.8 V to 3.6 V
CMOS low power dissipation
High noise immunity
Complies with JEDEC standards: JESD8-12 (0.8 V to 1.3 V) JESD8-11 (0.9 V to 1.65 V) JESD8-7 (1.65 V to 1.95 V) JESD8-5 (2.3 V to 2.7 V) JESD8C (2.7 V to 3.6 V)
Low static power consumption; l(CC)=0.9 μA (maximum)
Latch-up performance exceeds 100 mA per JESD 78B Class II
Overvoltage tolerant inputs to 3.6 V
Low noise overshoot and undershoot <10% of V(CC)
IOFF circuitry provides partial Power-down mode operation
Multiple package options
ESD protection:
HBM: ANSI/ESDA/JEDEC JS-001 class 3A exceeds 5000 V
CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
