DIODES

74AUP1G04SE-7

Schmitt trigger 800mV~3.6V 5.4ns@3.3V,30pF 500nA 1 SOT-353 Gates and Inverters RoHS

SOT-353ROHS3 CompliantActive

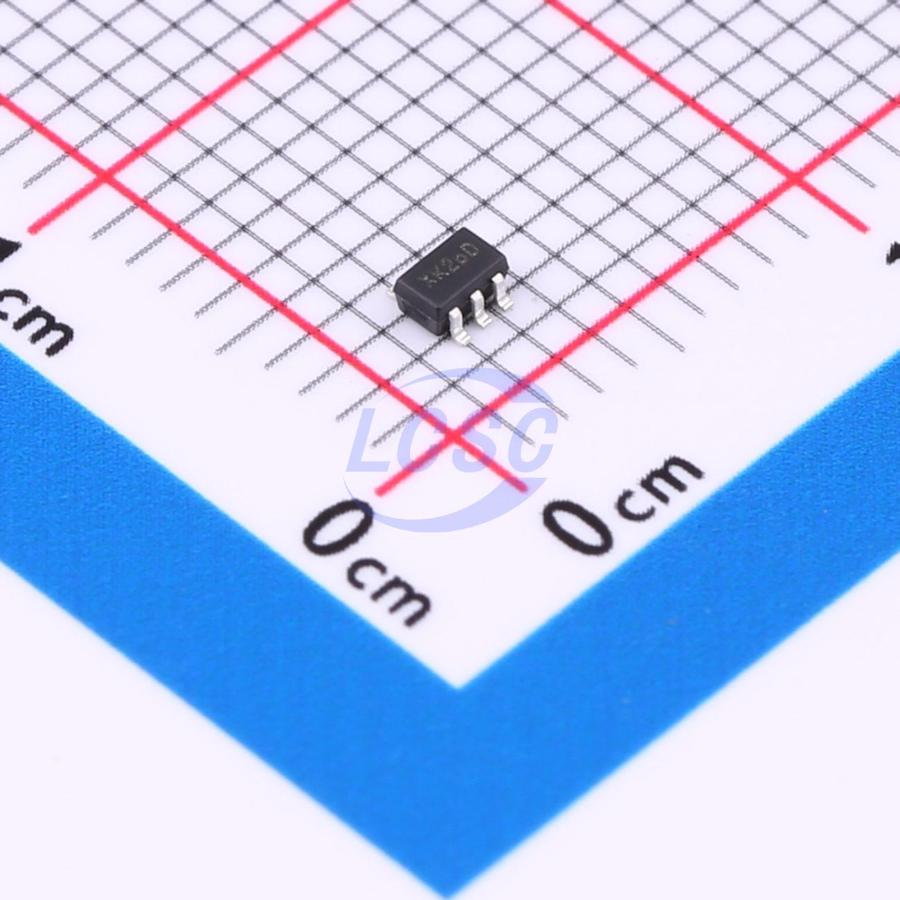

SINGLE INVERTER GATE

Manufacturer: DIODES
Manufacturer part #: 74AUP1G04SE-7
Store part #: C842319
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,655 in stock

#C842319

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹20.24	₹101.20
50+	₹17.83	₹891.50
150+	₹16.80	₹2,520.00
500+	₹15.52	₹7,760.00
3,000+	₹14.94	₹44,820.00
6,000+	₹14.59	₹87,540.00

Quantity (min 5, multiples of 5)

5 × ₹20.24

₹101.20

excl. GST

₹119.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AUP1G04SE-7

₹101.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

output type: Push-pull
Input Type: Schmitt trigger
Logic Family: 74AUP
Voltage - Supply: 800mV~3.6V
Output Logic Level - Low: 450mV
Propagation Delay: 5.4ns@3.3V,30pF
Features: Power shutdown protection;Noise suppression function
Input Logic Level - High: 1.6V~2V
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 700mV~900mV
Output Logic Level - High: 2.55V
Quiescent Current(Iq): 500nA
Number of Channels: 1
Current - Output High(IOH): 4mA
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.048 g

Overview

The Advanced, Ultra Low Power (AUP) CMOS logic family is designed for low power and extended battery life in portable applications. The 74AUP1G04 is a single inverter gate with a standard push-pull output designed for operation over a power supply range of 0.8V to 3.6V. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing damaging current backflow when the device is powered down. The gate performs the positive Boolean function: Y = A(overline)

Applications

Suited for Battery and Low Power Needs Wide array of products such as:
Tablets, E-readers
Cell Phones, Personal Navigation / GPS
MP3 Players, Cameras, Video Recorders
PCs, Ultrabooks, Notebooks, Netbooks
Computer Peripherals, Hard Drives, SSDs, CD/DVD ROMs
TVs, DVDs, DVRs, Set-Top Boxes

Key features

Advanced Ultra Low Power (AUP) CMOS
Supply Voltage Range from 0.8V to 3.6V
±4 mA Output Drive at 3.0V
Low Static Power Consumption Icc < 0.9 μA
Low Dynamic Power Consumption Cpd = 6.1 pF (Typical at 3.6V)
Schmitt Trigger Action at all inputs makes the circuit tolerant for slower input rise and fall time. The hysteresis is typically 250 mV at Vcc = 3.0V
IOFF Supports Partial-Power-Down Mode Operation
ESD Protection Exceeds JESD 22 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
Latch-Up Exceeds 100mA per JESD 78, Class I
Leadless Packages Named per JESD30E
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
