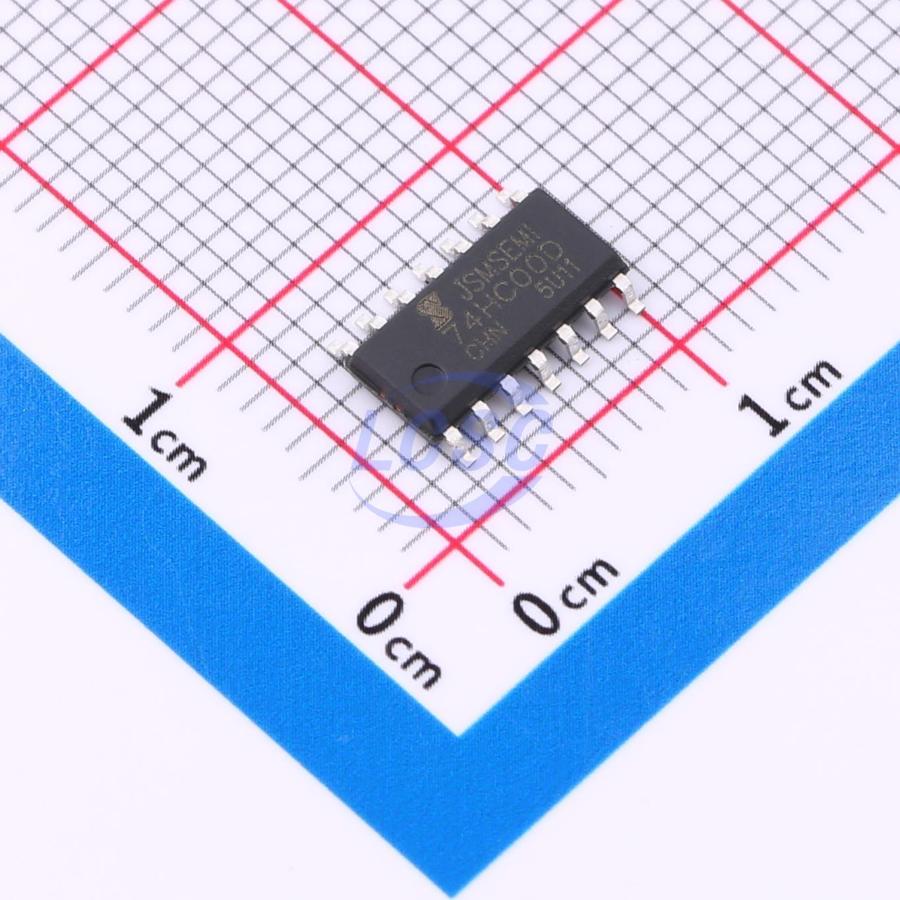

74HC00D-JSM
NAND Gate IC SOP-14
SOP-14ROHS CompliantActive
Low-power 2-input NAND gate integrated circuit
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74HC00D-JSM
- Store part #
- C20606862
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,260 in stock
#C20606862
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.25 | ₹86.25 |
| 50+ | ₹13.64 | ₹682.00 |
| 150+ | ₹11.83 | ₹1,774.50 |
| 500+ | ₹10.48 | ₹5,240.00 |
| 2,500+ | ₹9.39 | ₹23,475.00 |
| 5,000+ | ₹8.85 | ₹44,250.00 |
5 × ₹17.25
₹86.25
excl. GST
₹101.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC00D-JSM
₹86.25 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 18ns@5V,15pF;14ns@5V,15pF
- Output Logic Level - Low
- 100mV;60mV~400mV;70mV~500mV
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Operating Temperature
- 0℃~+60℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V;3.7V~4.4V;5.2V~5.8V
- Quiescent Current(Iq)
- 5.5uA
- Number of Channels
- 4;2
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.199 g
Overview
Applications
- Digital logic drive
- Industrial control applications (e.g., quiz buzzers, programmable equipment)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC132DR-JSM#C53114353JSMSEMI · SOP-14 | JSMSEMI | SOP-14 | 405 | ₹17.19 · 405 in stock | View |
| 74HC00D,653-JSM#C53436305JSMSEMI · SOP-14 | JSMSEMI | SOP-14 | On request | ₹14.75 · 0 in stock | View | |
