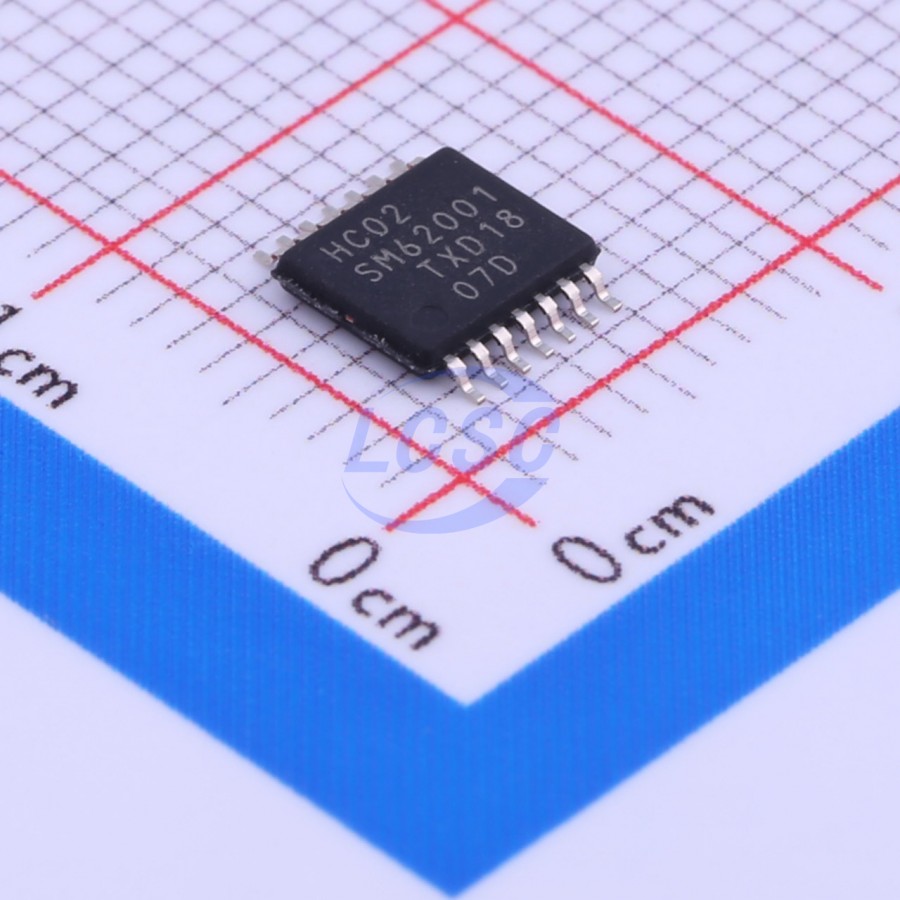

NexperiaDatasheet (PDF)
74HC02PW,118
StandardCMOS 2V~6V 7ns@6V,50pF 2uA TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
Quad 2-input NOR gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC02PW,118
- Store part #
- C113211
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,525 in stock
#C113211
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.30 | ₹176.50 |
| 50+ | ₹27.72 | ₹1,386.00 |
| 150+ | ₹24.46 | ₹3,669.00 |
| 500+ | ₹20.41 | ₹10,205.00 |
| 2,500+ | ₹17.03 | ₹42,575.00 |
| 5,000+ | ₹15.94 | ₹79,700.00 |
5 × ₹35.30
₹176.50
excl. GST
₹208.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC02PW,118
₹176.50 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;400mV
- Propagation Delay
- 7ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 5.9V;5.2V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.23 g
Overview
The 74HC02; 74HCT02 is a quad 2-input NOR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- Digital logic circuits
- Signal processing
- Control systems
- Computer interfaces
- Communication equipment
- Consumer electronics
- Industrial automation
- Test & measurement equipment
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Input levels:
- For 74HC02: CMOS level
- For 74HCT02: TTL level
- Complies with JEDEC standards:
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC02PW(LX)#C22436974lingxingic · TSSOP-14 | lingxingic | TSSOP-14 | 3,780 | ₹11.68 · 3,780 in stock | View |
 | SN74HC02QPWRQ1#C2870746TI · TSSOP-14 | TI | TSSOP-14 | 119 | ₹42.10 · 119 in stock | View |
| MM74HC02MTCX#C904242onsemi · TSSOP-14 | onsemi | TSSOP-14 | 558 | ₹60.06 · 558 in stock | View | |
 | SN74HC02PWR#C484750TI · TSSOP-14 | TI | TSSOP-14 | 715 | ₹45.54 · 715 in stock | View |
 | CJ74HC02BDN#C52145450JSCJ · TSSOP-14 | JSCJ | TSSOP-14 | 4,975 | ₹21.22 · 4,975 in stock | View |
