JSMSEMIDatasheet (PDF)

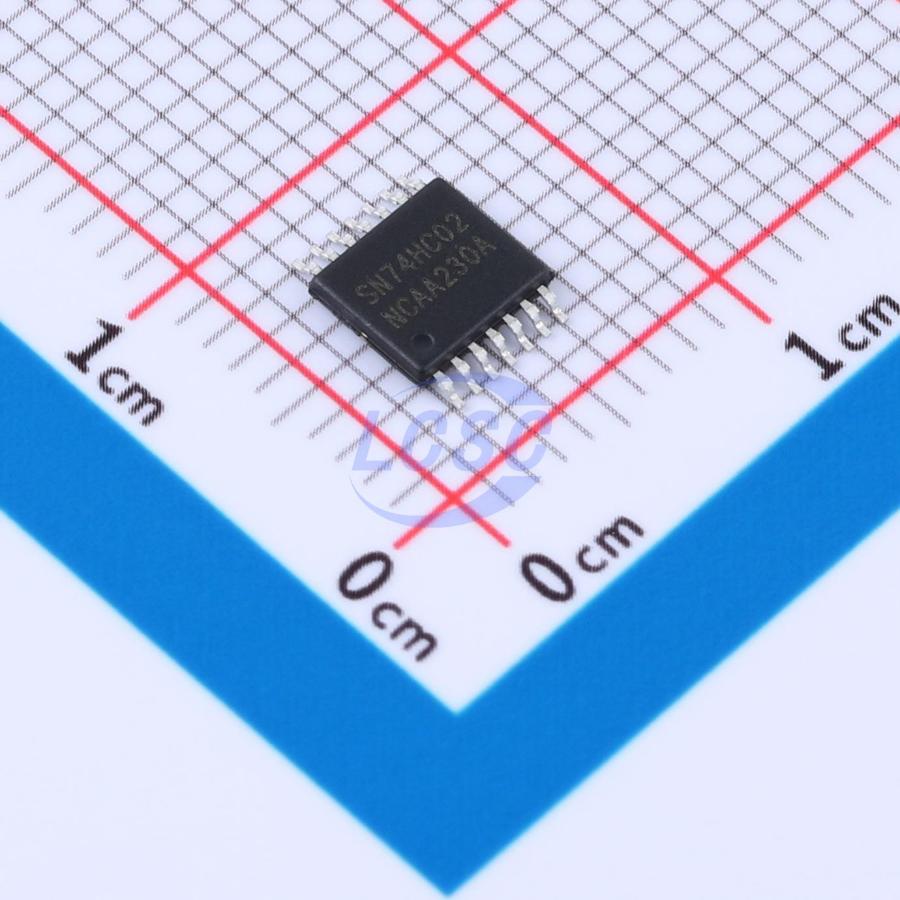

74HC02PW,118-JSM
2V~6V 15ns@6V 2uA TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74HC02PW,118-JSM
- Store part #
- C53114392
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,500 in stock
#C53114392
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.09 | ₹85.45 |
| 50+ | ₹13.60 | ₹680.00 |
| 150+ | ₹11.85 | ₹1,777.50 |
| 500+ | ₹10.54 | ₹5,270.00 |
| 2,500+ | ₹9.49 | ₹23,725.00 |
| 5,000+ | ₹8.97 | ₹44,850.00 |
5 × ₹17.09
₹85.45
excl. GST
₹100.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
74HC02PW,118-JSM
₹85.45 for 5 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;260mV
- Propagation Delay
- 15ns@6V
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V;3.98V;5.48V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 4;2
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.075 g
Overview
74HC/HCT02 is a quad 2-input NOR gate IC. Input clamping diodes are included, enabling the use of current limiting resistors to interface inputs to voltages exceeding Vcc.
Key features
- Input levels: CMOS level for 74HC02; TTL level for 74HCT02
- Operating temperature range: -40℃ ~ +125℃
- Package types: DIP14, SOP14, TSSOP14, DHVQFN14
