Nexperia

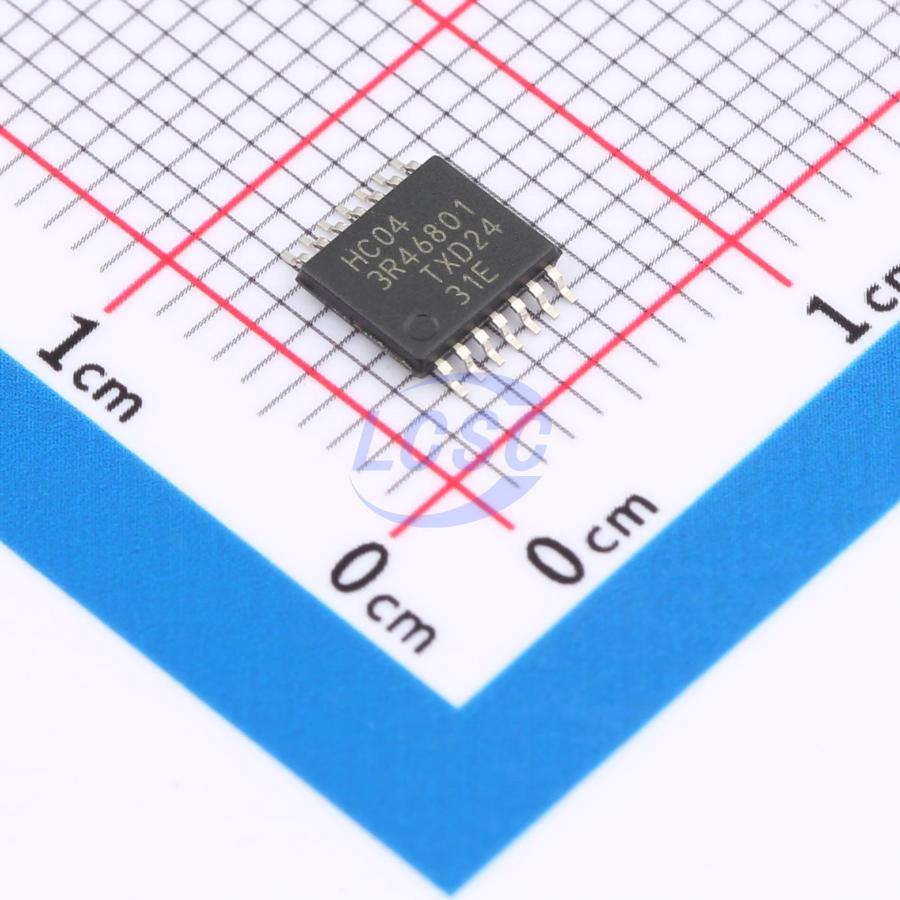

74HC04PW,118

StandardCMOS 2V~6V 14ns@6V,50pF 2uA 6 TSSOP-14 Gates and Inverters RoHS

TSSOP-14ROHS3 CompliantActive

Hex inverter

Manufacturer: Nexperia
Manufacturer part #: 74HC04PW,118
Store part #: C80000
Package / case: TSSOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

41,585 in stock

#C80000

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹17.15	₹85.75
50+	₹13.51	₹675.50
150+	₹11.68	₹1,752.00
500+	₹10.32	₹5,160.00
2,500+	₹8.90	₹22,250.00
5,000+	₹8.36	₹41,800.00

Quantity (min 5, multiples of 5)

5 × ₹17.15

₹85.75

excl. GST

₹101.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

74HC04PW,118

₹85.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

output type: Push-pull
Logic Family: 74HC
Input Type: StandardCMOS
Voltage - Supply: 2V~6V
Output Logic Level - Low: 400mV
Propagation Delay: 14ns@6V,50pF
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1.5V~4.2V
Input Logic Level - Low: 500mV~1.8V
Output Logic Level - High: 3.7V
Quiescent Current(Iq): 2uA
Number of Channels: 6
Current - Output High(IOH): 5.2mA
Current - Output Low(IOL): 5.2mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.23 g

Overview

The 74HC04; 74HCT04 is a hex inverter. The inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Applications

Digital logic circuits
Signal processing
Voltage conversion
Level shifting
Current limiting
Noise suppression
Low-power applications
High-temperature environments
Wide voltage range applications
CMOS and TTL compatible systems
Electronic device protection
ESD protection
Data transmission
Signal inversion

Key features

Wide supply voltage range from 2.0 V to 6.0 V
CMOS low power dissipation
High noise immunity
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
Complies with JEDEC standards:
JESD8C (2.7 V to 3.6 V)
JESD7A (2.0 V to 6.0 V)
Input levels:
For 74HC04: CMOS level
For 74HCT04: TTL level
ESD protection:
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
Multiple package options
Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
74HC04PW-Q100,118#C546501Nexperia · TSSOP-14	Nexperia	TSSOP-14	173	₹37.15 · 173 in stock	View
SN74HC04PW(LX)#C22436976lingxingic · TSSOP-14	lingxingic	TSSOP-14	2,510	₹15.25 · 2,510 in stock	View
MC74HC04ADTR2G#C5589onsemi · TSSOP-14	onsemi	TSSOP-14	5	₹97.02 · 5 in stock	View
74AHCU04PW-Q100J#C554726Nexperia · TSSOP-14	Nexperia	TSSOP-14	27,460	₹32.11 · 27,460 in stock	View
EM74HC04PW#C49188253EnergyMath · TSSOP-14L	EnergyMath	TSSOP-14L	845	₹22.94 · 845 in stock	View
