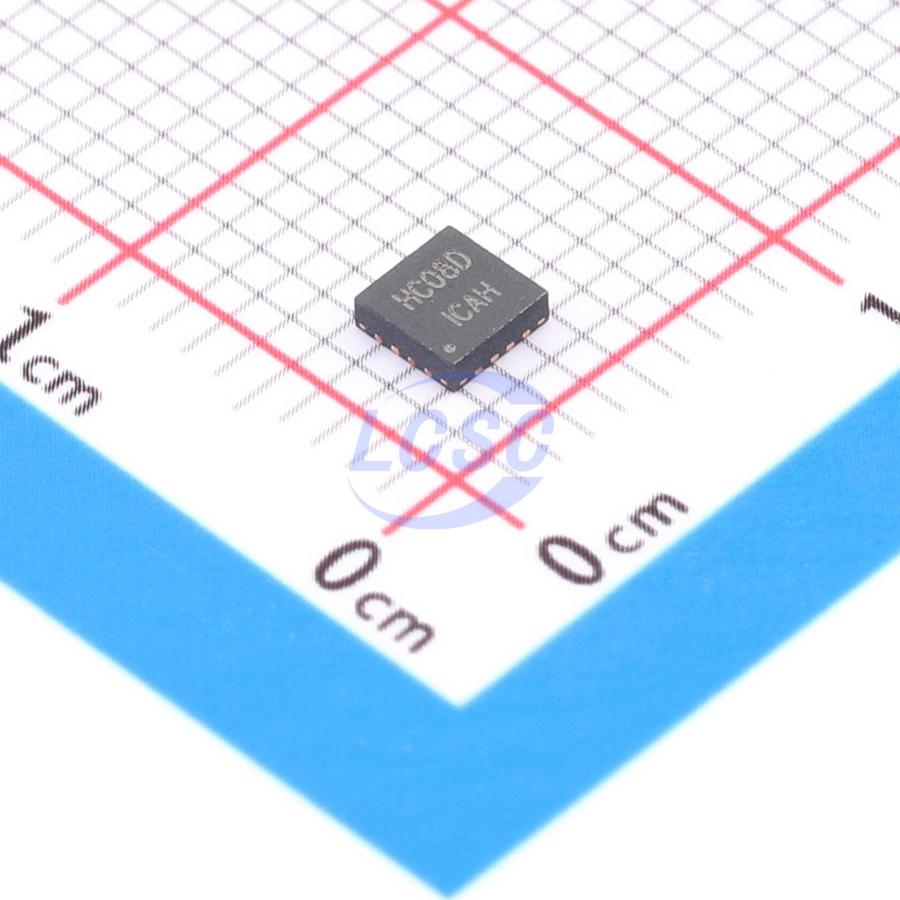

74HC08DLQ/TR
AND Gate IC 4 Channel QFN-16(3x3)
QFN-16(3x3)RoHSActive
Low-power 2-input AND gate integrated circuit
- Manufacturer
- HGSEMI
- Manufacturer part #
- 74HC08DLQ/TR
- Store part #
- C42463784
- Package / case
- QFN-16(3x3)
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,140 in stock
#C42463784
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.54 | ₹87.70 |
| 50+ | ₹13.68 | ₹684.00 |
| 150+ | ₹11.75 | ₹1,762.50 |
| 500+ | ₹10.29 | ₹5,145.00 |
| 2,500+ | ₹9.14 | ₹22,850.00 |
| 5,000+ | ₹8.56 | ₹42,800.00 |
5 × ₹17.54
₹87.70
excl. GST
₹103.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
74HC08DLQ/TR
₹87.70 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 400mV
- Propagation Delay
- 18ns@5V,15pF
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 5.5uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.676 g
Overview
The 74HC08D is a low-power 2-input AND gate IC designed with advanced CMOS technology. It integrates four independent 2-input AND gates, each featuring a buffered push-pull output for strong noise immunity and drive capability. Its logic function and standard pinout are compatible with the 54/74LS series logic gates.
Applications
- Digital logic driving
- Industrial control applications
Key features
- Low input current: ≤ 1 μA
- Low quiescent current: Icc ≤ 5.5 μA @ VCC=6V, TA=25°C
- Wide operating voltage range: 2.0V ~ 6.0V
- Package types: DIP-14, SOP-14, TSSOP-14, QFN-16 3×3
