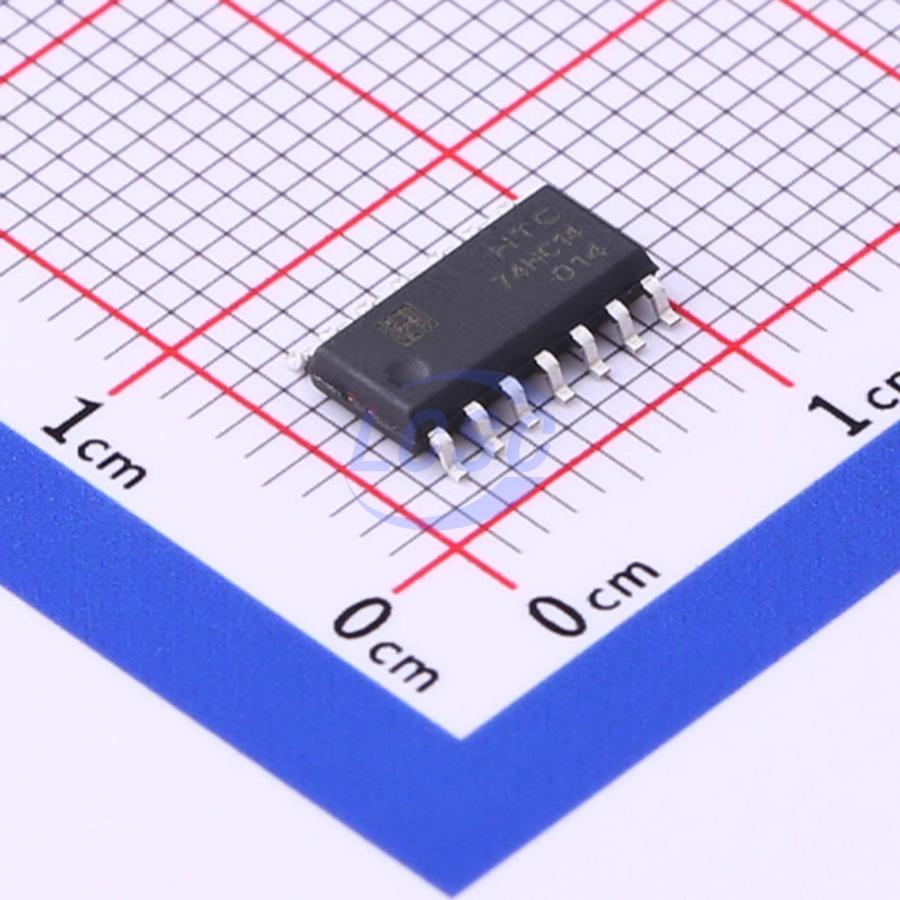

74HC14D
Schmitt trigger 2V~6V 11ns@6V,50pF 2uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS CompliantActive
Hex Schmitt Trigger Inverters
- Manufacturer
- HTC
- Manufacturer part #
- 74HC14D
- Store part #
- C699447
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,790 in stock
#C699447
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.61 | ₹208.05 |
| 50+ | ₹32.25 | ₹1,612.50 |
| 150+ | ₹28.25 | ₹4,237.50 |
| 500+ | ₹23.25 | ₹11,625.00 |
| 2,500+ | ₹21.02 | ₹52,550.00 |
| 5,000+ | ₹19.69 | ₹98,450.00 |
5 × ₹41.61
₹208.05
excl. GST
₹245.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC14D
₹208.05 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74HC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 260mV
- Propagation Delay
- 11ns@6V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V;3.98V;5.48V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
The 74HC14 types consist of six inverter circuits with Schmitt-trigger inputs. They perform the Boolean function Y = A̅ in positive logic. Each of the six inverters is a single stage.
Applications
- Microwave Oven
- Mice
- Printers
- AC Inverter Drives
- UPS
- AC Servo Drives
- Other Motor Drives
Key features
- Wide Operating Voltage Range of 2.0V to 6.0V
- Outputs Can Drive up to 10 LSTTL Loads
- Low Power Consumption, 20μA Maximum ICC
- Typical tpd: 11ns
- ±4mA Output Drive at 5.0V
- Low Input Current of 1μA Maximum
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC14-HXY#C7427350HXY MOSFET · SOP-14 | HXY MOSFET | SOP-14 | 10 | ₹17.27 · 10 in stock | View |
 | RS6G14XP#C2974610RUNIC · SOP-14 | RUNIC | SOP-14 | 770 | ₹36.13 · 770 in stock | View |
 | 74HC14#C5356103JSMSEMI · SOP-14 | JSMSEMI | SOP-14 | 15,960 | ₹12.98 · 15,960 in stock | View |
 | MM74HC14MX#C232776onsemi · SOIC-14 | onsemi | SOIC-14 | 153 | ₹62.18 · 153 in stock | View |
 | 74HC14M/TR#C507199HGSEMI · SOP-14 | HGSEMI | SOP-14 | 2,265 | ₹20.41 · 2,265 in stock | View |
