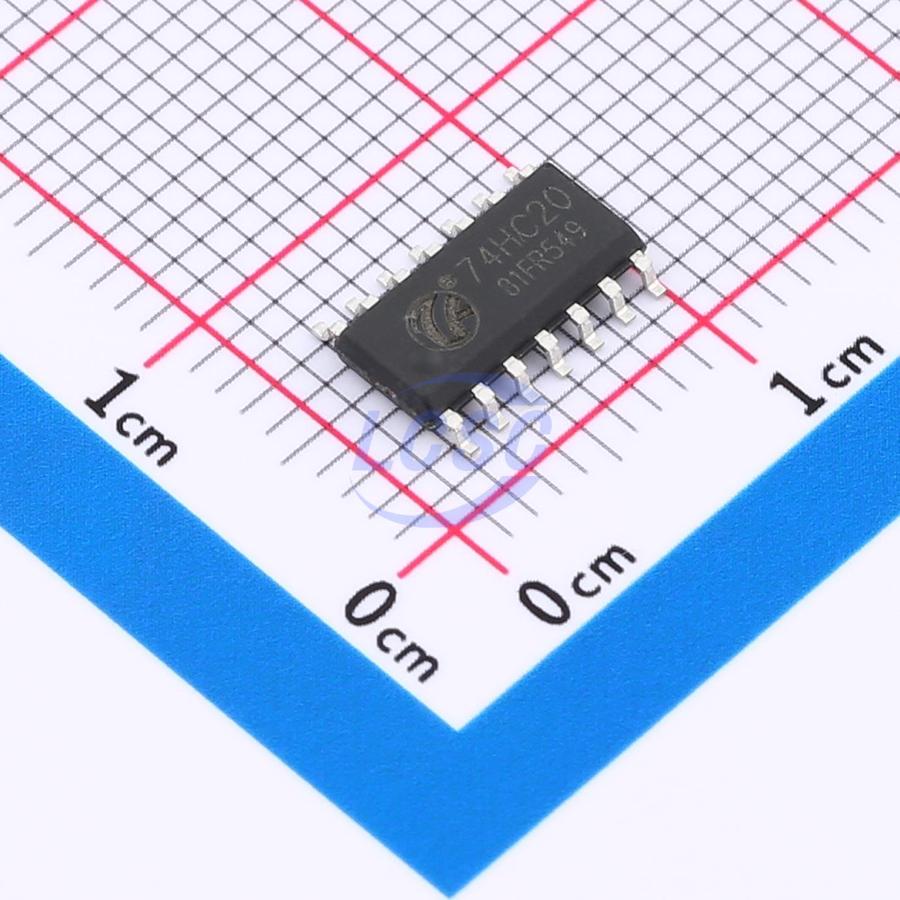

74HC20NS14ARDQ
2V~6V 10uA SOP-14 Gates and Inverters
SOP-14RoHSActive
Dual 4-Input Nand Gates
- Manufacturer
- GR
- Manufacturer part #
- 74HC20NS14ARDQ
- Store part #
- C42375452
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,155 in stock
#C42375452
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.34 | ₹71.70 |
| 50+ | ₹11.34 | ₹567.00 |
| 150+ | ₹9.84 | ₹1,476.00 |
| 500+ | ₹8.71 | ₹4,355.00 |
| 2,500+ | ₹7.81 | ₹19,525.00 |
| 5,000+ | ₹7.36 | ₹36,800.00 |
5 × ₹14.34
₹71.70
excl. GST
₹84.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
74HC20NS14ARDQ
₹71.70 for 5 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;260mV
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V;4V;5.5V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2 g
Overview
This device contains two independent 4-input NAND gates. Each gate perfomms the Boolean function γ = (A · B · C · D)（overline） in positive logic.
