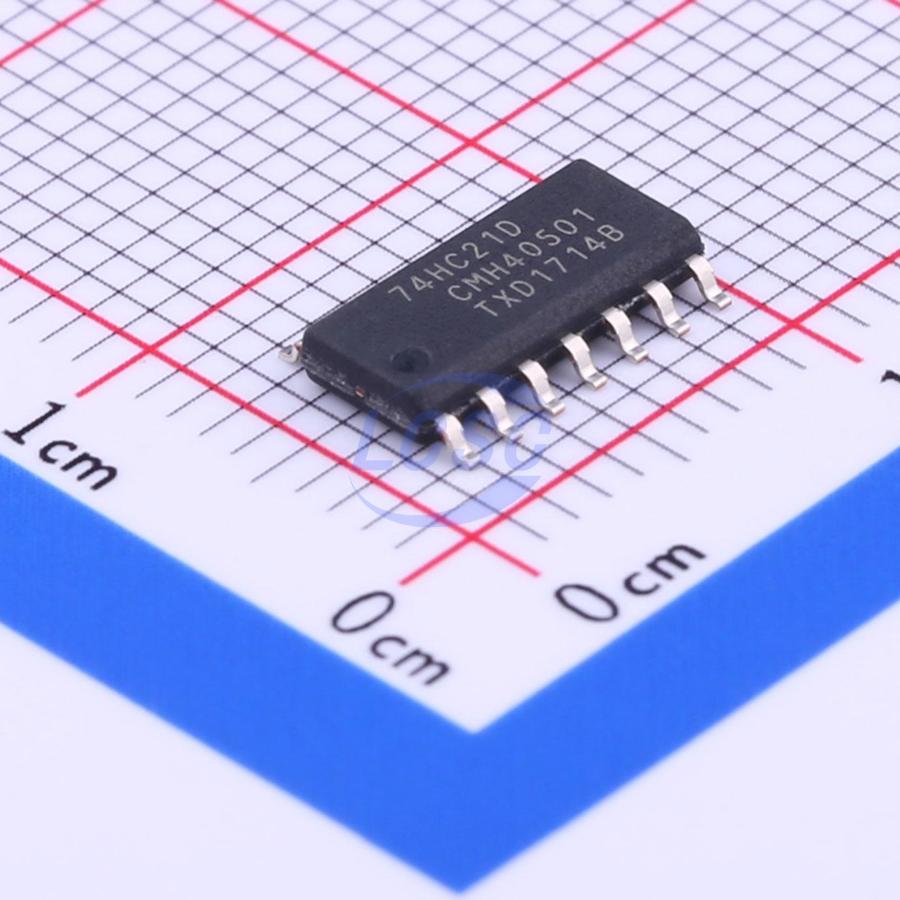

Dual 4-input AND gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC21D,653
- Store part #
- C5617
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,910 in stock
#C5617
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.50 | ₹192.50 |
| 50+ | ₹30.01 | ₹1,500.50 |
| 150+ | ₹26.37 | ₹3,955.50 |
| 500+ | ₹21.83 | ₹10,915.00 |
| 2,500+ | ₹19.81 | ₹49,525.00 |
| 5,000+ | ₹18.59 | ₹92,950.00 |
5 × ₹38.50
₹192.50
excl. GST
₹227.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC21D,653
₹192.50 for 5 + GST
Specifications
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Logic Family
- 74HC Series
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V;3.98V;5.48V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Number of Channels
- 2;4
- Current - Output High(IOH)
- 5.2mA
- Output Logic Level - Low
- 100mV;260mV;400mV
- Propagation Delay
- 19ns@6V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.254 g
Overview
The 74HC21 is a dual 4-input AND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Wide supply voltage range from 2.0 to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B CMOS input levels
- Complies with JEDEC standards:
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
