NexperiaDatasheet (PDF)

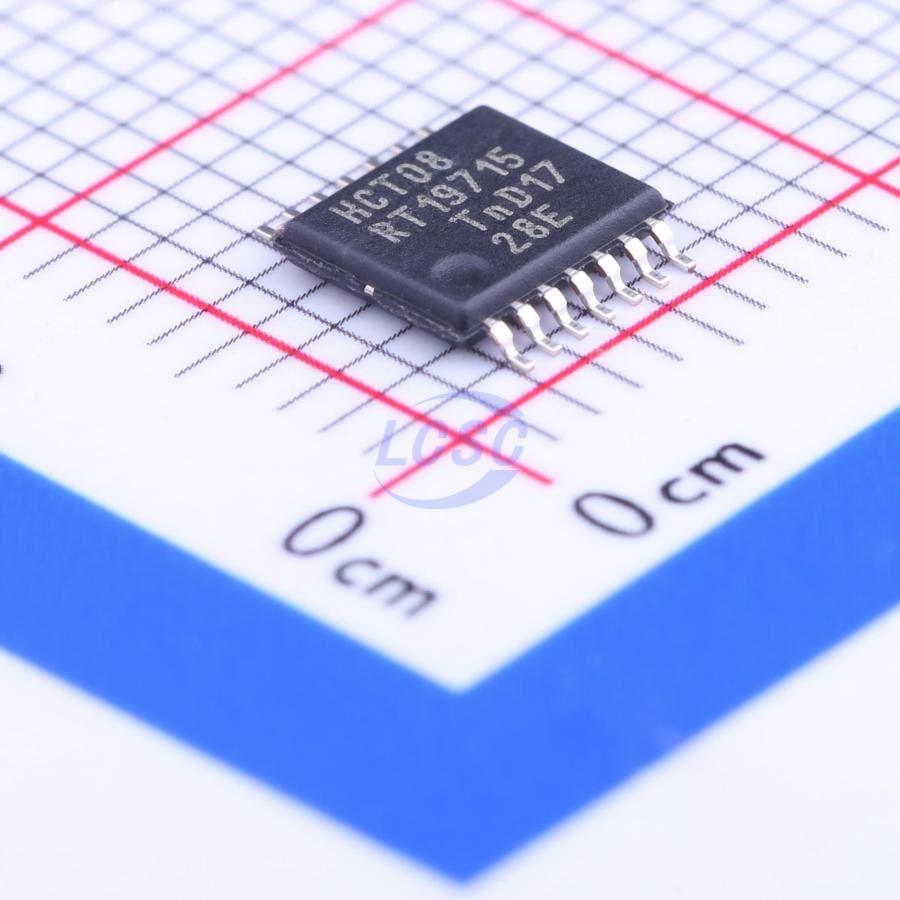

74HCT08PW,118
TTL-compatible CMOS 4.5V~5.5V 24ns@4.5V,50pF 2uA TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
Quad 2-input AND gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HCT08PW,118
- Store part #
- C131488
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27,605 in stock
#C131488
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.88 | ₹144.40 |
| 50+ | ₹22.94 | ₹1,147.00 |
| 150+ | ₹20.40 | ₹3,060.00 |
| 500+ | ₹17.23 | ₹8,615.00 |
| 2,500+ | ₹13.81 | ₹34,525.00 |
| 5,000+ | ₹12.97 | ₹64,850.00 |
5 × ₹28.88
₹144.40
excl. GST
₹170.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HCT08PW,118
₹144.40 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74HCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 400mV
- Propagation Delay
- 24ns@4.5V,50pF
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 3.7V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.23 g
Overview
The 74HC08; 74HCT08 is a quad 2-input AND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- Logic gate circuits
- Digital circuit design
- Signal processing
- Data transmission
- Electronic control systems
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Input levels:
- For 74HC08: CMOS level
- For 74HCT08: TTL level
- Complies with JEDEC standards:
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HCT08PW-Q100,118#C547223Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | 4,835 | ₹14.21 · 4,835 in stock | View |
 | SN74HCT08PWR#C8181TI · TSSOP-14 | TI | TSSOP-14 | 6,355 | ₹57.25 · 6,355 in stock | View |
 | SN74AHCT08PWR#C155175TI · TSSOP-14 | TI | TSSOP-14 | 3,900 | ₹45.66 · 3,900 in stock | View |
 | MM74HCT08MTCX#C904267onsemi · TSSOP-14 | onsemi | TSSOP-14 | 36 | ₹127.44 · 36 in stock | View |
 | MC74VHCT08ADTR2G#C233479onsemi · TSSOP-14 | onsemi | TSSOP-14 | 6 | ₹160.43 · 6 in stock | View |
