JSMSEMIDatasheet (PDF)

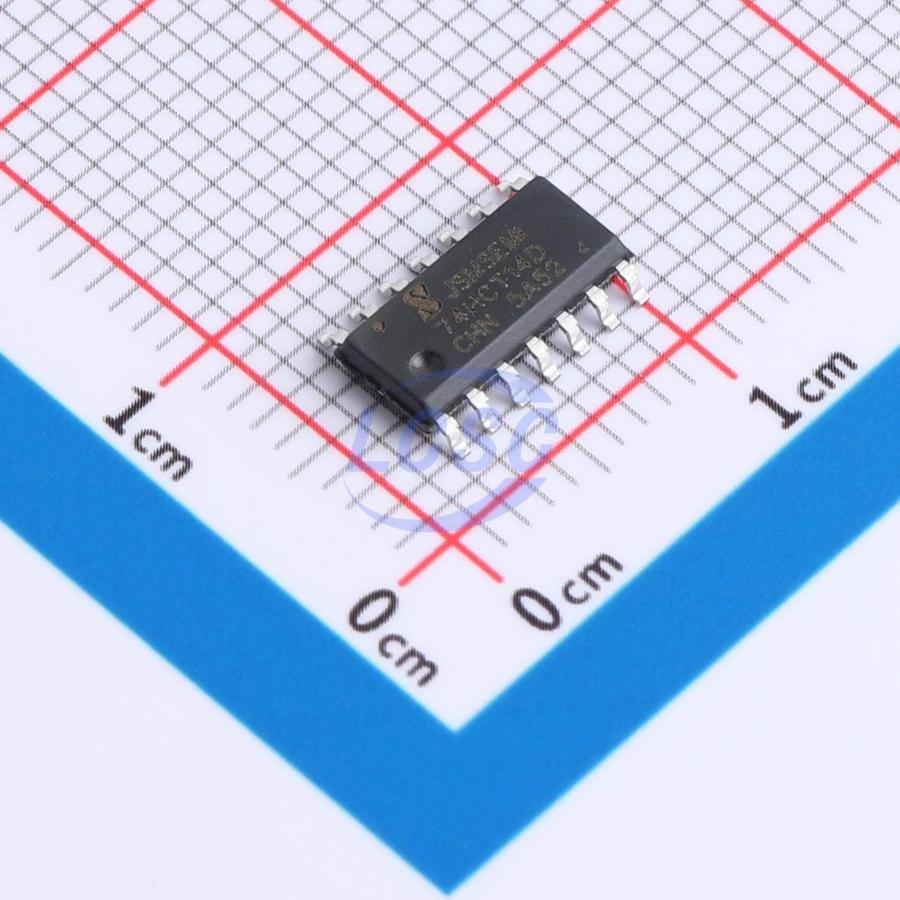

74HCT14D,653-JSM
Schmitt trigger 4.5V~5.5V 20ns@4.5V,15pF 40uA 6 SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74HCT14D,653-JSM
- Store part #
- C53114434
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,015 in stock
#C53114434
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.00 | ₹80.00 |
| 50+ | ₹12.73 | ₹636.50 |
| 150+ | ₹11.09 | ₹1,663.50 |
| 500+ | ₹9.87 | ₹4,935.00 |
| 2,500+ | ₹8.88 | ₹22,200.00 |
| 5,000+ | ₹8.39 | ₹41,950.00 |
5 × ₹16.00
₹80.00
excl. GST
₹94.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HCT14D,653-JSM
₹80.00 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74HCT
- Voltage - Supply
- 4.5V~5.5V
- Propagation Delay
- 20ns@4.5V,15pF
- Output Logic Level - Low
- 100mV;260mV
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.4V;3.98V
- Quiescent Current(Iq)
- 40uA
- Number of Channels
- 6
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.279 g
Overview
The 74HC/HCT14 is a hex inverter with Schmitt trigger inputs. The 74HCT14 features lower input threshold levels for compatibility with TTL logic levels. The Schmitt trigger converts slowly changing input signals into fast, clean output transitions.
Key features
- Input levels: 74HC14 CMOS-compatible, 74HCT14 TTL-compatible
- Low power consumption
- Operating temperature range: -40℃ ~ +125℃
- Package types: DIP14/SOP14/TSSOP14
