DIODES

74LV08AT14-13

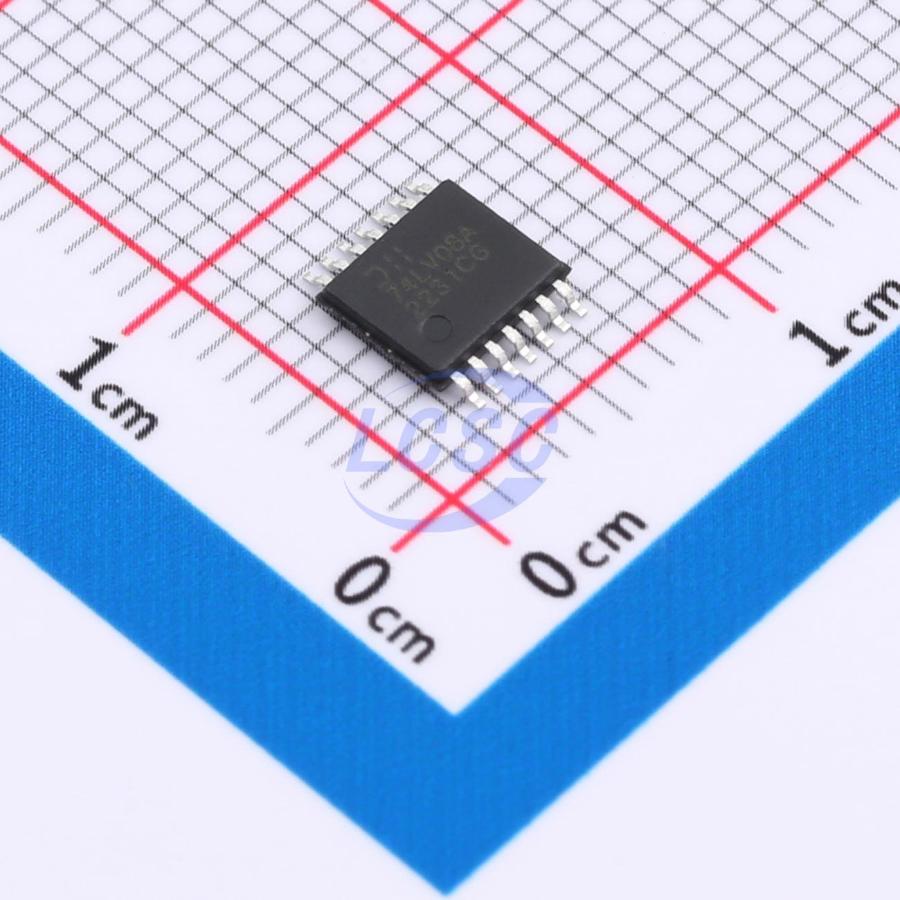

Schmitt trigger 2V~5.5V 7.9ns@5V,50pF 20uA TSSOP-14 Gates and Inverters RoHS

TSSOP-14ROHS3 CompliantActive

QUADRUPLE 2-INPUT AND GATES

Manufacturer: DIODES
Manufacturer part #: 74LV08AT14-13
Store part #: C842475
Package / case: TSSOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,655 in stock

#C842475

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹22.39	₹111.95
50+	₹19.71	₹985.50
150+	₹18.57	₹2,785.50
500+	₹17.16	₹8,580.00
2,500+	₹16.52	₹41,300.00
5,000+	₹16.14	₹80,700.00

Quantity (min 5, multiples of 5)

5 × ₹22.39

₹111.95

excl. GST

₹132.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

74LV08AT14-13

₹111.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
output type: Push-pull
Logic Family: 74LV Series
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 550mV
Propagation Delay: 7.9ns@5V,50pF
Features: Overvoltage-tolerant input;Local shutdown mode
Input Logic Level - Low: 500mV
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1.5V
Output Logic Level - High: 3.8V
Quiescent Current(Iq): 20uA
Current - Output High(IOH): 12mA
Number of Channels: 4;2
Current - Output Low(IOL): 12mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.294 g

Overview

The 74LV08A provides four independent 2-input AND gates with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down. The gates perform the Boolean function: Y = A • B or Y = A(overline) + B(overline) (overline)

Applications

General Purpose Logic
Power Down Signal Isolation
Wide Array of Products Such As: PCs, networking, Notebooks, Ultrabooks, Netbooks
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, set top box

Key features

Wide Supply Voltage Range from 2.0V to 5.5V
Sinks or Sources 12mA at VCC = 4.5V
CMOS Low Power Consumption
IOFF Supports Partial-Power Down Operation
Inputs or Outputs accept up to 5.5V
Inputs Can Be Driven by 3.3V or 5V Allowing for Voltage Translation Applications
Schmitt Trigger Action at All Inputs
ESD Protection Tested per JESD 22
Exceeds 200-V Machine Model (A115)
Exceeds 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
Latch-Up Exceeds 100mA per JESD 78, Class I
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
