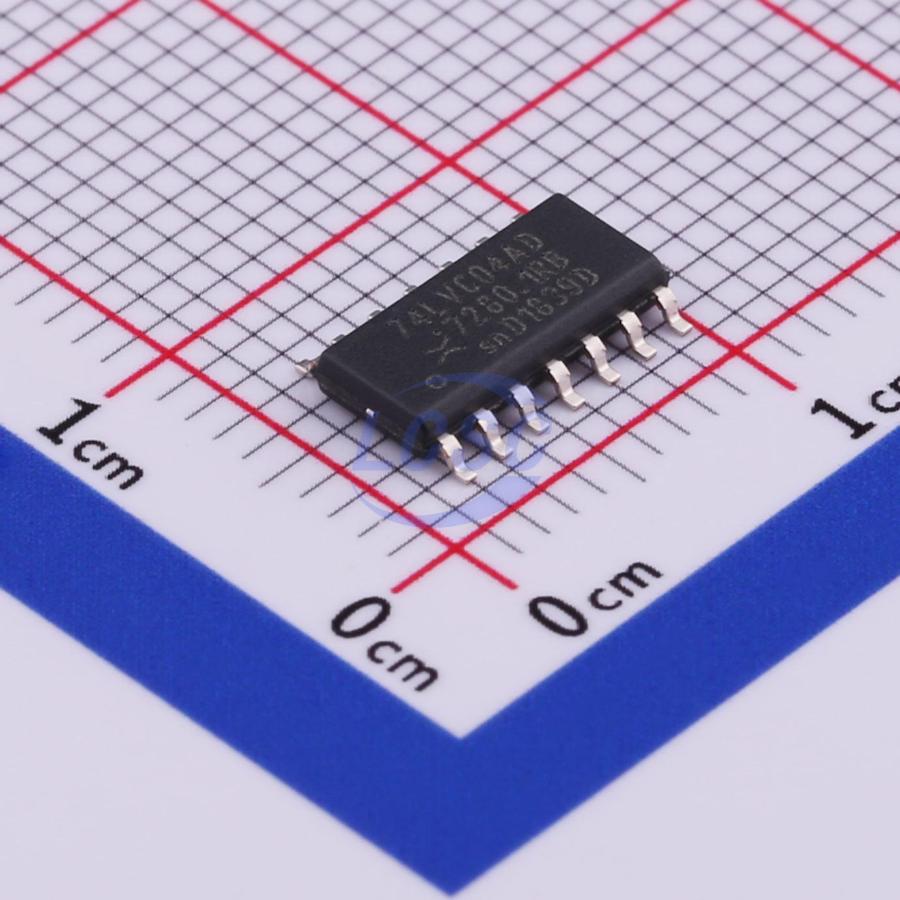

74LVC04AD,118
Schmitt trigger 1.2V~3.6V 4.5ns@3.3V,50pF 40uA 6 SO-14 Gates and Inverters RoHS
SO-14ROHS3 CompliantActive
Hex inverter
- Manufacturer
- Nexperia
- Manufacturer part #
- 74LVC04AD,118
- Store part #
- C282341
- Package / case
- SO-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
955 in stock
#C282341
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.23 | ₹136.15 |
| 50+ | ₹21.42 | ₹1,071.00 |
| 150+ | ₹18.93 | ₹2,839.50 |
| 500+ | ₹15.82 | ₹7,910.00 |
| 2,500+ | ₹14.45 | ₹36,125.00 |
| 5,000+ | ₹13.61 | ₹68,050.00 |
5 × ₹27.23
₹136.15
excl. GST
₹160.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74LVC04AD,118
₹136.15 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74LVC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 1.2V~3.6V
- Output Logic Level - Low
- 300mV;650mV;800mV;600mV
- Propagation Delay
- 4.5ns@3.3V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 120mV~800mV
- Input Logic Level - High
- 1.08V~2V
- Output Logic Level - High
- 1.2V;1.8V;2.2V;2.4V
- Quiescent Current(Iq)
- 40uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.167 g
Overview
The 74LVC04A is a hex inverter. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times.
Key features
- Overvoltage tolerant inputs to 5.5 V
- Wide supply voltage range from 1.2 V to 3.6 V
- CMOS low power consumption
- Direct interface with TTL levels
- Complies with JEDEC standard: JESD8-7A (1.65 V to 1.95 V); JESD8-5A (2.3 V to 2.7 V); JESD8-C/JESD36 (2.7 V to 3.6 V)
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V; CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +85 °C and -40 °C to +125 °C
