74LVC1G86GW

1.65V~5.5V 5ns@3.3V,50pF 10uA SOT-353 Gates and Inverters

SOT-353RoHSActive

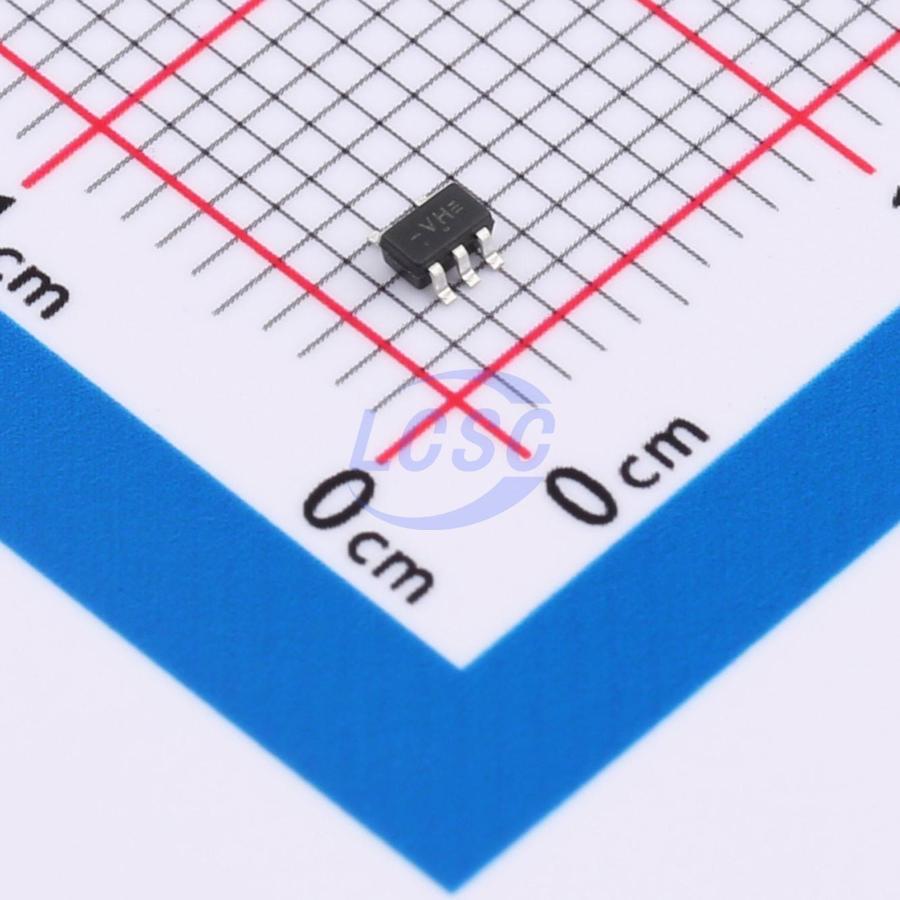

SINGLE 2-INPUT EXCLUSIVE-OR GATE

Manufacturer: TECH PUBLIC
Manufacturer part #: 74LVC1G86GW
Store part #: C19829656
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,150 in stock

#C19829656

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹7.30	₹73.00
100+	₹5.74	₹574.00
300+	₹4.96	₹1,488.00
3,000+	₹4.37	₹13,110.00
6,000+	₹3.90	₹23,400.00
9,000+	₹3.66	₹32,940.00

Quantity (min 10, multiples of 10)

10 × ₹7.30

₹73.00

excl. GST

₹86.14 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G86GW

₹73.00 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 100mV;450mV;300mV;400mV;550mV
Propagation Delay: 5ns@3.3V,50pF
Features: Local shutdown mode
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.4V;2.3V;3.8V
Quiescent Current(Iq): 10uA
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.028 g

Overview

The 74LVC1G86 is a single 2-input EXCLUSIVE-OR gate which provides the Function Y = A⊕B or Y = AB(overline) + AB(overline) in positive logic. Inputs can be driven from either 3.3V or 5V devices. These features allow the use of these devices in a mixed 3.3V and 5V environment. This device is fully specified for partial Power-down applications using lorF. The lorF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.

Applications

Voltage Level Shifting
General Purpose Logic
Power Down Signal Isolation
PCs, Networking, Notebooks, Netbooks, PDAs
Tablet Computers, E-readers
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set-Top Box
Cell Phones, Personal Navigation/GPS
MP3 Players, Cameras, Video Recorders

Key features

Operate from 1.65V to 5.5V
Inputs accept voltages to 5.5V
loFF supports partial-power-down mode
Low power dissipation
Max tpD of 4 ns at 3.3V
ESD Protection Exceeds JESD22
2000-V Human-Body Model (A114-A)
1000-V Charged-Device Model (C101)
SOT23-5 Package Available
SOT353 Package Available
