Nexperia

74LVC1G97GW-Q100

Schmitt trigger 1.65V~5.5V 7.9ns@3.3V,50pF 4uA TSSOP-6 Gates and Inverters

TSSOP-6RoHSActive

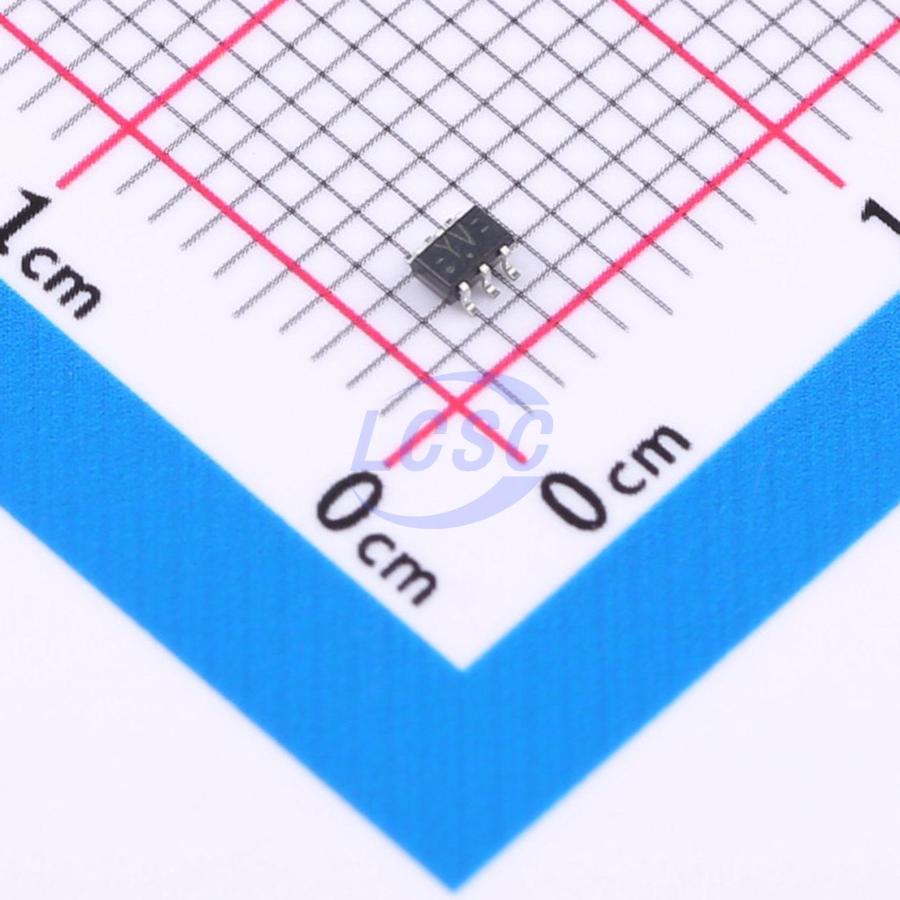

Low-power configurable multiple function gate

Manufacturer: Nexperia
Manufacturer part #: 74LVC1G97GW-Q100
Store part #: C22390071
Package / case: TSSOP-6
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,131 in stock

#C22390071

Stock & price checked 15 days ago

Quantity	Unit price	Pack price
1+	₹108.79	₹108.79
10+	₹99.11	₹991.10
30+	₹93.95	₹2,818.50
100+	₹87.93	₹8,793.00
500+	₹75.46	₹37,730.00
1,000+	₹74.17	₹74,170.00

Quantity (min 1)

1 × ₹108.79

₹108.79

excl. GST

₹128.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G97GW-Q100

₹108.79 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 7.9ns@3.3V,50pF
Output Logic Level - Low: 800mV
Features: Local shutdown mode;Overvoltage-tolerant input
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 2V;3.4V
Quiescent Current(Iq): 4uA
Number of Channels: 3;1
Current - Output High(IOH): 24mA
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.037 g

Overview

The 74LVC1G97-Q100 is a configurable multiple function gate with Schmitt-trigger inputs. The device can be configured as any of the following logic functions MUX, AND, OR, NAND, NOR, inverter and buffer; using the 3-bit input. All inputs can be connected to VCC or GND. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. This device is fully specified for partial power-down applications using IOFF. The l(OFF) circuitry disables the output, preventing the damaging backflow current through the device when it is powered down. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.

Applications

Level translation for mixed 3.3V and 5V environments
Automotive applications

Key features

Automotive product qualification in accordance with AEC-Q100 (Grade 1) Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
Wide supply voltage range from 1.65 V to 5.5 V
5 V tolerant input/output for interfacing with 5 V logic
High noise immunity
Complies with JEDEC standard: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8B/JESD36 (2.7 V to 3.6 V)
±24 mA output drive (VCC = 3.0 V)
CMOS low power consumption
Latch-up performance exceeds 250 mA
Direct interface with TTL levels
Inputs accept voltages up to 5 V
ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
