Nexperia

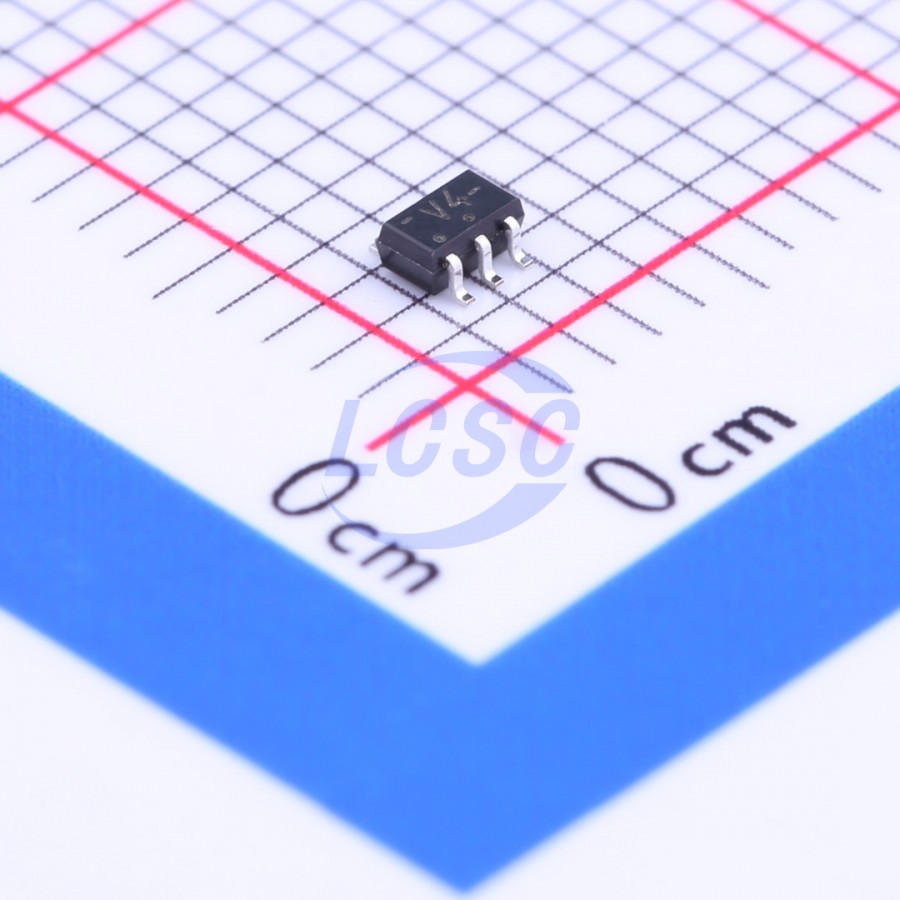

74LVC2G04GW,125

Schmitt trigger 1.65V~5.5V 3.2ns@5V,50pF 4uA 2 SOT-363 Gates and Inverters RoHS

SOT-363ROHS3 CompliantActive

Dual inverter

Manufacturer: Nexperia
Manufacturer part #: 74LVC2G04GW,125
Store part #: C192549
Package / case: SOT-363
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

58,865 in stock

#C192549

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹20.47	₹102.35
50+	₹16.05	₹802.50
150+	₹14.16	₹2,124.00
500+	₹11.79	₹5,895.00
3,000+	₹10.29	₹30,870.00
6,000+	₹9.66	₹57,960.00

Quantity (min 5, multiples of 5)

5 × ₹20.47

₹102.35

excl. GST

₹120.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC2G04GW,125

₹102.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

output type: Push-pull
Logic Family: 74LVC
Input Type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 800mV
Propagation Delay: 3.2ns@5V,50pF
Features: Power shutdown protection;Noise suppression function
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 700mV;800mV
Input Logic Level - High: 1.7V~2V
Output Logic Level - High: 2V
Quiescent Current(Iq): 4uA
Current - Output High(IOH): 32mA
Number of Channels: 2
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.038 g

Overview

The 74LVC2G04 is a dual inverter. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. This device is fully specified for partial power-down applications using IOFF. The l(OFF) circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.

Applications

Level translation in mixed 3.3V and 5V environments
Direct TTL-level interface

Key features

Wide supply voltage range from 1.65 V to 5.5 V
Overvoltage tolerant inputs to 5.5 V
High noise immunity
±24 mA output drive (V(CC)=3.0 V)
CMOS low power dissipation
Direct interface with TTL levels
IOFF circuitry provides partial Power-down mode operation
Latch-up performance exceeds 250 mA
Complies with JEDEC standard:
JESD8-7 (1.65 V to 1.95 V)
JESD8-5 (2.3 V to 2.7 V)
JESD8C (2.7 V to 3.6 V)
JESD36 (4.6 V to 5.5 V)
ESD protection:
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
Multiple package options
Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃

Alternatives

Similar parts — check the datasheet before substituting.
