74LVC32APW,118
1.2V~3.6V 5ns@3.3V,50pF 40uA TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
Quad 2-input OR gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74LVC32APW,118
- Store part #
- C6087
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25,495 in stock
#C6087
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.75 | ₹88.75 |
| 50+ | ₹14.00 | ₹700.00 |
| 150+ | ₹12.12 | ₹1,818.00 |
| 500+ | ₹10.70 | ₹5,350.00 |
| 2,500+ | ₹9.58 | ₹23,950.00 |
| 5,000+ | ₹9.01 | ₹45,050.00 |
5 × ₹17.75
₹88.75
excl. GST
₹104.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel

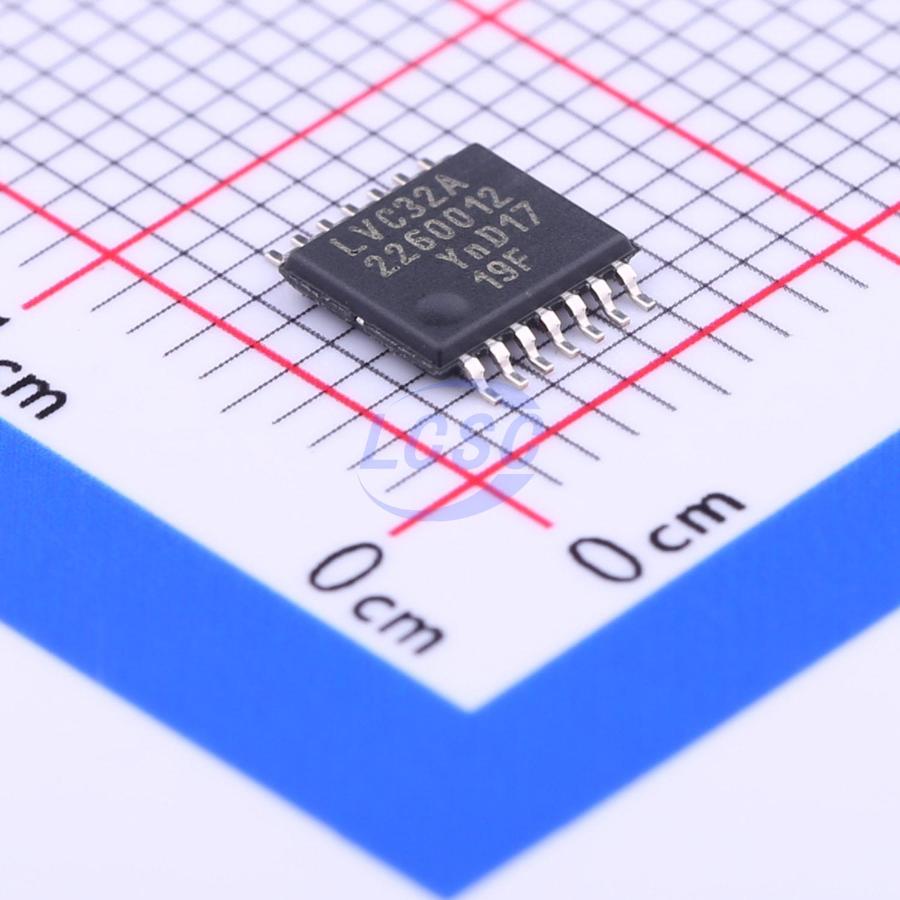

74LVC32APW,118
₹88.75 for 5 + GST
Specifications
- Input Type
- Schmitt trigger;TTL-compatible CMOS
- Logic Family
- 74LVC Series
- Voltage - Supply
- 1.2V~3.6V
- Output Logic Level - Low
- 200mV;450mV;600mV;400mV;800mV
- Propagation Delay
- 5ns@3.3V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 120mV~800mV
- Input Logic Level - High
- 1.08V~2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.8V;2.2V;2.4V
- Quiescent Current(Iq)
- 40uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.23 g
Overview
The 74LVC32A is a quad 2-input OR gate. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times.
Applications
- Level translation in mixed 3.3V and 5V environments
Key features
- Wide supply voltage range from 1.2 V to 3.6 V
- Overvoltage tolerant inputs to 5.5 V
- CMOS low power dissipation
- Direct interface with TTL levels
- Complies with JEDEC standard: JESD8-7A (1.65 V to 1.95 V), JESD8-5A (2.3 V to 2.7 V), JESD8-C/JESD36 (2.7 V to 3.6 V)
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V; CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +85 °C and -40 °C to +125 °C
