TOSHIBADatasheet (PDF)

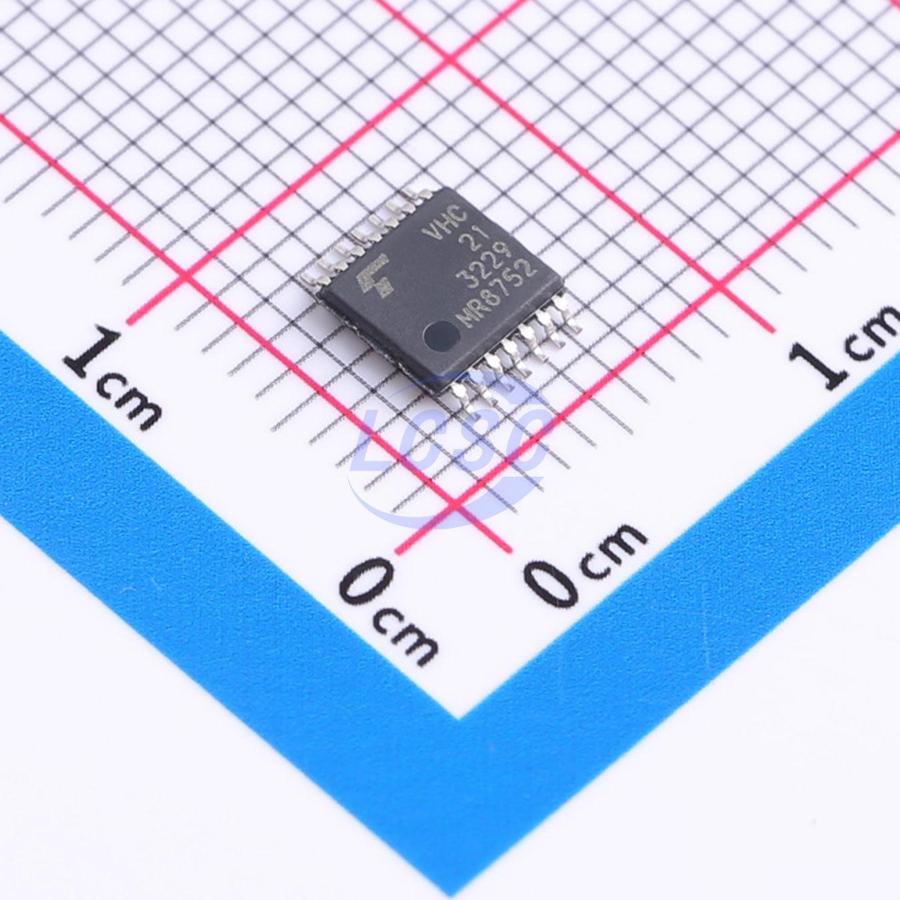

74VHC21FT
2V~5.5V 7ns@5V,50pF 2uA TSSOP-14-175mil Gates and Inverters RoHS
TSSOP-14-175milROHS3 CompliantActive
Dual 4-Input AND Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- 74VHC21FT
- Store part #
- C4470883
- Package / case
- TSSOP-14-175mil
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,385 in stock
#C4470883
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.73 | ₹158.65 |
| 50+ | ₹24.94 | ₹1,247.00 |
| 150+ | ₹22.03 | ₹3,304.50 |
| 500+ | ₹18.40 | ₹9,200.00 |
| 2,500+ | ₹16.79 | ₹41,975.00 |
| 5,000+ | ₹15.81 | ₹79,050.00 |
5 × ₹31.73
₹158.65
excl. GST
₹187.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74VHC21FT
₹158.65 for 5 + GST
Specifications
- Logic Family
- 74VHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 0V~100mV;360mV
- Propagation Delay
- 7ns@5V,50pF
- Features
- Overvoltage-tolerant input;Local shutdown mode
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 3.94V;4.4V~4.5V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 2;4
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.175 g
Overview
The 74VHC21FT is an advanced high speed CMOS 4-INPUT AND GATE fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. The internal circuit is composed of 4 stages including a buffer output, which provide high noise immunity and stable output. An input protection circuit ensures that 0 to 5.5 V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5V to 3V systems and two supply systems such as battery back up. This circuit prevents device destruction due to mismatched supply and input voltages.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HCS21QPWRQ1#C2860362TI · TSSOP-14 | TI | TSSOP-14 | 250 | ₹113.65 · 250 in stock | View |
 | SN74HCS21PWR#C2866212TI · TSSOP-14 | TI | TSSOP-14 | 165 | ₹54.04 · 165 in stock | View |
 | SN74HC21QPWRG4Q1#C2864275TI · TSSOP-14 | TI | TSSOP-14 | 7 | ₹93.67 · 7 in stock | View |
 | SN74HC21PWR#C507237TI · TSSOP-14 | TI | TSSOP-14 | 475 | ₹67.05 · 475 in stock | View |
 | SN74LV21APWR#C201541TI · TSSOP-14 | TI | TSSOP-14 | 165 | ₹53.03 · 165 in stock | View |
