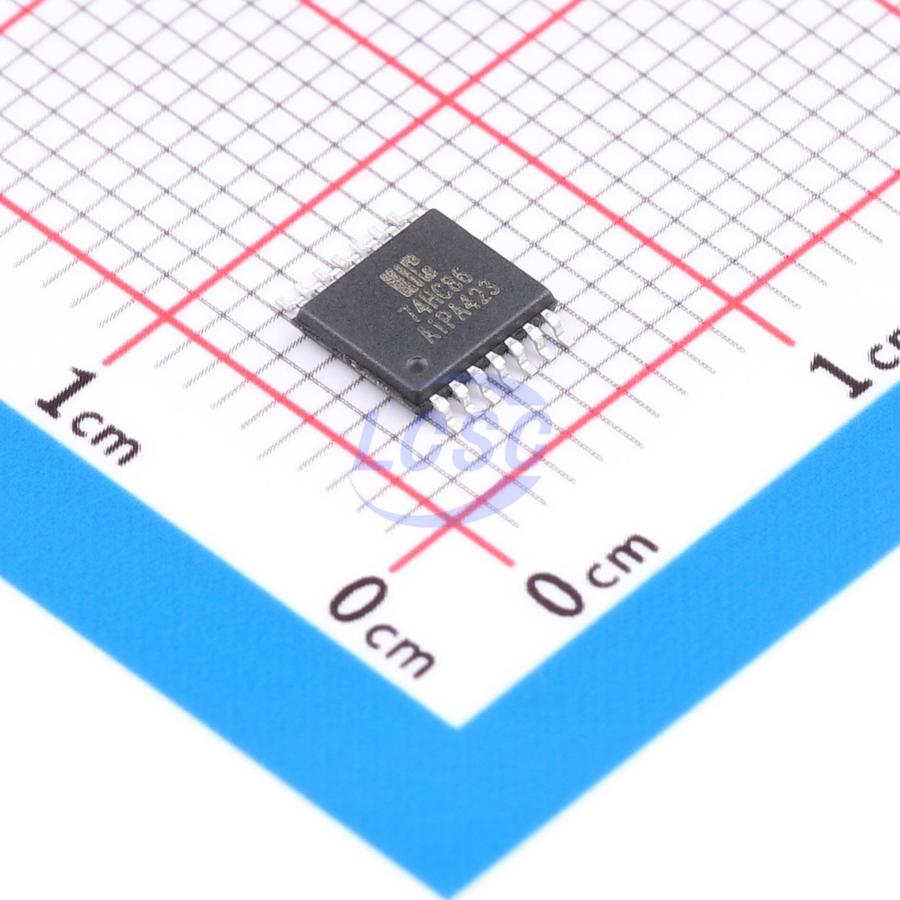

Wuxi I-core ElecDatasheet (PDF)
AiP74HC86TA14.TR
StandardCMOS 2V~6V 24ns@4.5V,50pF 2uA TSSOP-14 Gates and Inverters
TSSOP-14RoHSActive
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- AiP74HC86TA14.TR
- Store part #
- C51940063
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,820 in stock
#C51940063
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.95 | ₹84.75 |
| 50+ | ₹13.48 | ₹674.00 |
| 150+ | ₹11.75 | ₹1,762.50 |
| 500+ | ₹10.45 | ₹5,225.00 |
| 2,500+ | ₹9.42 | ₹23,550.00 |
| 5,000+ | ₹8.89 | ₹44,450.00 |
5 × ₹16.95
₹84.75
excl. GST
₹100.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
AiP74HC86TA14.TR
₹84.75 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 260mV
- Propagation Delay
- 24ns@4.5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.142 g
Overview
AiP74HC/HCT86 is a quad 2-input exclusive-OR gate. Input clamping diodes are included, enabling the use of current limiting resistors to interface inputs to voltages exceeding VCC.
Key features
- Input levels: CMOS for AiP74HC86; TTL for AiP74HCT86
- Operating temperature range: -40℃ ~ +125℃
- Package types: DIP14/SOP14/TSSOP14
