Wuxi I-core Elec

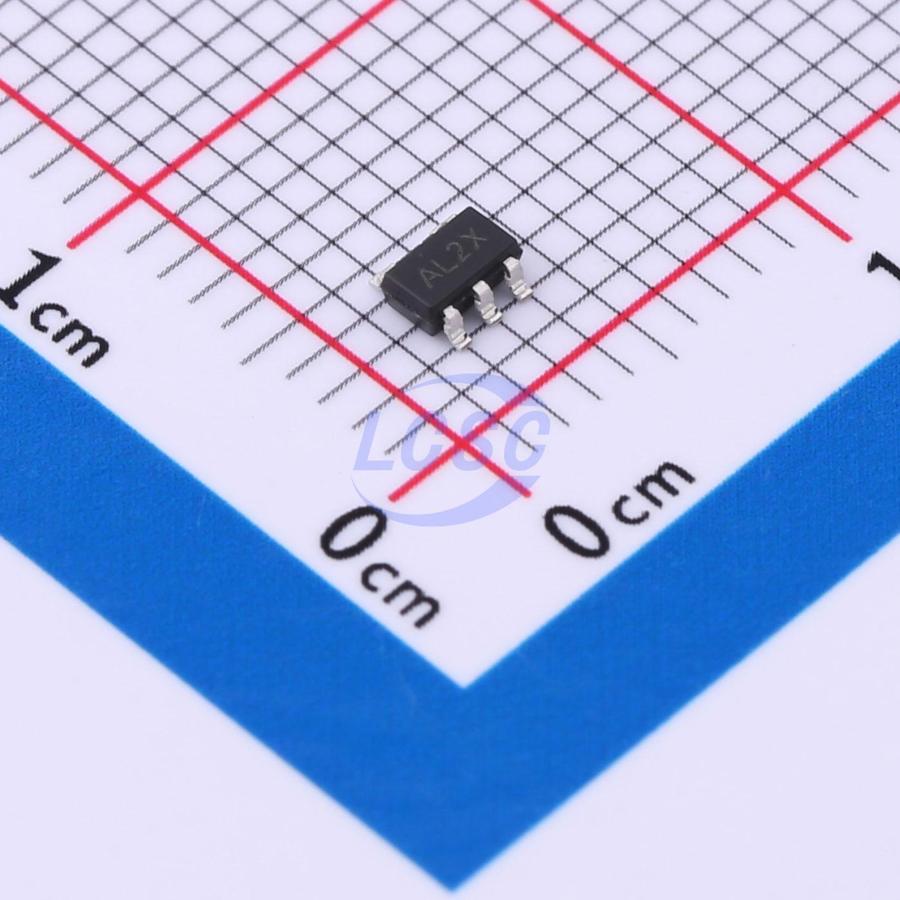

AIP74LVC1G32GB235.TR

4uA 1.65V~5.5V 4ns@5V,50pF SOT-23-5 Gates and Inverters

SOT-23-5RoHSActive

Single 2-input Or Gate

Manufacturer: Wuxi I-core Elec
Manufacturer part #: AIP74LVC1G32GB235.TR
Store part #: C4945071
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,380 in stock

#C4945071

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
10+	₹13.10	₹131.00
100+	₹10.12	₹1,012.00
300+	₹8.64	₹2,592.00
3,000+	₹7.53	₹22,590.00
6,000+	₹6.64	₹39,840.00
9,000+	₹6.19	₹55,710.00

Quantity (min 10, multiples of 10)

10 × ₹13.10

₹131.00

excl. GST

₹154.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AIP74LVC1G32GB235.TR

₹131.00 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Local shutdown mode
Input Logic Level - Low: 700mV~800mV
Input Logic Level - High: 1.7V~2V
Operating Temperature: -40℃~+105℃
Logic Family: 74LVC Series
Output Logic Level - High: 1.2V;1.9V;2.2V;2.3V;3.8V
Quiescent Current(Iq): 4uA
Voltage - Supply: 1.65V~5.5V
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Output Logic Level - Low: 450mV;300mV;400mV;550mV
Propagation Delay: 4ns@5V,50pF
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.052 g

Overview

The AiP74LVC1G32 provides one 2-input OR function. Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in mixed 3.3V and 5V applications. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
