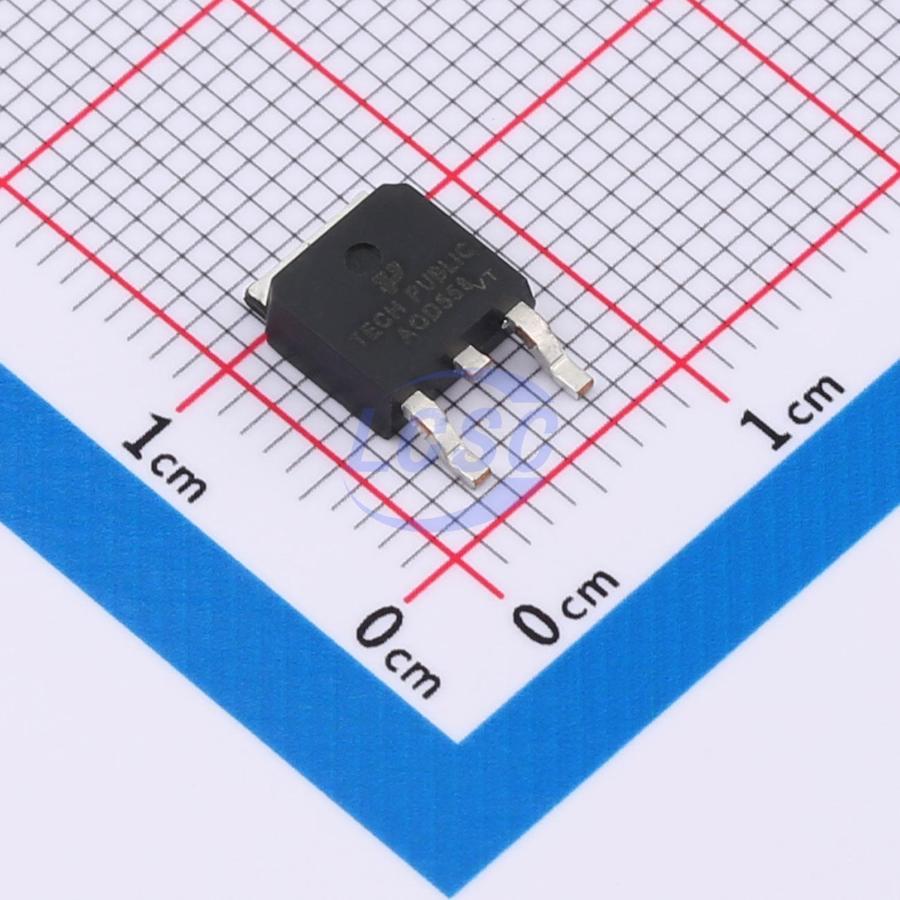

AOD558
30V 50A 181W Surface Mount TO-252-3L
TO-252-3LRoHSActive
MOSFET 30V 50A TO-252-3L
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- AOD558
- Store part #
- C41348136
- Package / case
- TO-252-3L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,440 in stock
#C41348136
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.73 | ₹68.65 |
| 50+ | ₹10.85 | ₹542.50 |
| 150+ | ₹9.42 | ₹1,413.00 |
| 500+ | ₹8.33 | ₹4,165.00 |
| 2,500+ | ₹7.47 | ₹18,675.00 |
| 5,000+ | ₹7.04 | ₹35,200.00 |
5 × ₹13.73
₹68.65
excl. GST
₹81.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AOD558
₹68.65 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 5.672nF
- Pd - Power Dissipation
- 181W
- Reverse Transfer Capacitance (Crss)
- 352pF
- RDS(on)
- 7.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 103nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.463 g
Overview
Applications
- Load switch
- PWM applications
- Power management
Key features
- 30V, 50A
- R DS(ON) = 3.88mΩ (typical) at VGS = 10V
- Advanced trench technology
- Excellent RDS(ON) and low gate charge
- Lead-free
