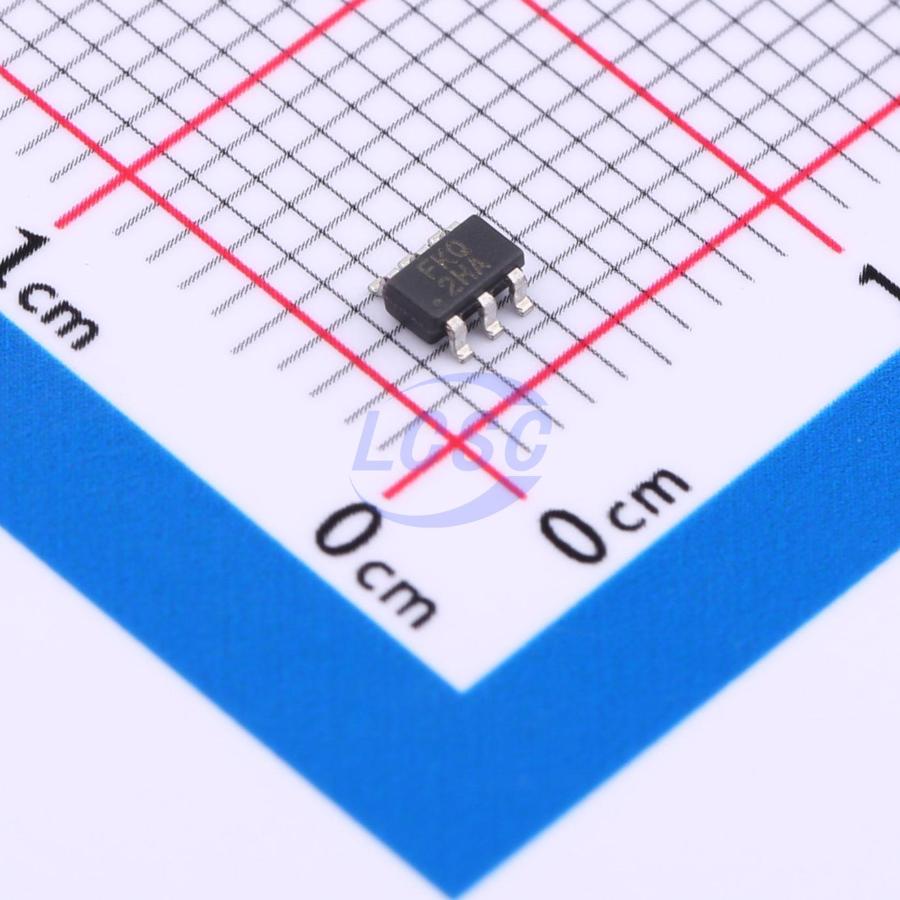

AP22653QW6-7

The automotive-compliant AP22653Q is a single-channel, precision-adjustable, current-limited switch optimized for applications that require accurate current limiting, or to provide up to 1.5A of continuous load current during heavy loads/short circuits. This device offers an adjustable current-limit threshold between 125mA and 1735mA (typ) via an external resistor. Current limit accuracy of ±7% can be achieved at high current-limit settings. The rise and fall times are controlled to minimize current surges during turn on/off. The device has fast short-circuit response time for improved overall system robustness. The device provides a complete protection solution for applications subject to heavy capacitive loads and the prospect of short circuit, offering reverse current blocking and limiting; overcurrent, overtemperature, and short-circuit protection; and controlled rise-time and undervoltage lockout functionality. A 6ms deglitch capability on the open-drain flag output prevents false overcurrent reporting and does not require any external components. The AP22653Q limits the output current to a safe level when the output current exceeds current-limit threshold and folds back the output current when subjected to short-circuit conditions. The device is available in the SOT26 (Type A1) package.

Applications

• Automotive ECU Supply Rail Power Distribution and Switching
• Automotive ECU Supply Rail Precision Current Limiting

Key features

• AEC qualified to AEC-Q100 Grade 1 offering -40°C to 125°C Ambient Operating Temperature Range
• Up to 1.5A Maximum Load Current
• Accurate Adjustable Current Limit, 125mA to 1735mA
• ±7% Accurate Adjustable Current Limit, 1.735A with R LIM = 15kΩ
• Constant-Current Version
• Fast Short-Circuit Response Time: 5µs (Typ.)
• Reverse Current Blocking During Shutdown and Reverse Current Limiting During Enable
• Operating Range: 3.0V to 5.5V
• Built-In Soft-Start with 0.5ms Typical Rise Time
• Overcurrent, Output Overvoltage, and Thermal Protection
• Fault Report (FAULT) with Blanking Time
• ESD Protection: 2kV HBM, 750V CDM
• Enable Active High
• SOT26 Package: Available in “Green” Molding Compound (No Br, Sb)
• 16kV ESD Protection per IEC61000 - 4 - 2 (With External Capacitance)
• UL Recognized.
• IEC60950 - 1 CB Scheme Certified
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
• The AP22653Q is suitable for automotive applications requiring specific change control; this part is AEC - Q100 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.
