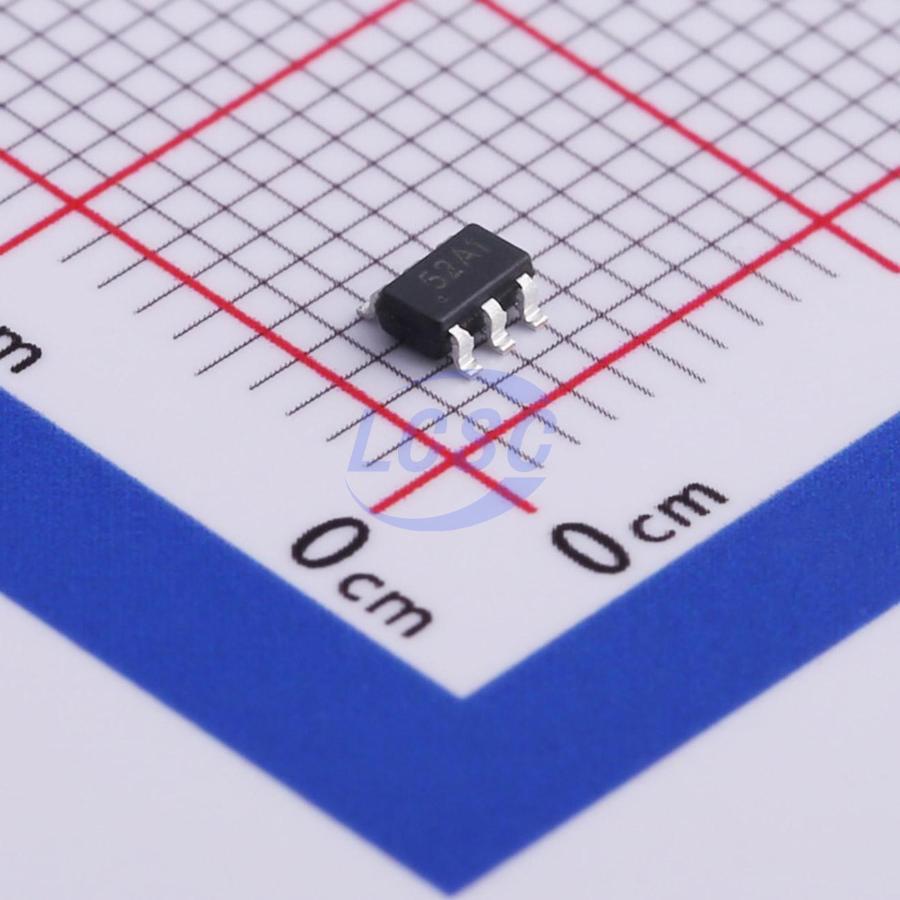

APL3552ACI-TRG
1 Active High 2A High Side Switch SOT-23-6 Power Distribution Switches, Load Drivers
SOT-23-6RoHSActive
Adjustable Current Limit Power Distribution Switches
- Manufacturer
- ANPEC
- Manufacturer part #
- APL3552ACI-TRG
- Store part #
- C503680
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,796 in stock
#C503680
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.89 | ₹78.89 |
| 10+ | ₹63.03 | ₹630.30 |
| 30+ | ₹56.28 | ₹1,688.40 |
| 100+ | ₹47.81 | ₹4,781.00 |
| 500+ | ₹40.64 | ₹20,320.00 |
| 1,000+ | ₹38.47 | ₹38,470.00 |
1 × ₹78.89
₹78.89
excl. GST
₹93.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
APL3552ACI-TRG
₹78.89 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Over temperature protection;Reverse voltage protection;Soft-start;Under-voltage lockout;Reverse current blocking
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 2A
- Operating Voltage
- 2.7V~5.5V
- RDS(on)
- 62mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.054 g
Overview
The APL3552 series of power switches integrate a 62mΩ N-channel MOSFET power switch, an enable input pin, a fault flag and some protection functions into a single package. The protection features include adjustable current limit, reverse current protection, and over temperature protection. APL3552 offer an adjustable current-limit threshold between 150mA and 2.8A (typ.) via an external resistor. The reverse current protection disable the power switch when the output voltage is driven higher than the input to protect devices on the input side of the switch. The OCB output asserts low during over current and reverse current conditions. The over-temperature protection limits the junction temperature below 140∞ in case of short circuit or over load conditions.
Applications
- Notebook and Desktop Computers
- USB Ports
- High-Side Power Protection Switchs
- MHL Ports
Key features
- 62mΩ Power Switch On Resistance
- Wide Supply Voltage Range: 2.7V to 5.5V
- Adjustable Current Limit Protection
- Fast Over current Response: 2us (typ.)
- Over-Temperature Protection
- Fault Indication Output
- Reverse Input-Output Voltage Protection: 25mV (typ.)
- Enable Input
- Built-in Soft-Start
- UL Approved-File No. E328191
- UL IEC/EN60950-1 CB Scheme Certified, No. DK63817-UL TUV IEC/EN60950-1 Certified, No. 44 780 17 406748-010
