ANPECDatasheet (PDF)

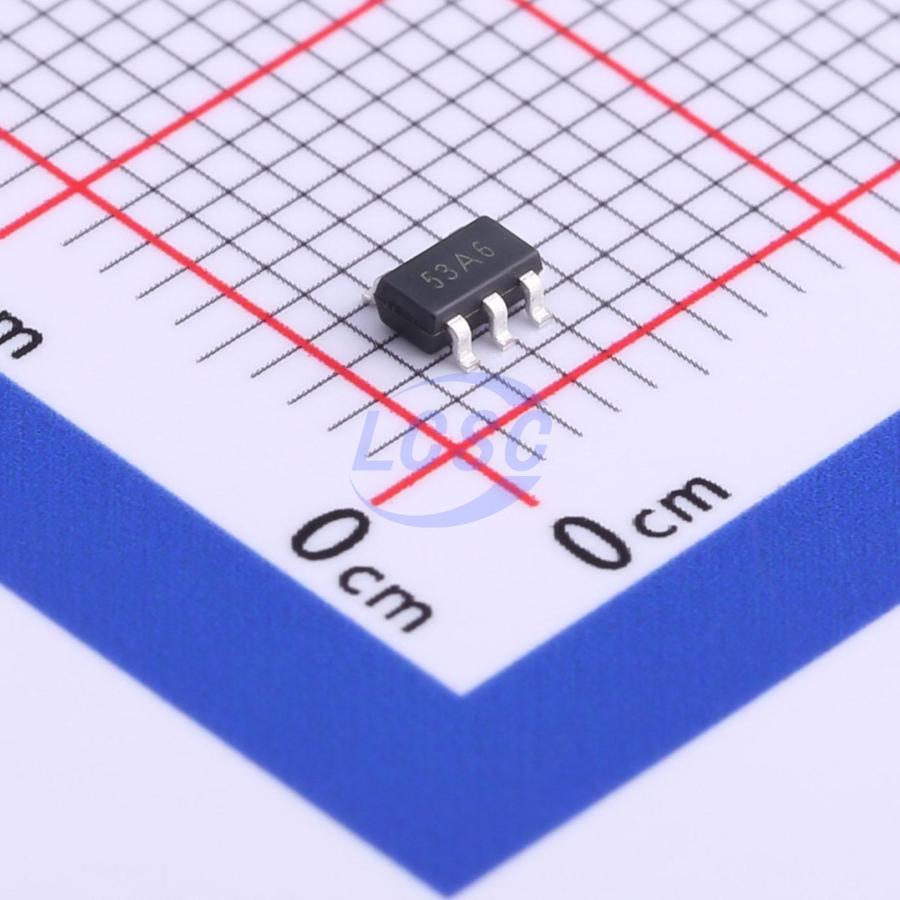

APL3553ABI-TRG
1 2A Active High High Side Switch SOT-23-5 Power Distribution Switches, Load Drivers
SOT-23-5RoHSActive
USB Power-Distribution Switches
- Manufacturer
- ANPEC
- Manufacturer part #
- APL3553ABI-TRG
- Store part #
- C691406
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,795 in stock
#C691406
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.65 | ₹113.25 |
| 50+ | ₹17.90 | ₹895.00 |
| 150+ | ₹15.86 | ₹2,379.00 |
| 500+ | ₹13.32 | ₹6,660.00 |
| 3,000+ | ₹12.18 | ₹36,540.00 |
| 6,000+ | ₹11.51 | ₹69,060.00 |
5 × ₹22.65
₹113.25
excl. GST
₹133.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
APL3553ABI-TRG
₹113.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Soft-start;Reverse voltage protection
- number of channels
- 1
- Maximum Continuous Current
- 2A
- Control Input Logic
- Active High
- Operating Voltage
- 2.7V~5.5V
- RDS(on)
- 62mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.057 g
Overview
The APL3553 series of power switches are designed for USB applications. The 62mΩ N-channel MOSFET power switch satisfies the voltage drop requirements of USB specification.
Applications
- USB applications
Key features
- 62mΩ Power Switch On Resistance
- Wide Supply Voltage Range: 2.7V to 5.5V
- Fix Current Limit Protection
- Fast Over current Response: 2us (typ.)
- Over-Temperature Protection
- Fault Indication Output
- Enable Input
- Built-in Soft-Start
- Reverse Input-Output Voltage Protection: 25mV (typ.)
- UL Approved-File No. E328191
- UL-CB Scheme IEC/EN62368-1 Certified
- TUV IEC/EN62368-1 Certified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP22802AW5-7#C211404DIODES · SOT-25-5 | DIODES | SOT-25-5 | 14,107 | ₹60.04 · 14,107 in stock | View |
 | WS4612EDA-5/TR#C2931339WILLSEMI · SOT-23-5L | WILLSEMI | SOT-23-5L | 1,145 | ₹15.72 · 1,145 in stock | View |
 | RT9742AGJ5F#C426473RICHTEK · TSOT-23-5 | RICHTEK | TSOT-23-5 | 10 | ₹39.54 · 10 in stock | View |
 | TPSY6288CAAC#C23378020TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,340 | ₹16.11 · 4,340 in stock | View |
 | TPAPL3511ABI-TRG#C23380906TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,865 | ₹21.92 · 1,865 in stock | View |
