MICROCHIP

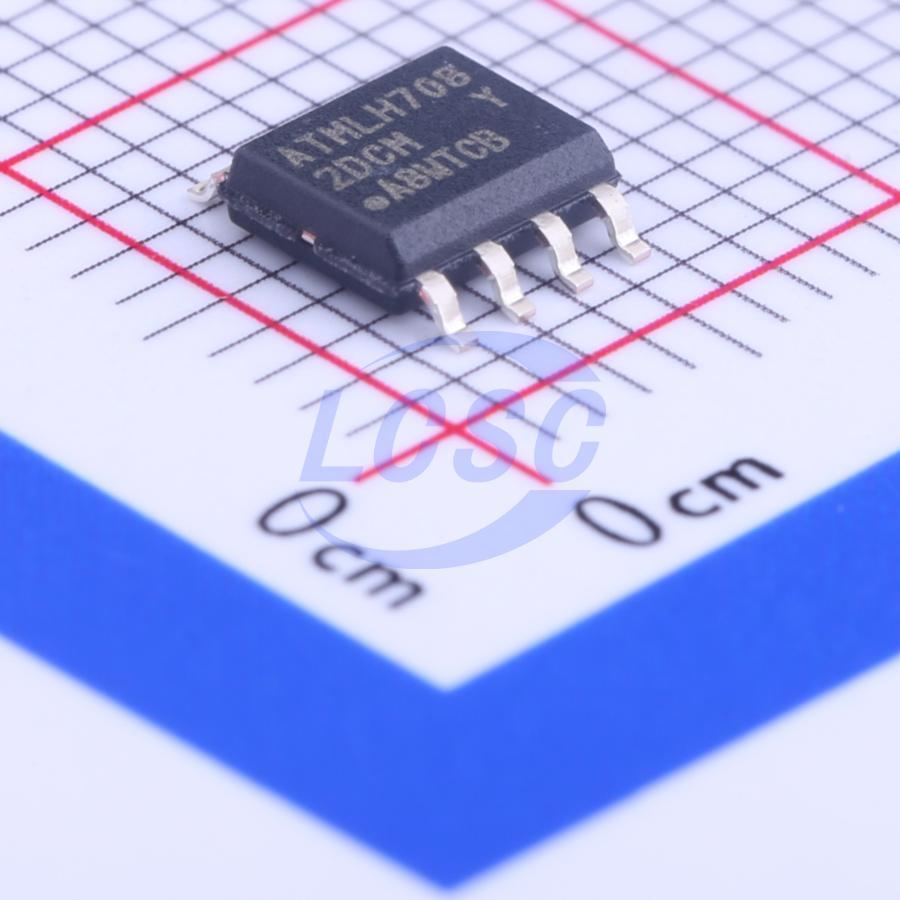

AT24C128C-SSHM-T
128Kbit 1MHz I2C SOIC-8 Memory RoHS
SOIC-8ROHS3 CompliantActive
I2C-Compatible Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
61,654 in stock
#C6478
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.56 | ₹51.56 |
| 10+ | ₹39.60 | ₹396.00 |
| 30+ | ₹34.60 | ₹1,038.00 |
| 100+ | ₹28.29 | ₹2,829.00 |
| 500+ | ₹27.41 | ₹13,705.00 |
| 1,000+ | ₹25.68 | ₹25,680.00 |
1 × ₹51.56
₹51.56
excl. GST
₹60.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C128C-SSHM-T
₹51.56 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function;Built-in power-on reset (POR)
- Memory Size
- 128Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns;450ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
Key features
- Low-Voltage Operation: – VCC = 1.7V to 5.5V
- Internally Organized as 16,384×8 (128K)
- Industrial Temperature Range: -40°C to +85°C
- I²C-Compatible (Two-Wire) Serial Interface:
- 100 kHz Standard Mode, 1.7V to 5.5V
- 400 kHz Fast Mode, 1.7V to 5.5V
- 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V
- Schmitt Triggers, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- Write-Protect Pin for Full Array Hardware Data Protection
- Ultra Low Active Current (3 mA maximum) and Standby Current (6 μA maximum)
- 64-Byte Page Write Mode:
- Partial page writes allowed
- Random and Sequential Read Modes
- Self-Timed Write Cycle within 5 ms Maximum
- High Reliability:
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Green Package Options (Lead-free/Halide-free/RoHS compliant)
- Die Sale Options: Wafer Form and Bumped Wafers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FT24C128A-TSR-B#C7466808FMD(Fremont Micro Devices) · SOP-8 | FMD(Fremont Micro Devices) | SOP-8 | 75 | ₹14.45 · 75 in stock | View |
 | FM24C128D-SO-T-G-AX#C908400FUDAN MICRO · SOP-8 | FUDAN MICRO | SOP-8 | 180 | ₹20.74 · 180 in stock | View |
 | AT24C128AM/TR#C22396896HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,380 | ₹34.13 · 2,380 in stock | View |
 | FT24C128A-TSR-T#C5263781FMD(Fremont Micro Devices) · SOP-8 | FMD(Fremont Micro Devices) | SOP-8 | 935 | ₹15.43 · 935 in stock | View |
 | CAT24C128WI-GT3#C81195onsemi · SOIC-8 | onsemi | SOIC-8 | 11,215 | ₹57.68 · 11,215 in stock | View |
