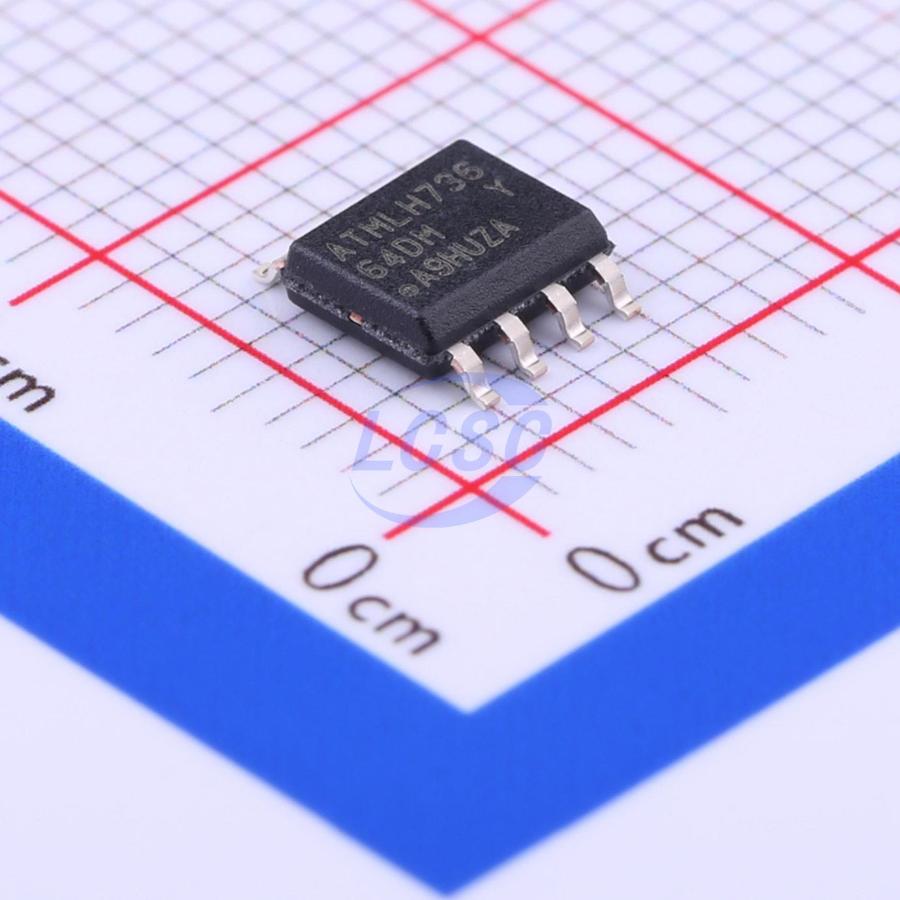

AT24C64D-SSHM-T
64Kbit 1MHz I2C SOIC-8 Memory RoHS
I2C-Compatible (2-Wire) Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
58,225 in stock
#C6487
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.60 | ₹233.00 |
| 50+ | ₹36.26 | ₹1,813.00 |
| 150+ | ₹31.22 | ₹4,683.00 |
| 500+ | ₹26.72 | ₹13,360.00 |
| 2,500+ | ₹23.83 | ₹59,575.00 |
| 4,000+ | ₹23.09 | ₹92,360.00 |
5 × ₹46.60
₹233.00
excl. GST
₹274.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24C64D-SSHM-T
₹233.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function;Page write protection function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.7V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns;550ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.169 g
Overview
The Atmel AT24C64D provides 65,536-bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 8,192 words of eight bits each. The device’s cascading feature allows up to eight devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The devices are available in space-saving 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, 8-pad XDFN, 6-ball WLCSP, 5-ball WLCSP, and 8-ball VFBGA packages. In addition, this device operates from 1.7V to 5.5V.
Key features
- Low-voltage and standard-voltage operation: VCC = 1.7V to 5.5V
- Internally organized as 8,192 x 8 (64K) I²C-compatible (2-Wire) serial interface
- Schmitt Trigger, filtered inputs for noise suppression
- Bidirectional data transfer protocol
- 400kHz (1.7V) and 1MHz (2.5V, 2.7V, 5.0V) compatibility
- Write Protect pin for hardware protection
- 32-byte Page Write mode
- Partial Page Writes allowed
- Self-timed Write cycle (5ms max)
- High reliability
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Lead-free/Halogen-free devices available
- Green package options (Pb/Halide-free/RoHS compliant)
- 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, 8-pad XDFN, 6-ball WLCSP, 5-ball WLCSP, and 8-ball VFBGA packages
- Die sale options: wafer form, waffle pack, and bumped wafers
