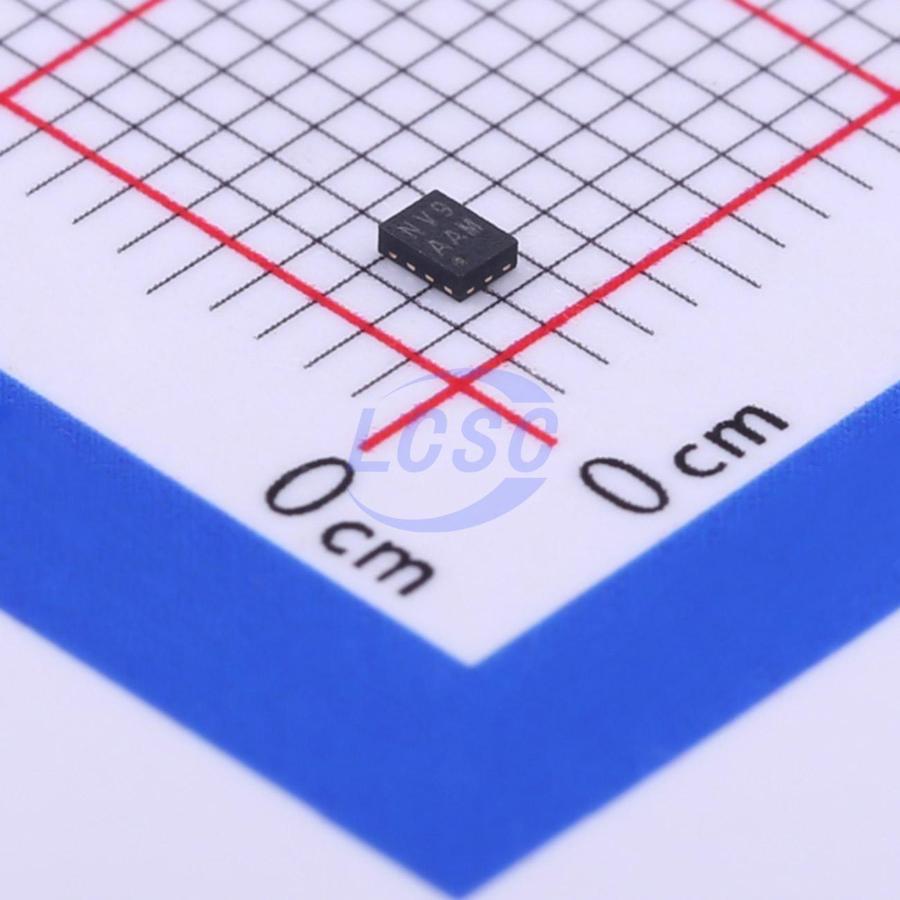

AW32901FCR
1 5A Active Low Load Switch FCQFN-12(1.3x1.8) Power Distribution Switches, Load Drivers RoHS
FCQFN-12(1.3x1.8)ROHS CompliantActive
Over-Voltage Protection Load Switch with Surge Protection
- Manufacturer
- AWINIC(Shanghai Awinic Tech)
- Manufacturer part #
- AW32901FCR
- Store part #
- C407920
- Package / case
- FCQFN-12(1.3x1.8)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,765 in stock
#C407920
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.82 | ₹259.10 |
| 50+ | ₹41.26 | ₹2,063.00 |
| 150+ | ₹36.74 | ₹5,511.00 |
| 500+ | ₹31.09 | ₹15,545.00 |
| 3,000+ | ₹27.12 | ₹81,360.00 |
| 6,000+ | ₹25.61 | ₹1,53,660.00 |
5 × ₹51.82
₹259.10
excl. GST
₹305.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AW32901FCR
₹259.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overvoltage protection;Over temperature protection;Under-voltage lockout;Output discharge function;Integrated charge pump
- number of channels
- 1
- Maximum Continuous Current
- 5A
- Control Input Logic
- Active Low
- RDS(on)
- 27mΩ
- Operating Voltage
- 3V~28V
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.013 g
Overview
The AW329xx series overvoltage protection (OVP) load switches feature surge protection, with an internal clamp circuit that protects devices from surge voltages up to 120V. The AW329xx features an ultra-low 27mΩ (typical) Rdson nFET load switch. When the input voltage exceeds the OVP threshold, the switch turns off very rapidly to prevent damage to downstream protected devices. The IN pin can withstand fault voltages up to 29VDC. The default OVP thresholds are 5.95V (AW32901), 6.2V (AW32902), 6.8V (AW32905), 9.98V (AW32909), 10.5V (AW32910), and 14V (AW32912); the OVP threshold can be adjusted from 4V to 20V via the external OVLO pin. The device features an open-drain output ACOK, which is pulled low to indicate a good power input when N_UVLO < N < N_OVLO and the switch is on; otherwise it remains in a high-impedance state. The device also incorporates overtemperature protection to prevent damage from excessive temperatures. The AW329xx is available in a RoHS-compliant 1.3mm x 1.8mm FCQFN-12 package.
Applications
- Smartphones
- Tablets
- Charging ports
