AWINIC(Shanghai Awinic Tech)

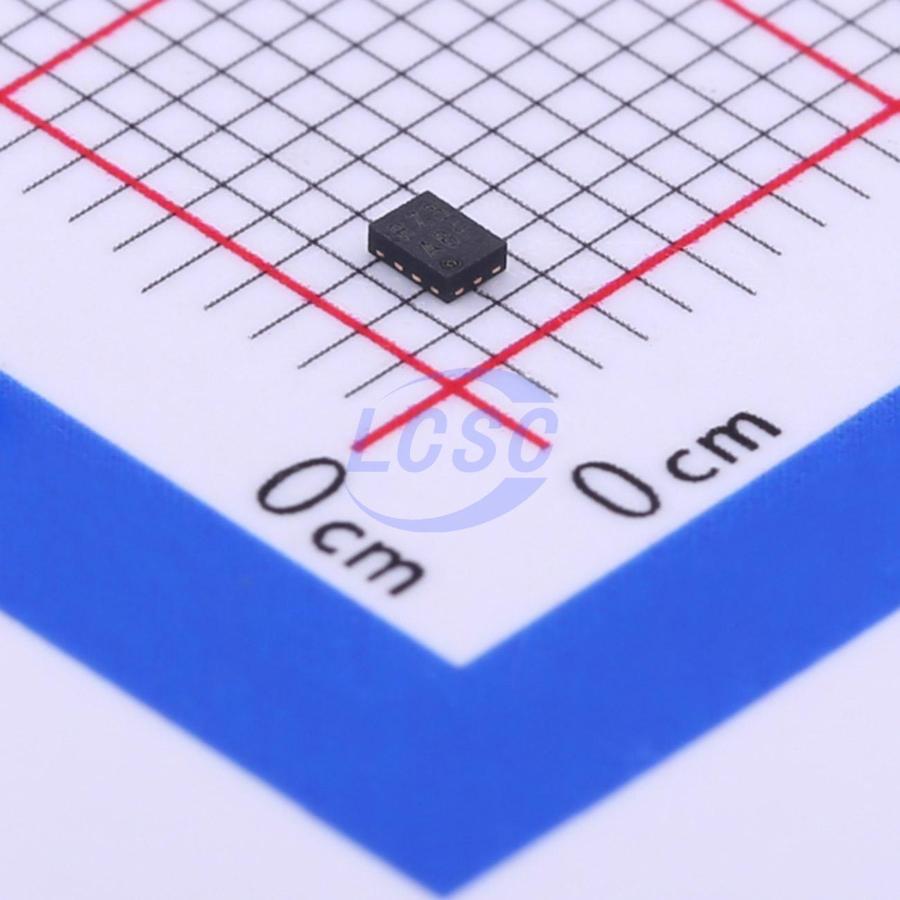

AW32905FCR

1 5A Active Low Load Switch FCQFN-12(1.3x1.8) Power Distribution Switches, Load Drivers RoHS

FCQFN-12(1.3x1.8)ROHS CompliantActive

Over-Voltage Protection Load Switch with Surge Protection

Manufacturer: AWINIC(Shanghai Awinic Tech)
Manufacturer part #: AW32905FCR
Store part #: C401023
Package / case: FCQFN-12(1.3x1.8)
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,210 in stock

#C401023

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹31.67	₹158.35
50+	₹25.15	₹1,257.50
150+	₹22.36	₹3,354.00
500+	₹18.87	₹9,435.00
3,000+	₹16.75	₹50,250.00
6,000+	₹15.81	₹94,860.00

Quantity (min 5, multiples of 5)

5 × ₹31.67

₹158.35

excl. GST

₹186.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AW32905FCR

₹158.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Features: Overcurrent Protection;Overvoltage protection;Over temperature protection;Under-voltage lockout;Output discharge function;Integrated charge pump
number of channels: 1
Maximum Continuous Current: 5A
Control Input Logic: Active Low
RDS(on): 27mΩ
Operating Voltage: 3V~28V
Type: Load Switch

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.013 g

Overview

The AW329xx family OVP load switch features surge protection, an internal clamp circuit protects the device from surge voltages up to 120V. The AW329xx features an ultra-low 27mΩ (typ.) Rdson nFET load switch. When input voltage exceeds the OVP threshold, the switch is turned off very fast to prevent damage to the protected downstream devices. The IN pin is capable of withstanding fault voltages up to 29VDC. The default OVP threshold is 5.95V (AW32901), 6.2V (AW32902), 6.8V (AW32905), 9.98V (AW32909), 10.5V (AW32910) and 14V (AW32912), the OVP threshold can be adjusted from 4V to 20V through external OVLO pin. The device features an open-drain output ACOK (overline), when the absolute value of N_UVLO is less than the absolute value of N which is less than the absolute value of N_OVLO and the switch is on, ACOK (overline) will be driven low to indicate a good power input, otherwise it is high impedance. This device features over-temperature protection that prevents itself from thermal damaging. The AW329xx is available in a RoHS compliant 1.3mm×1.8mm FCQFN-12 package.

Applications

Smartphones
Tablets
Charging Ports

Key features

Highly reliable 1.3mm × 1.8mm FCQFN-12 package
Surge protection V IEC 61000-4-5: > 120V
Integrated low Rdson nFET switch: typical 27mΩ
5A continuous current capability
Default Over-Voltage Protection (OVP) threshold AW32901: 5.95V AW32902: 6.2V AW32905: 6.8V AW32909: 9.98V AW32910: 10.5V AW32912: 14V
OVP threshold adjustable range: 4V to 20V
Input system ESD protection IEC 61000-4-2 Contact discharge: ±8kV
V IEC 61000-4-2 Air gap discharge: ±15kV
Input maximum voltage rating: 29VDC
Fast turn-off response: typical 50ns
Over-Temperature Protection (OTP)
Under-Voltage Lockout (UVLO)
