ROHMDatasheet (PDF)

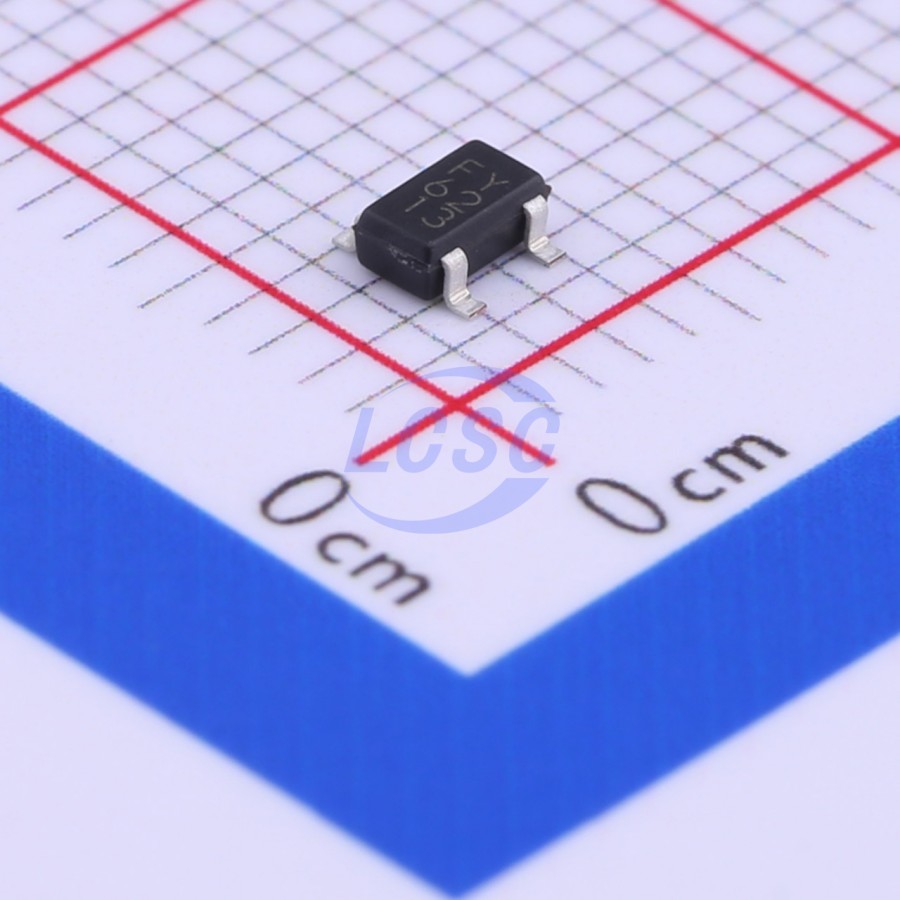

BD2226G-TR
1 Active High 1.35A High Side Switch SSOP-5-1.6mm Power Distribution Switches, Load Drivers RoHS
SSOP-5-1.6mmROHS3 CompliantActive
1-Channel Compact High-Side Switch IC
- Manufacturer
- ROHM
- Manufacturer part #
- BD2226G-TR
- Store part #
- C308587
- Package / case
- SSOP-5-1.6mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C308587
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.79 | ₹228.95 |
| 50+ | ₹36.49 | ₹1,824.50 |
| 150+ | ₹32.51 | ₹4,876.50 |
| 500+ | ₹27.53 | ₹13,765.00 |
| 3,000+ | ₹25.32 | ₹75,960.00 |
| 6,000+ | ₹23.99 | ₹1,43,940.00 |
5 × ₹45.79
₹228.95
excl. GST
₹270.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD2226G-TR
₹228.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Over temperature protection;Under-voltage lockout;Soft-start
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 1.35A
- RDS(on)
- 150mΩ
- Operating Voltage
- 2.7V~5.5V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
BD2226G and BD2227G are low ON-Resistance N-Channel MOSFET high-side power switches, optimized for Universal Serial Bus (USB) applications. BD2226G and BD2227G are equipped with the function of over-current detection, thermal shutdown, under-voltage lockout and soft-start.
Applications
- USB hub in consumer appliances
- PC
- PC peripheral equipment
Key features
- Over-Current Detection
- Thermal Shutdown Open-Drain Fault Flag Output
- Flag Output Delay
- Under-Voltage Lockout
- Soft-Start Circuit Control Input Logic
- Active-High (BD2226G)
- Active-Low (BD2227G)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP2191WG-7#C141321DIODES · SOT-25-5 | DIODES | SOT-25-5 | 155 | ₹36.86 · 155 in stock | View |
 | AP2191DWG-7#C141332DIODES · SOT-25-5 | DIODES | SOT-25-5 | 1,776 | ₹53.40 · 1,776 in stock | View |
 | AP2191AW-7#C5290221DIODES · SOT-25 | DIODES | SOT-25 | 385 | ₹39.12 · 385 in stock | View |
 | NCT3521U#C249427NUVOTON · SOT-23-5 | NUVOTON | SOT-23-5 | 92 | ₹45.60 · 92 in stock | View |
 | RT9724GB#C3235529RICHTEK · SOT-23-5 | RICHTEK | SOT-23-5 | 4 | ₹40.35 · 4 in stock | View |
