HXY MOSFETDatasheet (PDF)

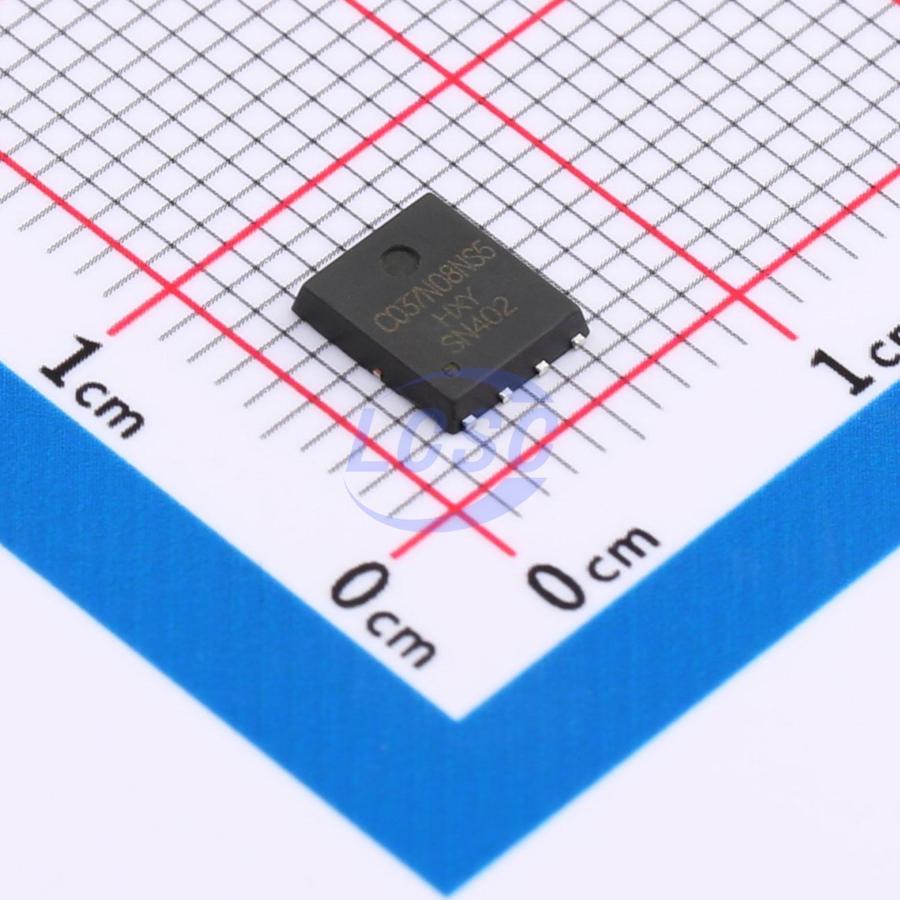

BSC037N08NS5-HXY
N-Channel 85V 100A 107.8W Surface Mount DFN5x6-8L
DFN5x6-8LRoHSActive
MOSFET N-CH 85V 100A DFN5x6-8L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- BSC037N08NS5-HXY
- Store part #
- C22366992
- Package / case
- DFN5x6-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
71 in stock
#C22366992
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹147.37 | ₹147.37 |
| 10+ | ₹123.16 | ₹1,231.60 |
| 30+ | ₹109.98 | ₹3,299.40 |
| 100+ | ₹95.07 | ₹9,507.00 |
| 500+ | ₹88.59 | ₹44,295.00 |
| 1,000+ | ₹85.57 | ₹85,570.00 |
1 × ₹147.37
₹147.37
excl. GST
₹173.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC037N08NS5-HXY
₹147.37 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 85V
- Output Capacitance(Coss)
- 673pF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 4.645nF
- Pd - Power Dissipation
- 107.8W
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 5.6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 61.3nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
