HXY MOSFETDatasheet (PDF)

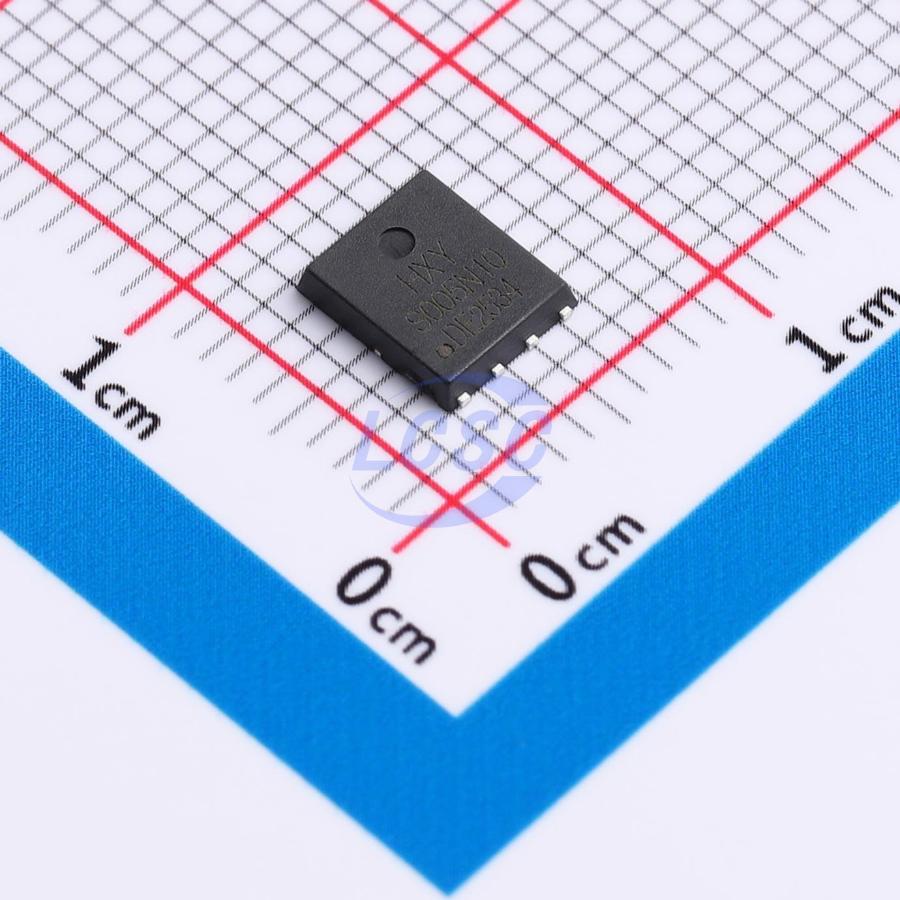

NTMFS005N10MCLT1G-HXY
107.8W 85V 100A 4.3mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NTMFS005N10MCLT1G-HXY
- Store part #
- C51949333
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C51949333
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹161.41 | ₹161.41 |
| 10+ | ₹138.07 | ₹1,380.70 |
| 30+ | ₹125.33 | ₹3,759.90 |
| 100+ | ₹110.85 | ₹11,085.00 |
| 500+ | ₹94.65 | ₹47,325.00 |
| 1,000+ | ₹91.83 | ₹91,830.00 |
1 × ₹161.41
₹161.41
excl. GST
₹190.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NTMFS005N10MCLT1G-HXY
₹161.41 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 673pF
- Ciss-Input Capacitance
- 4.645nF
- Pd - Power Dissipation
- 107.8W
- Drain to Source Voltage
- 85V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 4.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 61.3nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.155 g
Overview
The NTMFS005N10MCLT1G utilizes advanced SGT MOSFET technology to achieve low on-resistance RDS(ON), low gate charge, fast switching, and excellent avalanche characteristics. The device is specifically designed for enhanced durability and versatility.
Applications
- Consumer electronics power supplies
- Motor control
- Synchronous rectification
- Isolated DC
- Synchronous rectification applications
Key features
- Drain-source voltage VDS = 85 V, drain current ID = 100 A
- On-resistance RDS(ON) < 5.6 mΩ at gate-source voltage VGS = 10 V
