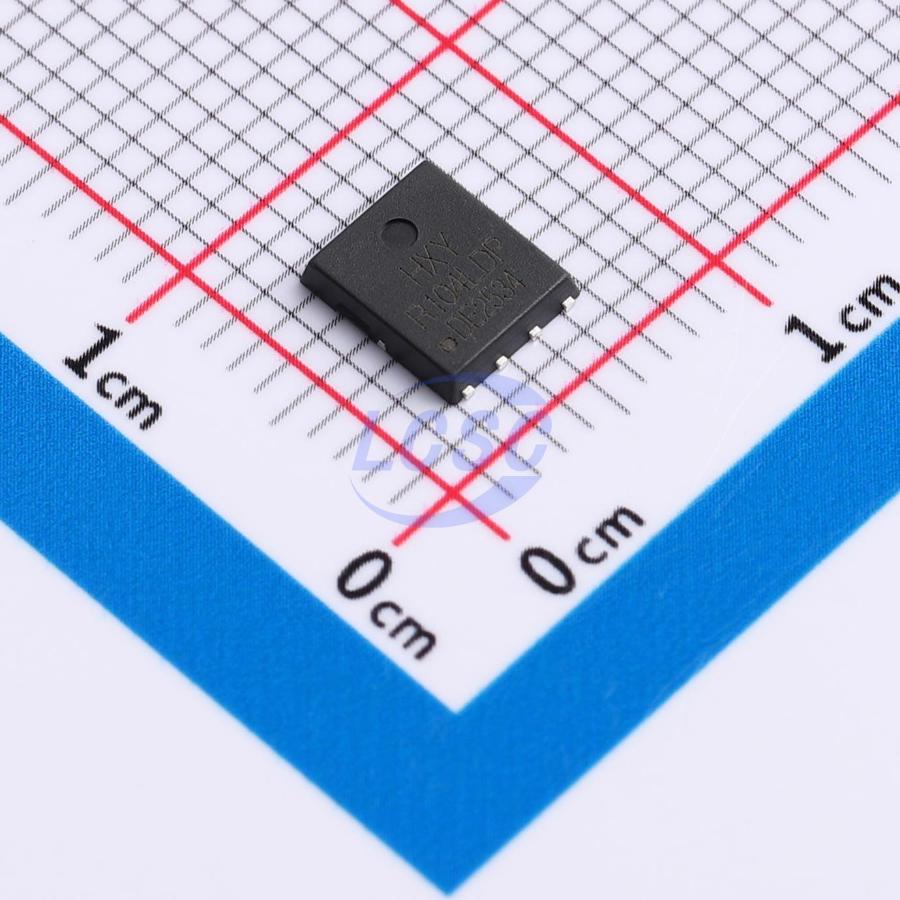

HXY MOSFETDatasheet (PDF)
SIR104LDP-T1-RE3-HXY
107.8W 85V 100A 4.3mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SIR104LDP-T1-RE3-HXY
- Store part #
- C51949335
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C51949335
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹180.84 | ₹180.84 |
| 10+ | ₹152.28 | ₹1,522.80 |
| 30+ | ₹136.60 | ₹4,098.00 |
| 100+ | ₹118.78 | ₹11,878.00 |
| 500+ | ₹111.04 | ₹55,520.00 |
| 1,000+ | ₹107.39 | ₹1,07,390.00 |
1 × ₹180.84
₹180.84
excl. GST
₹213.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SIR104LDP-T1-RE3-HXY
₹180.84 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 673pF
- Ciss-Input Capacitance
- 4.645nF
- Pd - Power Dissipation
- 107.8W
- Drain to Source Voltage
- 85V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 4.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 61.3nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.149 g
Overview
The SIR104LDP-T1-RE3 employs advanced SGT MOSFET technology to achieve low on-resistance RDS(ON), low gate charge, fast switching, and excellent avalanche characteristics. The device is specifically designed for enhanced durability and versatility.
Applications
- Consumer electronics power supplies
- Motor control
- Synchronous rectification
- Isolated DC synchronous rectification applications
Key features
- Drain-source voltage VDS = 85 V, drain current ID = 100 A
- On-resistance RDS(ON) < 5.6 mΩ at gate-source voltage VGS = 10 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTMFS005N10MCLT1G-HXY#C51949333HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 47 | ₹161.41 · 47 in stock | View |
 | BSC050N10NS5-HXY#C51949339HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 18 | ₹151.63 · 18 in stock | View |
 | NVMFS6B05NLT1G-HXY#C51949360HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 101 | ₹129.30 · 101 in stock | View |
 | BSC037N08NS5-HXY#C22366992HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 71 | ₹147.37 · 71 in stock | View |
 | NTMFSC4D2N10MC-HXY#C51949334HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 77 | ₹417.09 · 77 in stock | View |
