VBsemi ElecDatasheet (PDF)

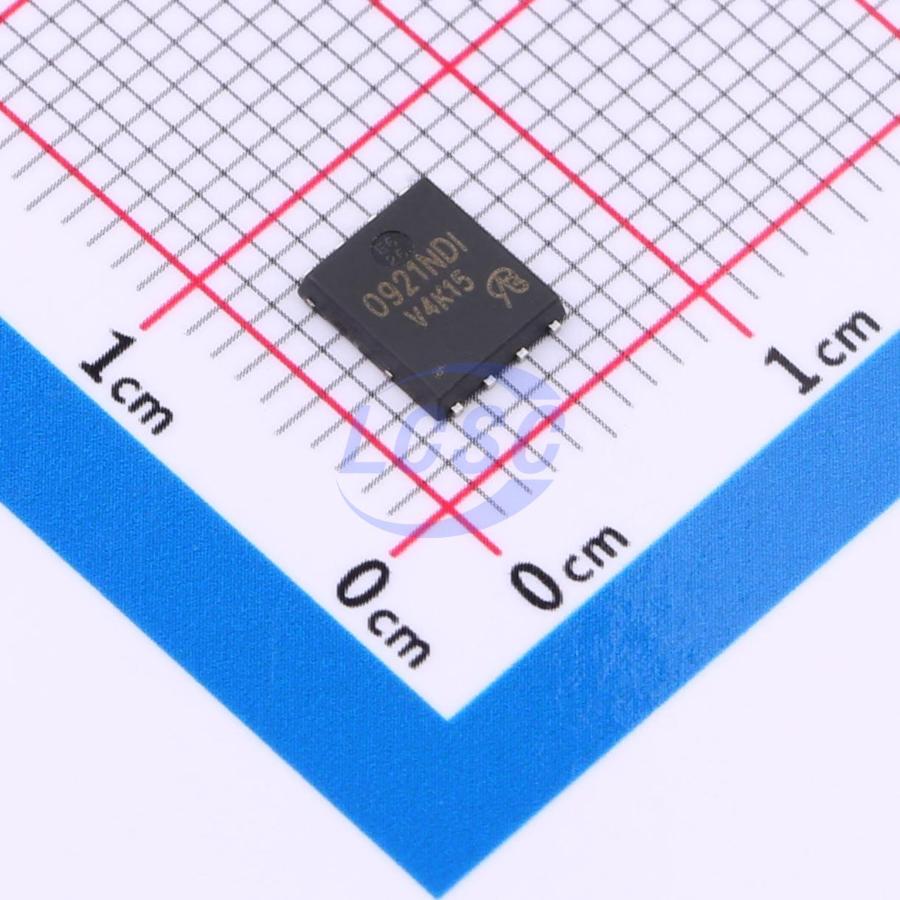

BSC0921NDI-VB
N-Channel 30V 60A 56W Surface Mount DFN5x6-8
DFN5x6-8RoHSActive
MOSFET N-CH 30V 60A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BSC0921NDI-VB
- Store part #
- C42428232
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C42428232
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹173.72 | ₹173.72 |
| 10+ | ₹148.69 | ₹1,486.90 |
| 30+ | ₹136.28 | ₹4,088.40 |
| 100+ | ₹123.87 | ₹12,387.00 |
| 500+ | ₹75.98 | ₹37,990.00 |
| 1,000+ | ₹72.28 | ₹72,280.00 |
1 × ₹173.72
₹173.72
excl. GST
₹204.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSC0921NDI-VB
₹173.72 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 257pF
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 56W
- Reverse Transfer Capacitance (Crss)
- 155pF
- RDS(on)
- 4.3mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 17nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.39 g
Overview
CMSA160N10 adopts advanced SGT technology to deliver excellent RDS(ON). The device is ideally suited for boost converters and synchronous rectifiers in consumer, telecommunications, industrial power, and LED backlight applications.
Applications
- Set Top Box
- Low Current DC/DC
Key features
- Halogen-free According to IEC 61249-2-2 Definition
- Trench Power MOSFET
- 100 % UIS Tested 100 % Rg Tested Compliant to RoHS Directive 2002/95/EC
