VBsemi ElecDatasheet (PDF)

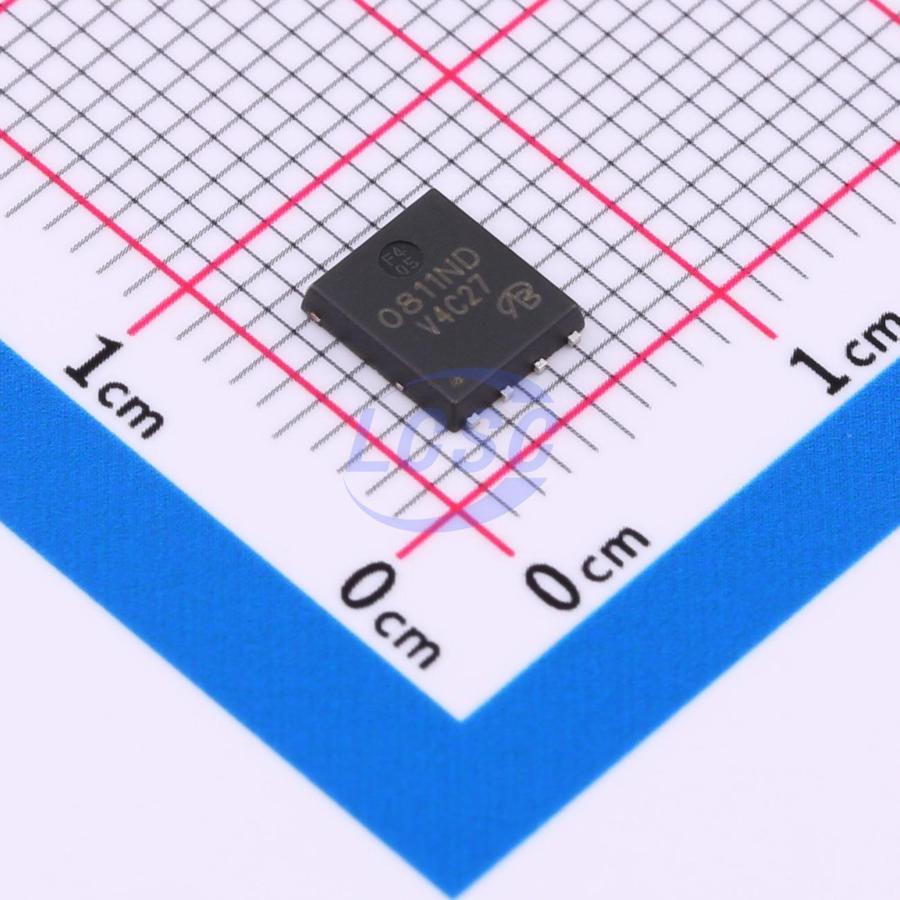

BSG0811NDATMA1-VB
N-Channel 30V 60A 56W Surface Mount DFN5x6-8
DFN5x6-8RoHSActive
MOSFET N-CH 30V 60A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- BSG0811NDATMA1-VB
- Store part #
- C22395961
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C22395961
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹147.61 | ₹147.61 |
| 10+ | ₹122.56 | ₹1,225.60 |
| 30+ | ₹110.15 | ₹3,304.50 |
| 100+ | ₹97.76 | ₹9,776.00 |
| 500+ | ₹75.98 | ₹37,990.00 |
| 1,000+ | ₹72.28 | ₹72,280.00 |
1 × ₹147.61
₹147.61
excl. GST
₹174.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BSG0811NDATMA1-VB
₹147.61 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 257pF
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 56W
- Reverse Transfer Capacitance (Crss)
- 155pF
- RDS(on)
- 4.3mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 17nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
Applications
- Set Top Box Low Current DC/DC
Key features
- Halogen-free According to IEC 61249-2-21 Definition
- TrenchFET Power MOSFET
- 100 % UIS Tested
- 100 % Rg Tested
- Compliant to RoHS Directive 2002/95/EC
- RoHS COMPLIANT
- HALOGEN FREE
